Indoor front access LED display screen: No need go inside sign to suffer heat torturing now!
Indoor high resolution, high precision and seamless split/joint, Smart structure design and long time proven technology.
Product Features
Easy and fast lock/unlock: Only takes 5 seconds to dismantled and assembled (replaced) one module by a small tool.
Convenient installation: Light weight, and the cabinet structure enable to hang mount on the wall or lifting rely on the wall with simple installation accessories.
Front removable: Front service design, each module of the screen can be easily removed from front side. It is particularly suitable for LED Ceiling Display.
Safe and quick service: When the module needs maintenance, don’t need to climb to the high or suffer heat torturing.
Seamless split/joint: High precision and standard module size 320mmX320mm, makes the screen has good flatness and seamless.

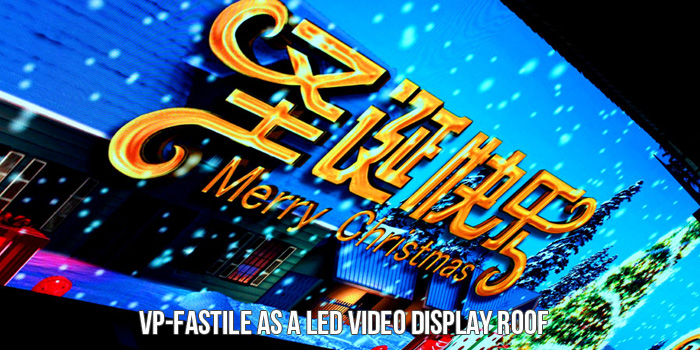

Display Effect
LED Parameters
|
Item
|
Luminous Intensity
|
Viewing Angle(H/V)
|
Wavelength
|
Test Condition
|
|
|
Red LED
|
800-900mcd
|
110°/110°
|
620-630nm
|
25°C, 20mA
|
|
Green LED
|
1400-1800mcd
|
110°/110°
|
520-535nm
|
25°C, 20mA
|
|
Blue LED
|
250-400mcd
|
110°/110°
|
465-475nm
|
25°C, 20mA
|

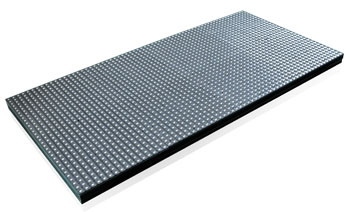

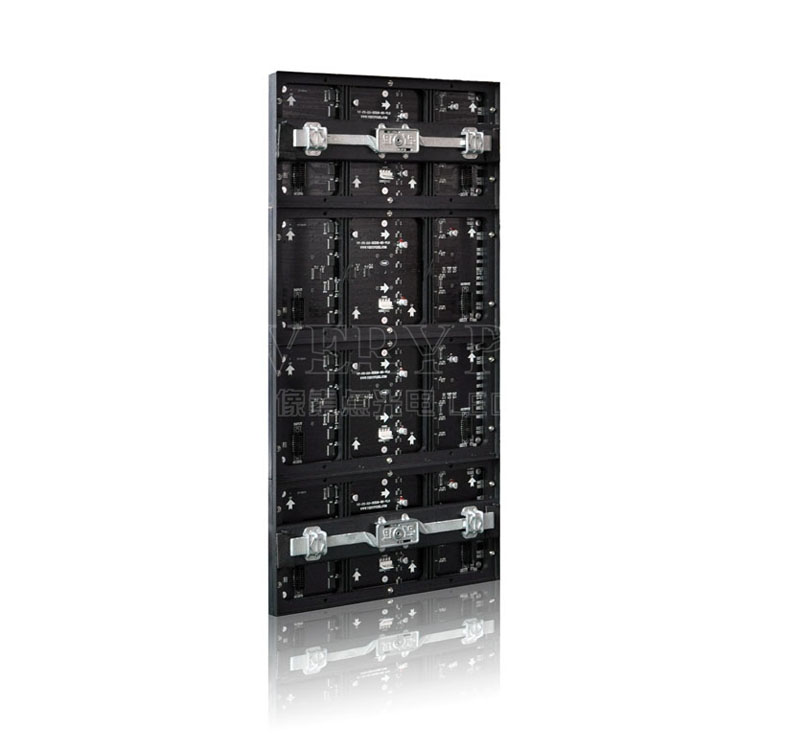

Module Parameters
|
Pixel Pitch
|
10mm
|
|
|
Pixel Configuration
|
SMD 3535
|
|
Module Resolution
|
32dots*64dots for real
|
|
Module Pixels
|
2048 dots
|
|
Module Size
|
320mm*640mm
|
|
Module Weight
|
3.4KG
|

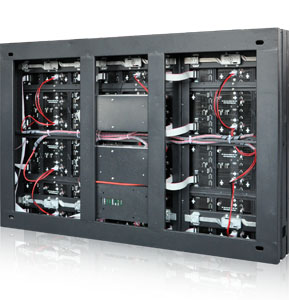

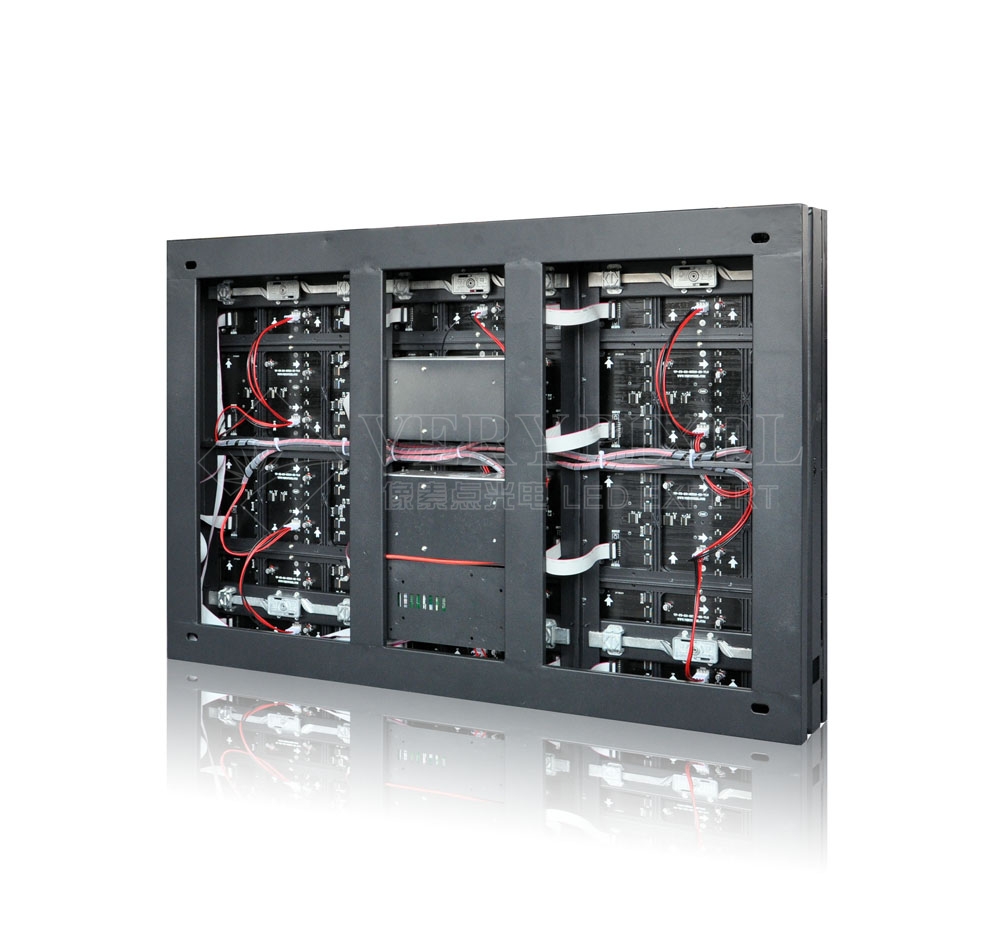

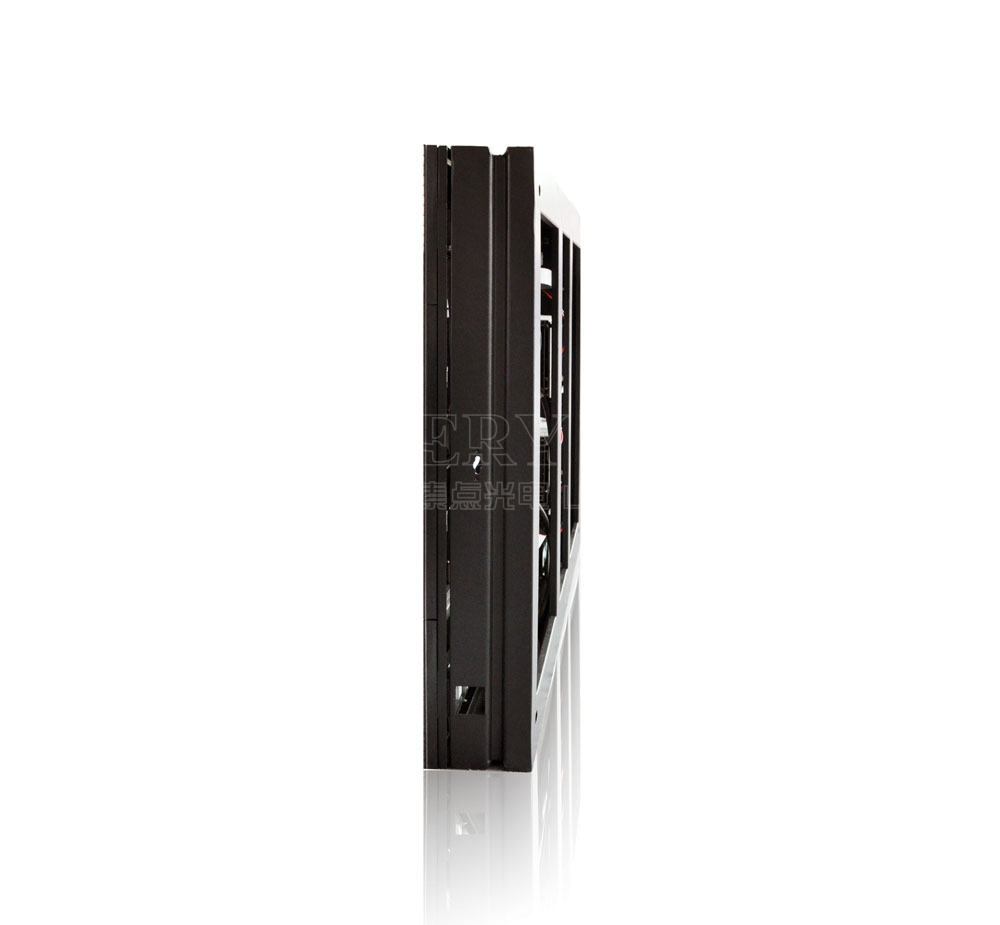

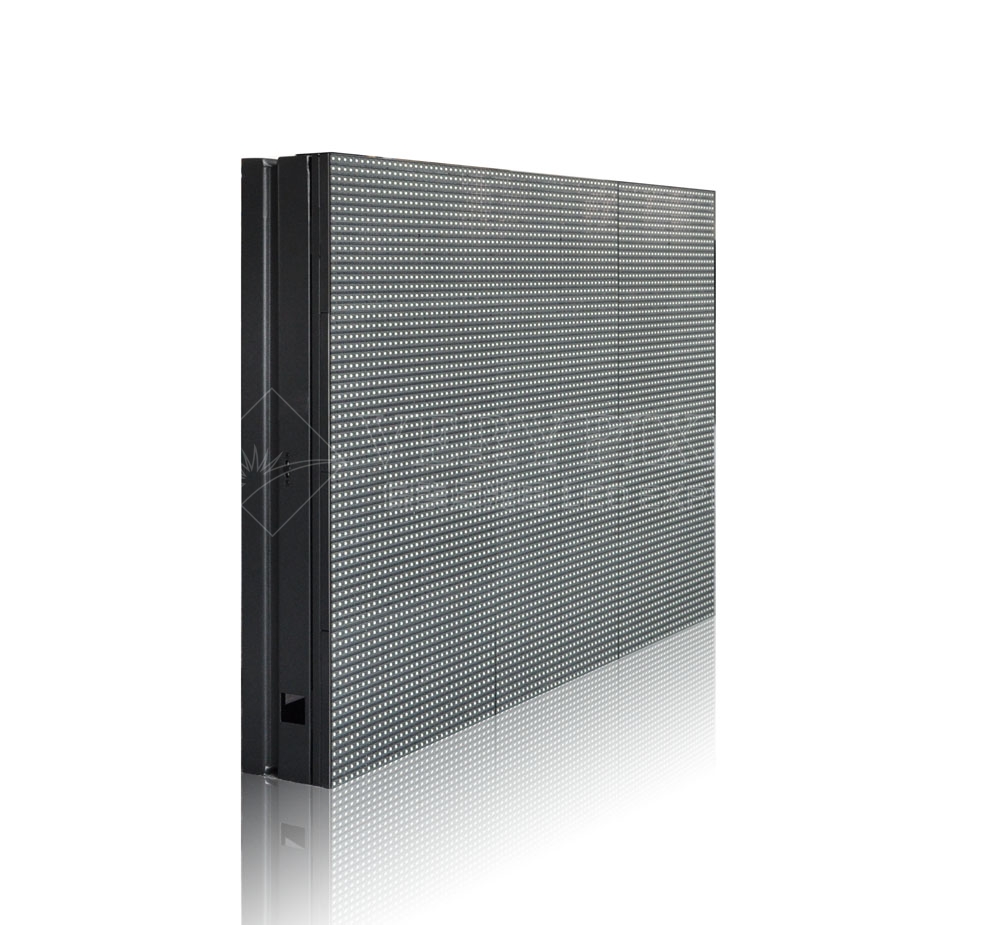

Cabinet Parameters
|
Cabinet Size(W*H*D)
|
960*640*100(mm) or customizable
|
|
|
Cabinet Resolution
|
96dot*64dot for real
|
|
Module Quantity
|
3 pcs
|
|
Cabinet Pixels
|
6144 dots
|
|
Pixel Density
|
10000 dot/sqm
|
|
Avg. Power Consumption
|
180W/sqm
|
|
Max. Power Consumption
|
550W/sqm
|
|
Material
|
Iron or Aluminum
|
|
Cabinet Weight
|
20KG for iron cabinet;
14KG for aluminum cabinet
|
Screen Parameters
|
Brightness
|
1400 to 2000cd/sqm
|
|
Contrasts (Max. /Min.)
|
1.1:1
|
|
Driving Method
|
Static
|
|
View Angle
|
Horizontal 110° Vertical 110°
|
|
Optimal Viewing Distance
|
10-200m
|
|
Brightness Control
|
Red, Green and Blue 256 Grade/Each
|
|
Fresh Frequency
|
≥600Hz
|
|
Frame Frequency
|
50 - 60Hz
|
|
Input Voltage
|
AC220V/50Hz or AC110V/60Hz
|
|
Defects Rate
|
≤0.00001
|
|
Screen Weight
|
≤32kg/sqm for Iron cabinet /22kg/sqm for Aluminum cabinet
|
|
MTBF
|
>10,000 hours
|
|
Life Span
|
≥100,000 hours
|
|
Brightness Uniformity
|
<3%
|
|
Earth Leakage Current
|
<3mA
|
|
Protective Grade
|
IP45
|
|
Temperature-operating
|
-40°C to 60°C
|
|
Humidity-operating
|
10% to 90%
|
|
Operating System
|
Windows98/me/2000/NT/XP/win7
|
