• VP-PAD HD Series
  • Type:Rental LED Display
  • Model:VP-PAD Indoor HD Series
  • Hits:11515
  • Available applications:
    Indoor rental, information display
    stage background and so on.

Tag: indoor rental HD LED video wall,Die-casting Cabinet LED display indoor,HD LED Display indoor

Product Features





>> Over 2880Hz refresh rate to ensure the picture wrinkle-less, line-less and Stable
>> Combined with the top LED design, the black mask processing technology can greatly boost the display contrast ratio.
>> The leading dot-by-dot calibration technology for brightness and chrominance makes the chrominance difference less than 0.3% and brightness difference less than 1%.
>> Combined with the brightness auto-adjusting technology and PFC power supply, low current can save energy by over 35%.
>> The aluminum die-casting technology makes a single cabinet as light as 8.5KG for convenient assembly and transportation.
>> Exquisite and clear picture quality with no ghost. Both upstream and downstream ghosts can be automatically canceled.
>> The aluminum structure requires no fan, making the cabinet noiseless.

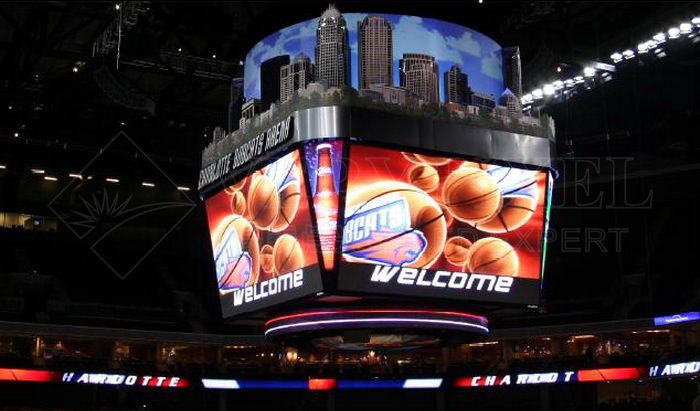

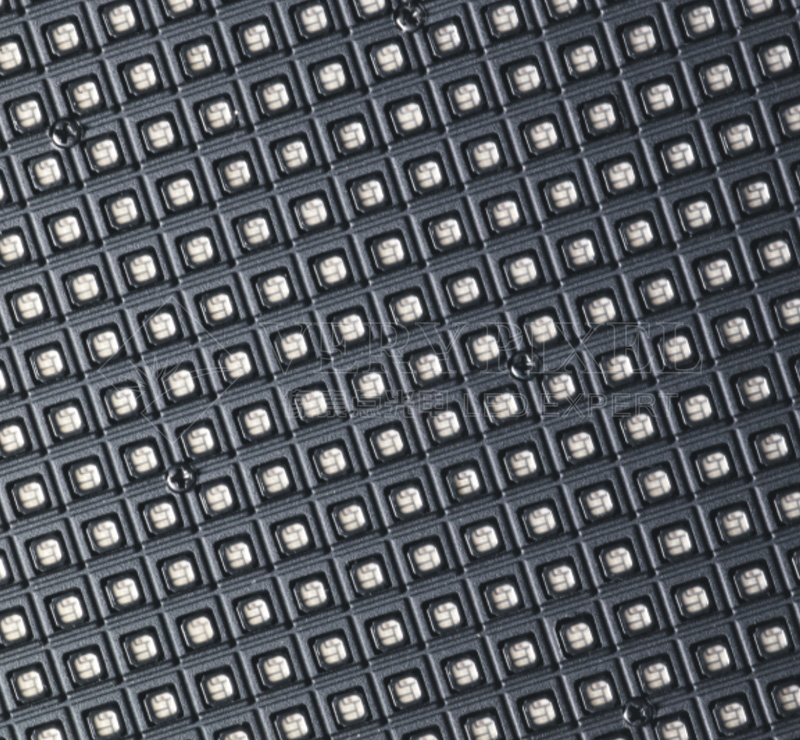

Display effect

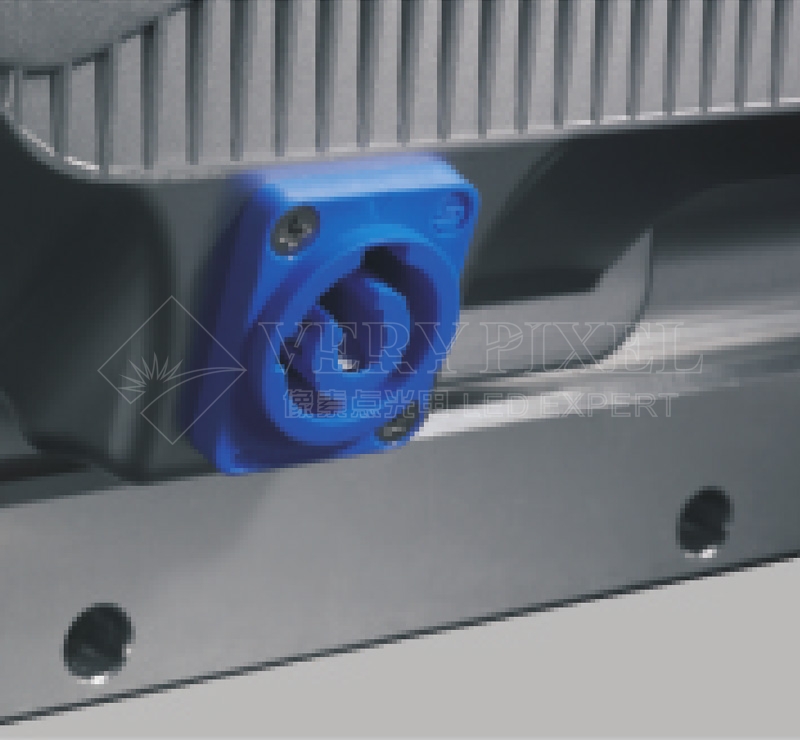

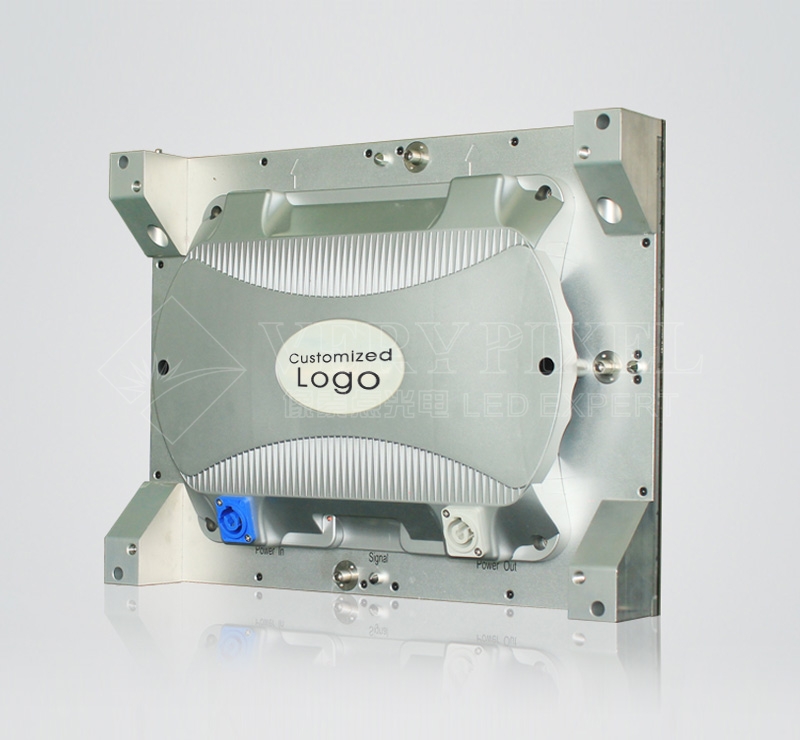

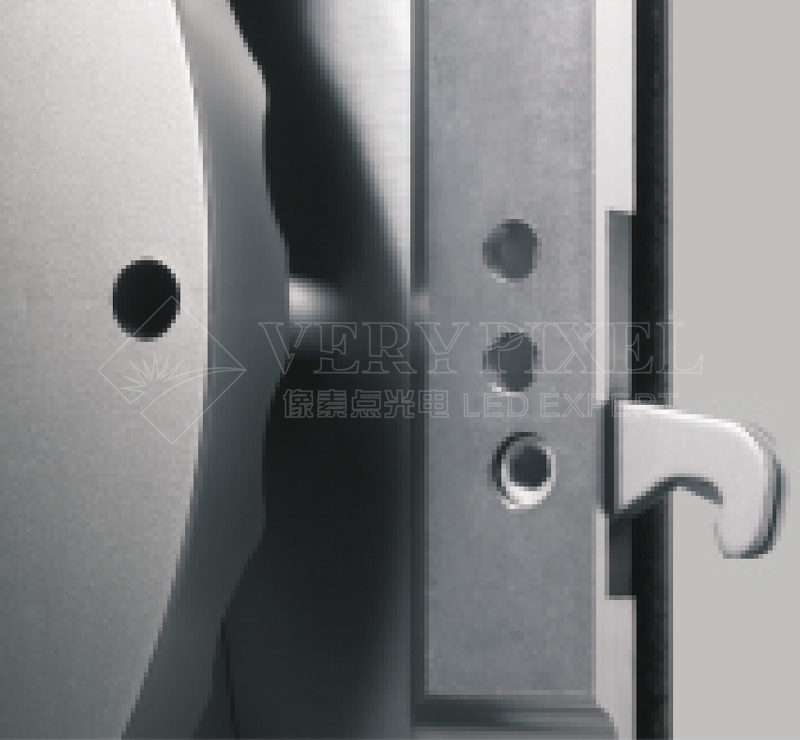

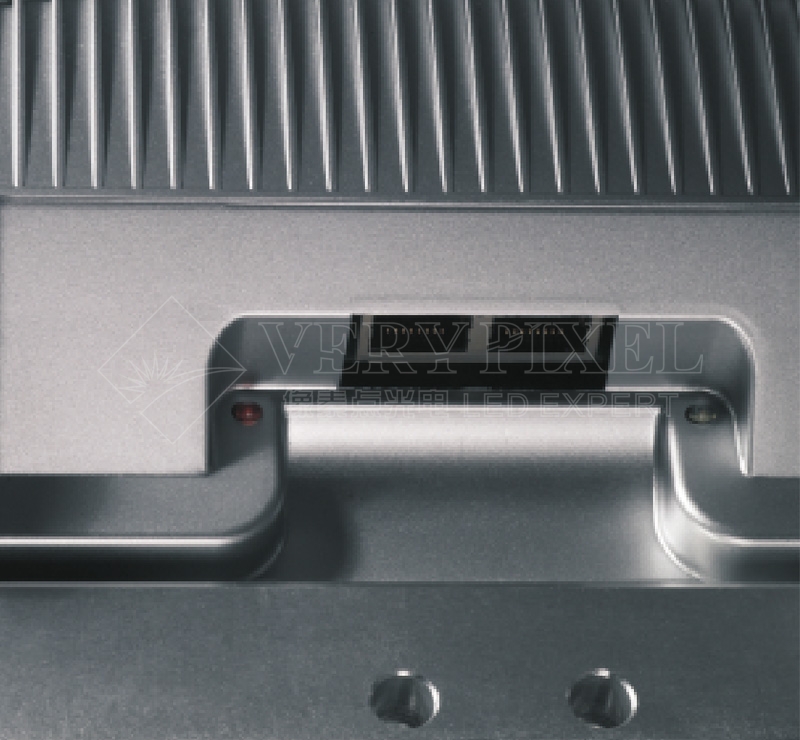

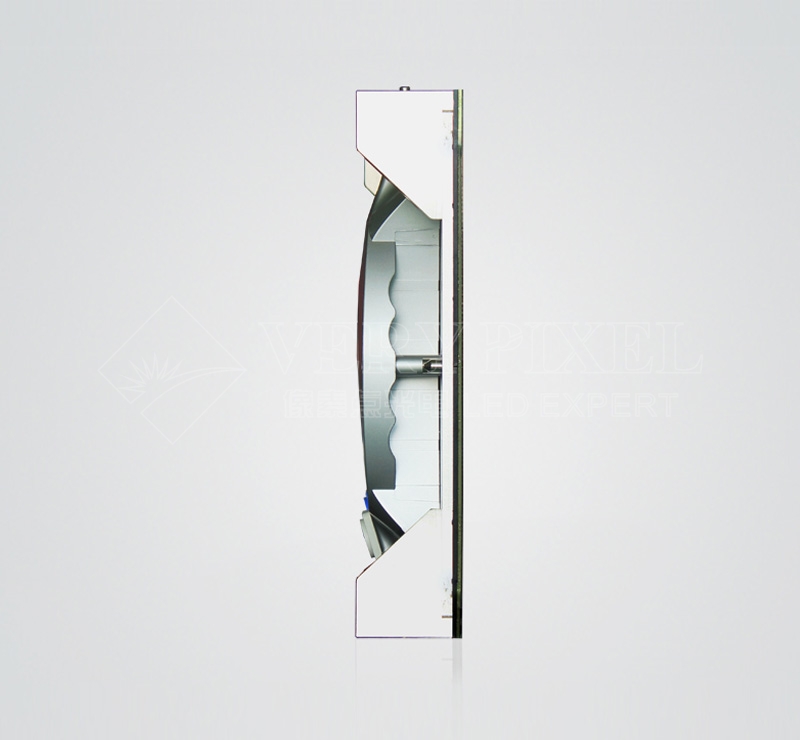

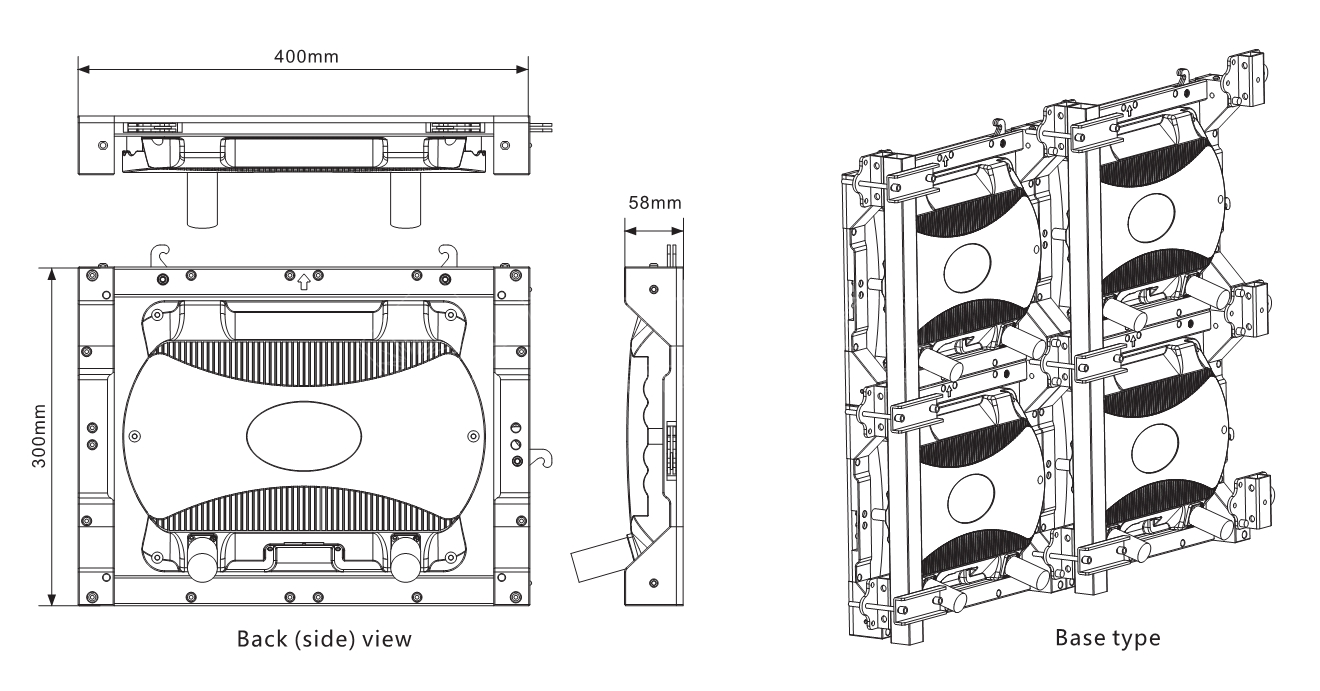

Cabinet Structure

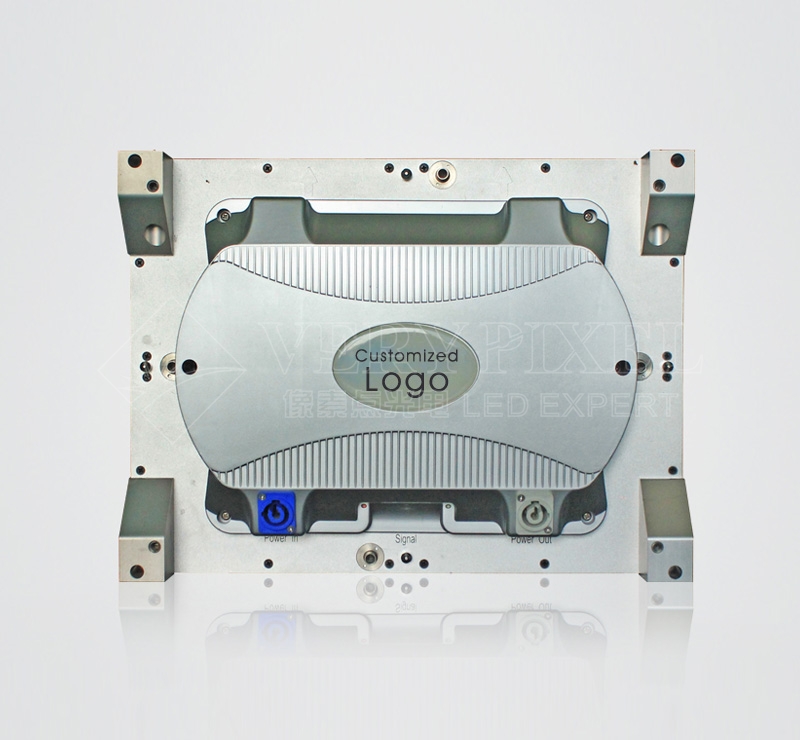

indoor high-end die-casting led display

led rental screen cabinet structure, high-end led die-casting cabinet


Product Parameters

 Items

 Parameter

 LED Encapsulation

 SMD 1514

 Pixel Pitch

 2.5mm

 Module Resolution(W*H)

 160*120

 Pixel Configuration

 1R1G1B(3 in1)

 Pixel Density

 160000 pixel/sqm

 Driving Method

 1/15 Scan

 Refresh Frequency

 >1920Hz(Supporting high refresh rate and depending on system configuration)

 Driving IC

 MY9266

 Grey Scale

 >14BIT(According to system and IC equipped)

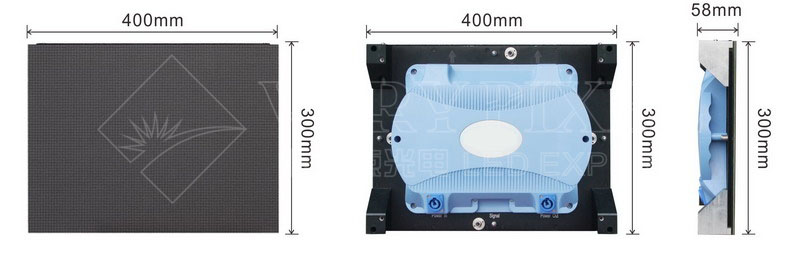

 Module Size

 400mm*300mm

 White Balance Brightness

 >900cd/sqm

 Color Temperature

 8000K ± 500(adjustable)

 Viewing  Angle

 Horizontal  Angle 140°     Vertical  Angle 120°

 Optimal Viewing Distance

 >3m

 Working Voltage

 AC 220V±10%

 Max Power Consumption

 80W/pcs(White Balance)

 Avg Power Consumption

 40W/pcs(Normal Working)

 Lifetime

 50000 Hours

 Operating Temperature

 -10°C to 50°C
