• VP-O12 outdoor full color 2R1G1B LED Display
  • Type:Outdoor Full Color Display
  • Model:VP-O12
  • Hits:8412
  • Available applications:
    Outdoor advertising, billboards
    rental business and so on.

    Project Case>>>



Tag: P12 outdoor full color 2R1G1B LED Display, P12 full color led billboards, P12 outdoor led screens, P12 full color led modules

VERYPIXEL is formed to explore and utilize LED technology to its full capability and versatility through divergent, energy saving techniques and devices. - We offer environmentally sustainable solutions to accommodate the growing need to use limited energy resources efficiently and to minimize environmental pollution caused during energy use. The company's headquarters are located in Hong Kong, with offices in China and America.

Product Features

Compare to new-born SMD LED display series, main advantages of DIP series are as follows
>> P12 outdoor full color 2R1G1B LED Display Giant display screen with strong visual impact, ultra-clear pictures, huge shock force, illustrate the strong charm of advertising. It is conducive to building and transmitting companies' brand image. Building small and medium-sized full color led display screen or moving message display in bustling roads, streets and communities to form a media network. Small LED display screen: strong communication penetration, wide Network coverage, directly access to consumer terminals, low investment, quick return, good propaganda effect.
>> Applications of LED display screen products Curve led display screen.
>> Perfect combination with the building, makes the building itself more perfect broader perspective, spread a wider range. Traffic led display screen advertising not striated by occasions, mobile communication and attracts more audience. Making advertising at a much higher level, novel broadcasting method, set grand new and efficient image of advertiser.



LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 300-500mcd 120º/60º 620-630nm 25℃,20mA
Green LED 1800-2200mcd 120º/60º 520-535nm 25℃,20mA
Blue LED 250-500mcd 120º/60º 465-475nm 25℃,20mA



Module Parameters

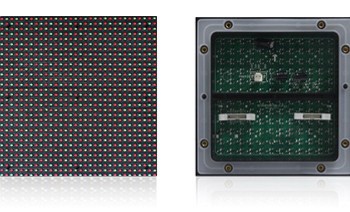

Pixel Pitch 12mm  P12 outdoor full color 2R1G1B LED module
Pixel Configuration 2R1G1B
Module Resolution 16dots*16dots for real
Module Pixels 256 dots
Module Size 192mm*192mm
Module Weight 1.15KG



Cabinet Parameters

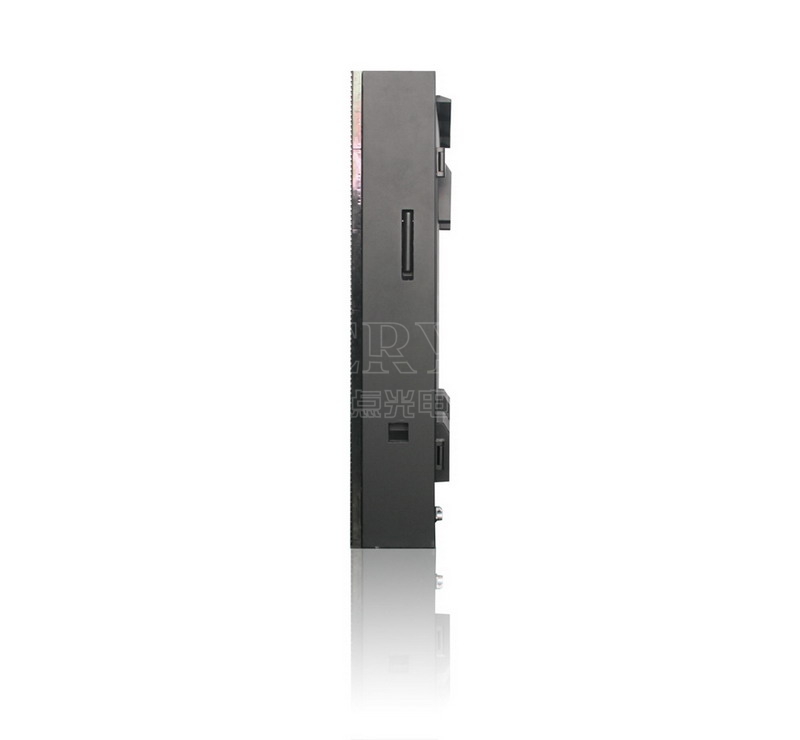

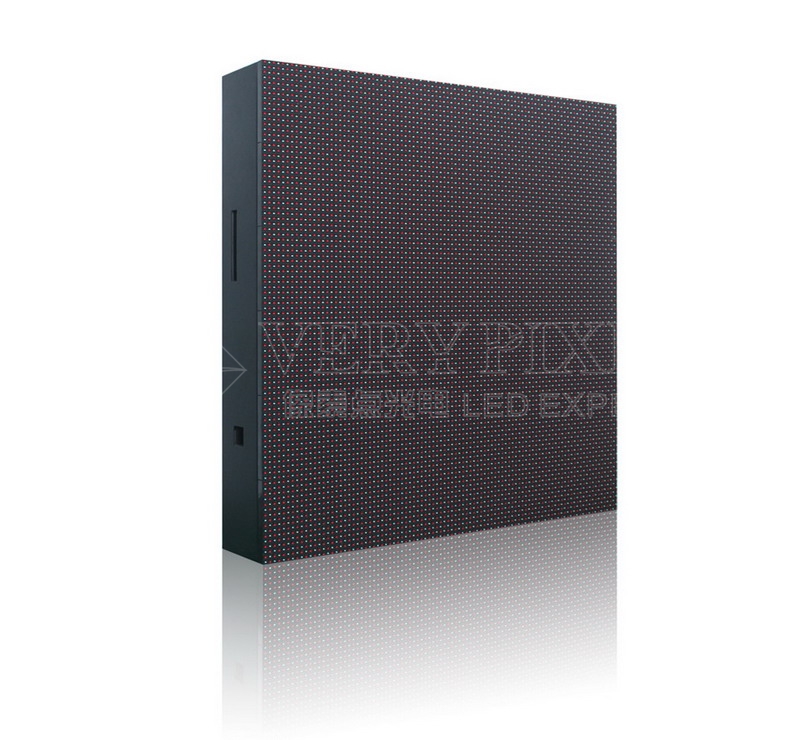

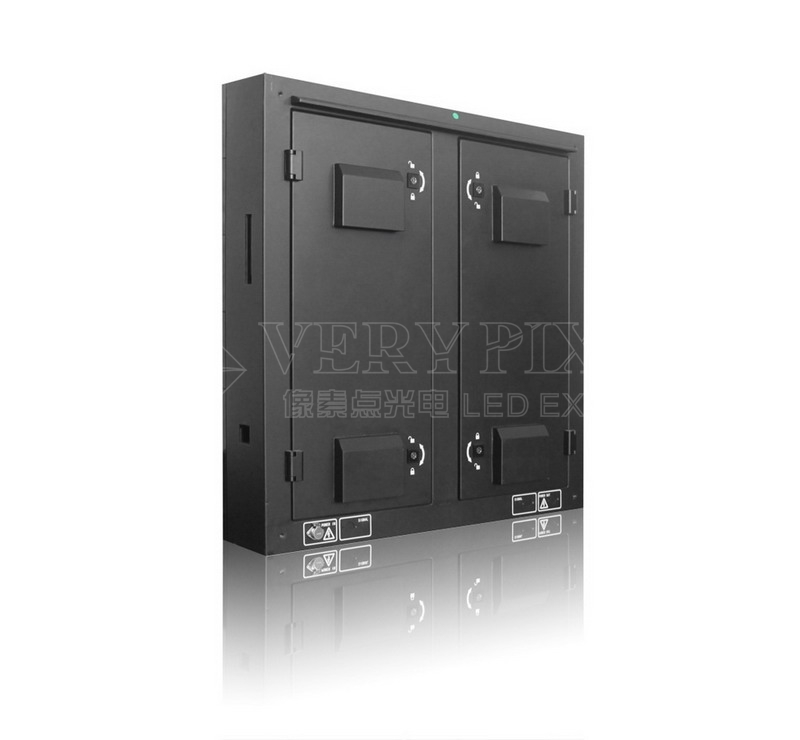

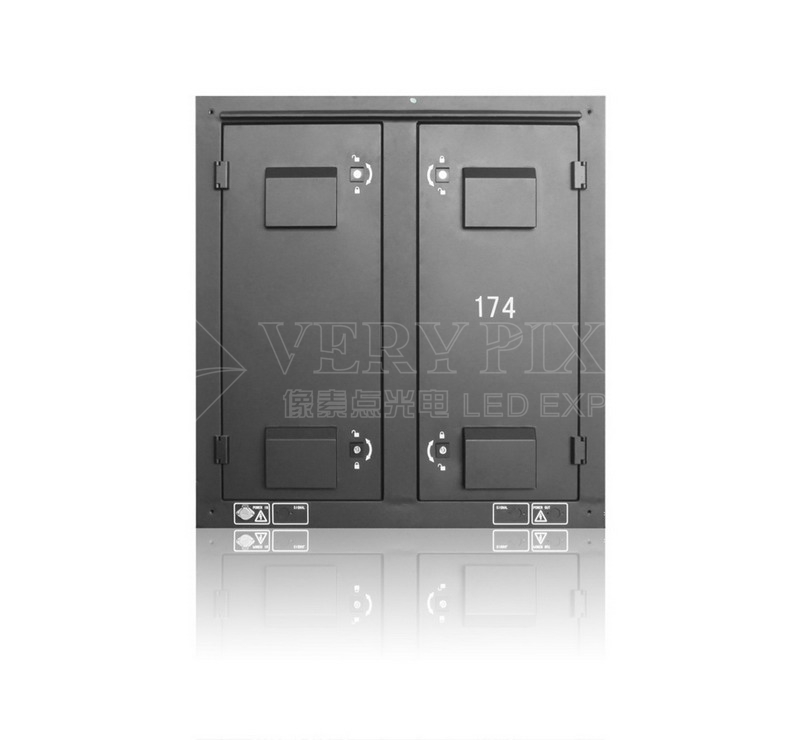

Cabinet Size(W*H*D) 768*768*160(mm)  P12 outdoor full color 2R1G1B LED Display
Cabinet Resolution 64dot*64dot for real
Module Quantity 16 pcs
Cabinet Pixels 4096 dots
Pixel Density 6944 dot/sqm
Avg. Power Consumption 250W/sqm
Max. Power Consumption 800W/sqm
Material Iron or Aluminum
Cabinet Weight 65KG for iron cabinet;
45KG for aluminum cabinet



Screen Parameters

Brightness ≥5500cd/sqm
Contrasts (Max. /Min.) 1.1:1
Driving Method Static
View Angle Horizontal 120° Vertical 60°
Optimal Viewing Distance 12m to 100m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥600Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤65kg/sqm for Iron cabinet /45kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP65
Temperature-operating ﹣40℃~60℃
Humidity-operating 10%~90%
Operating System  Windows98/me/2000/NT/XP/win7
