• PH1.923 HD Rental Displays
  • Type:Small Pitch LED Display
  • Model:VP-HD-I1.923
  • Hits:10720
  • Available applications:
    indoor advertising, HD video player

    rental business and so on.

    Project Case>>>

Tag: P1.923 HD LED Rental Display, small pitch PH1.923mm indoor LED video display, indoor small pitch LED TV


Product Features






high grayscale small pitch led display

large viewing angle small pitch HD led display


Ultra-high definition & refresh rate, Low brightness with high gray level, more delicate display performance
Truly seamless splicing technology, Multifunctional connecting piece, fast, simple and convenient
Die-casting Aluminum, light in weight but strong in quality
Extraordinary display performance, Ultra HD perfect picture quality, exclusive visual feast

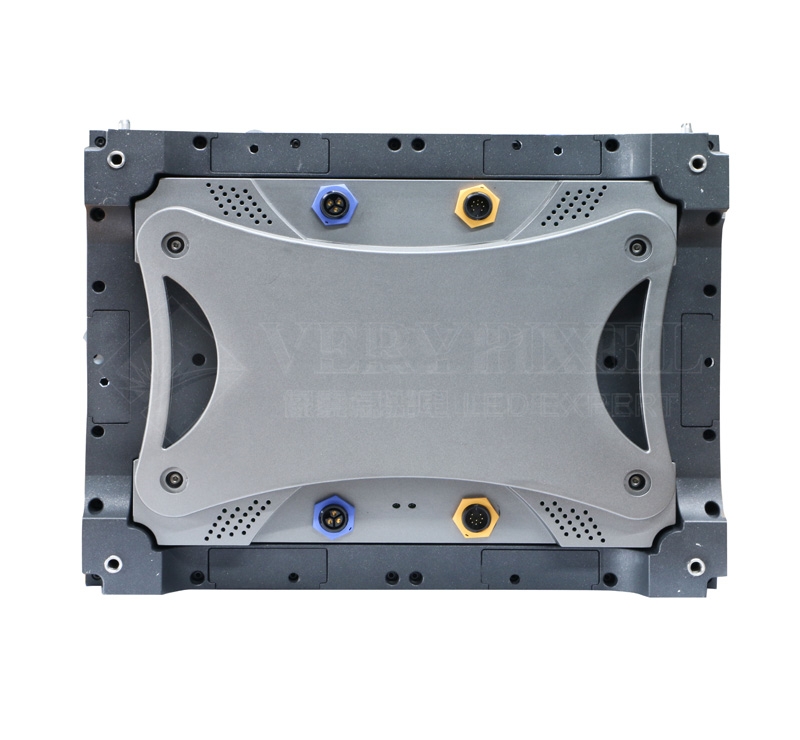

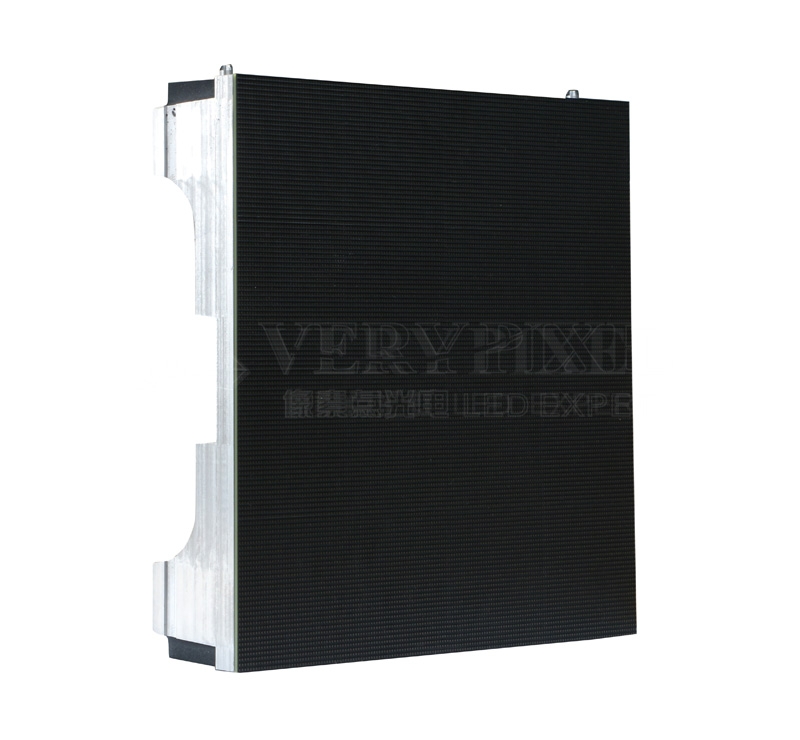

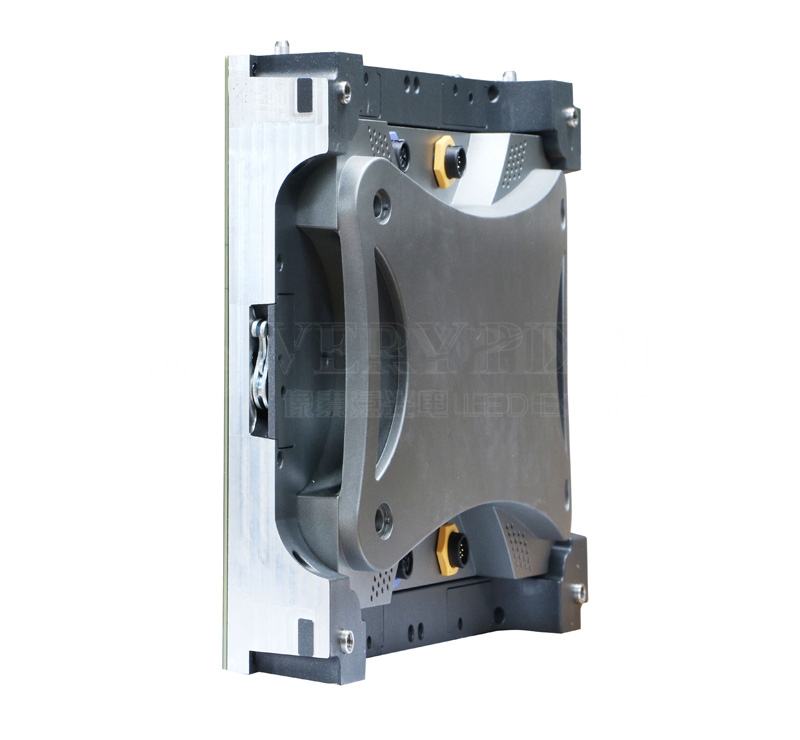

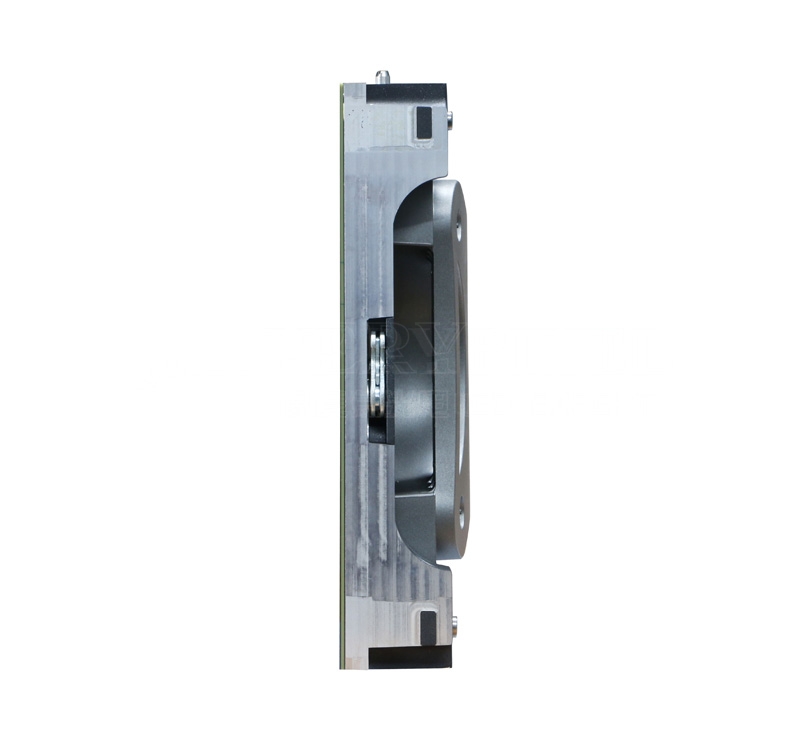

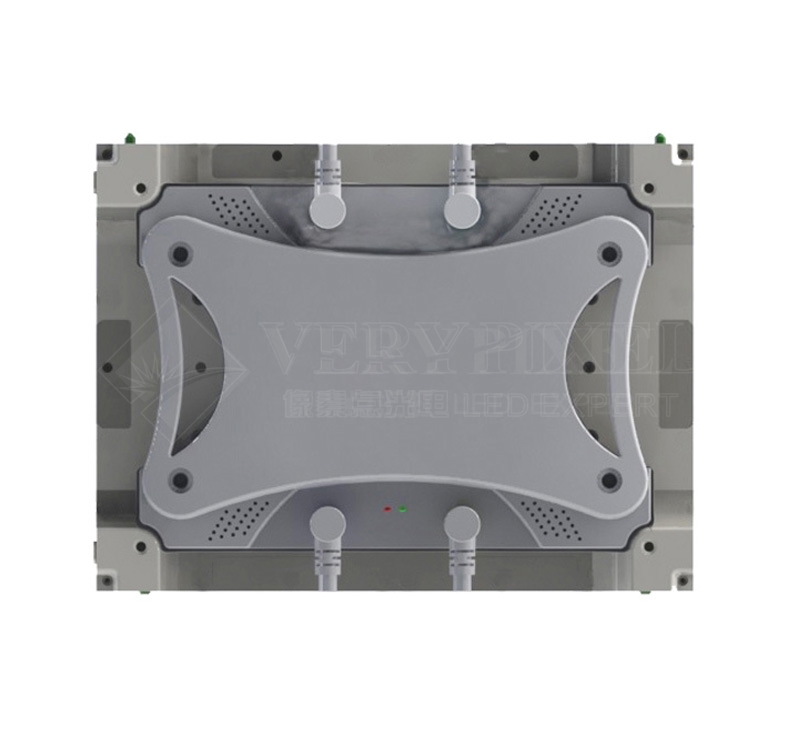

Cabinet Structure


P1.923 HD LED Rental Display

P1.923 HD LED Rental Display


Product Parameters


Item

Specification

module

Led type

SMD 3 IN 1

Pixel pitch (mm)

1.923

Module resolution (W X H)

104×156

Module dimensionmm

200W×300H

Module weightkg

0.4

Module power consumptionW

40

cabinet

Module quantityW×H

2×1

Cabinet resolutionW×H

208×156

Cabinet dimensionmm

400W×300H×66D

Cabinet aream2

0.12

Cabinet weightkg

4.6

Pixel densitydot/m2

270422

Cabinet flatnessmm

≤0.2

Maintenance

Back Access

Cabinet material

Die-casting Aluminum

Optical parameters

Single-point brightness correction

available

Single-point color correction

available

Brightnessnits

≥1000color temperature 6500K

Color temperatureK

3200—9300 adjustable

Viewing angle (Horizontal/Vertical)

160/160

Luminous point center distance deviation

<3%

Color uniformity

≥97%

Contrast ratio

4000:1

Electrical parameters

Max power consumption

120 W/cabinet;1000 W/m2

Average power consumption

29 W/cabinet280 W/m2

Voltage range

AC90~264V47-63Hz

Security Features

GB4943/EN60950

Processing performance

Frame RateHz

50/60 Hz

Drive mode

Constant Current Driver1/30 scanning

Gray levels

16384

Refresh rateHz

≥2000

processing

16 bit

Module comes with power failure

Save luminance, Color correction, module data

Video playback capability

2K, 4K Ultra-high-definition video

Use parameter

Life timehrs

50,000H

Operating temperature / humidity

-10 – 40 / 10%-80%RHnon-condensing

Storage temperature / humidity

-20 – 60 / 10%-85%RHnon-condensing

Certification

CCCTUV-CEETL, etc
