• VP-I6 Indoor Full Color LED Display
  • Type:Indoor Full Color Display
  • Model:VP-I6
  • Hits:19330
  • Available applications:
    In
    door advertising, billboards,
    Information Display and so on

    Project Case>>>



Tag: P6 indoor led modules, P6 SMD led video wall, indoor SMD led displays

Products’ function advantages
>> Variety of information is available to display: information about computers, pictures, graphs, two-dimensional and tri-dimensional animation, etc.
>> Multi-language compatible: Information could be displayed in English, French, German, Greek, Russian and Japanese, etc.
>> Advanced LED coloration achieves higher brightness at lower temperatures, resulting in less stress and longer life span.
>> Advanced tri-color calibration and stricter measuring standards achieve precision uniformity and extended endurance.
>> Verypixel’s indoor LED display panel provides high-quality images as the following characteristics: +high brightness, +high-contrast ratio, +enhanced color uniformity.



LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 150-200mcd 120º/120º 620-630nm 25℃,20mA
Green LED 260-330mcd 120º/120º 520-535nm 25℃,20mA
Blue LED 55-65mcd 120º/120º 465-475nm 25℃,20mA



Module Parameters

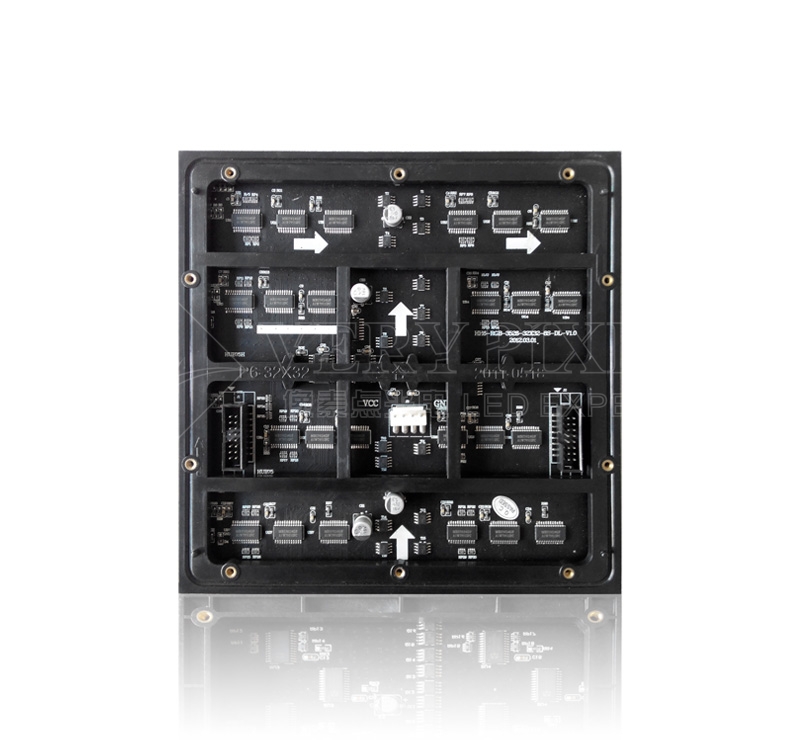

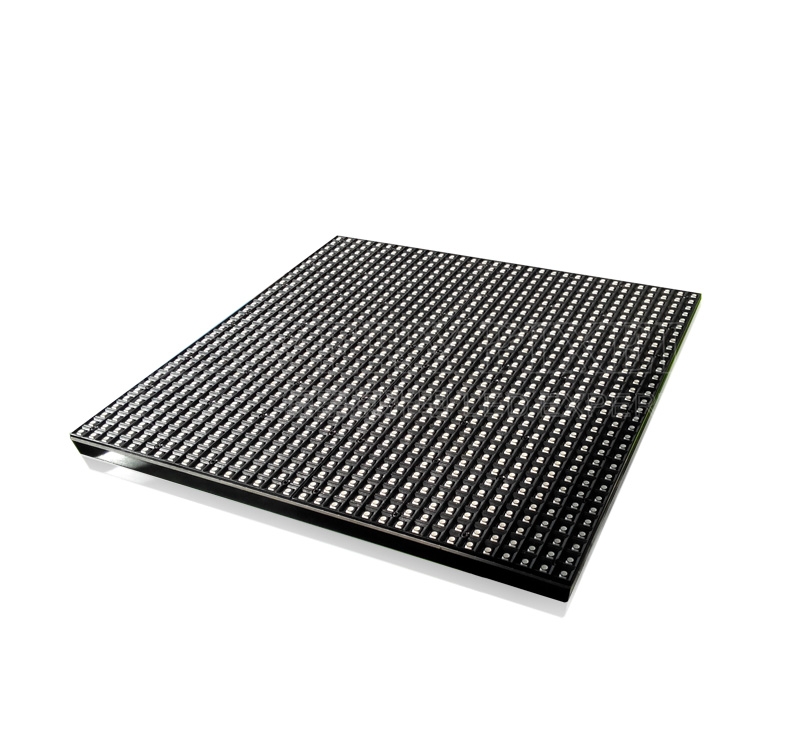

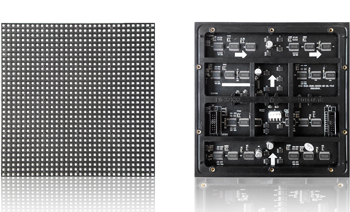

Pixel Pitch 6mm  P6 Indoor Full Color LED sign modules
Pixel Configuration 1R1G1B SMD 3in1
Module Resolution 32dots*32dots for real
Module Pixels 1024 dots
Module Size 192mm*192mm
Module Weight 0.55KG



Cabinet Parameters

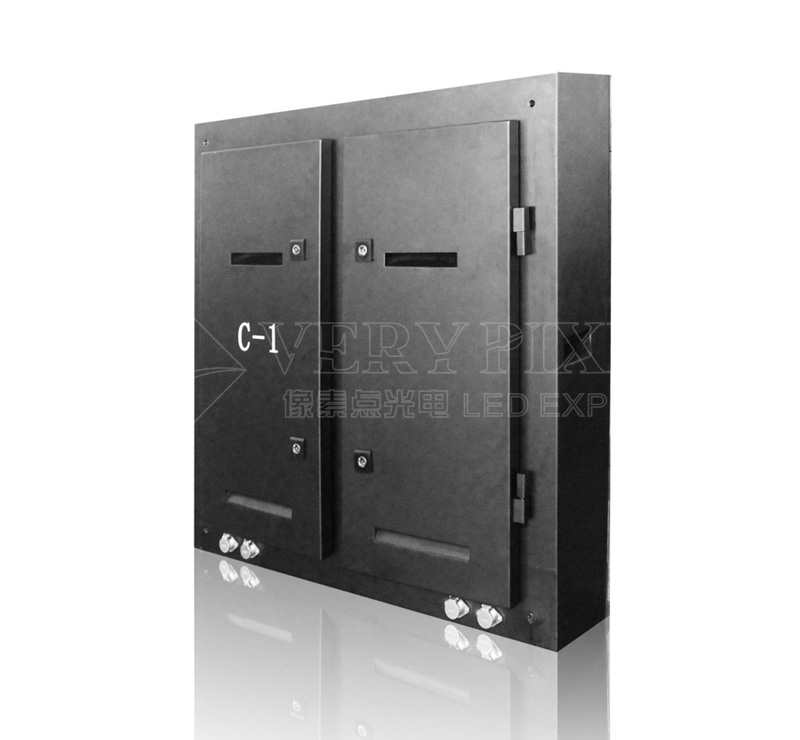

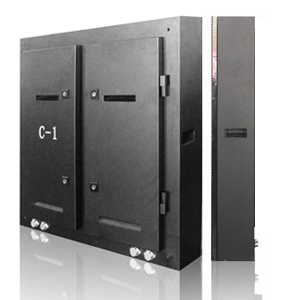

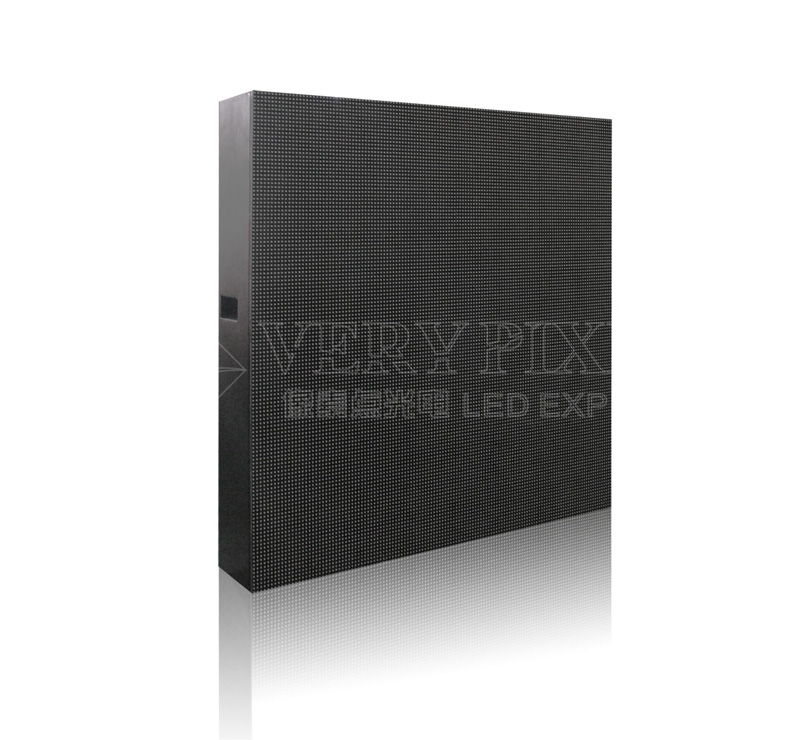

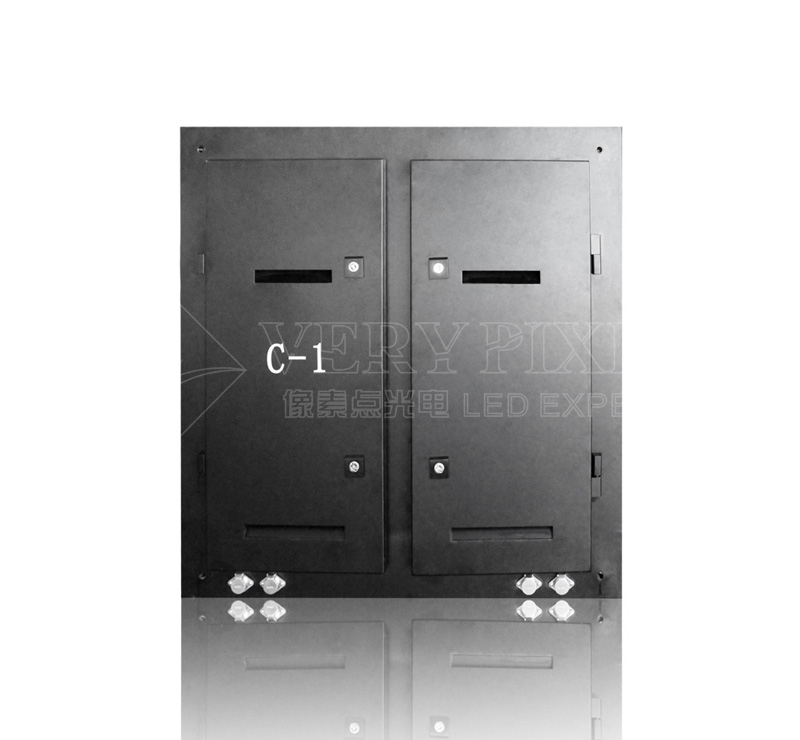

Cabinet Size(W*H*D) 768*768*160(mm)  p6 Indoor Full Color LED video wall cabinet
Cabinet Resolution 128dot*128dot for real
Module Quantity 16 pcs
Cabinet Pixels 16384 dots
Pixel Density 27777 dot/sqm
Avg. Power Consumption 250W/sqm
Max. Power Consumption 750W/sqm
Material Iron or Aluminum
Cabinet Weight 32KG for iron cabinet;
24KG for aluminum cabinet



Screen Parameters

Brightness ≥2000cd/sqm
Contrasts (Max. /Min.) 1.1:1
Driving Method Static
View Angle Horizontal 120° Vertical 120°
Optimal Viewing Distance 5m to 50m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥600Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤50kg/sqm for Iron cabinet /35kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP45
Temperature-operating ﹣40℃~60℃
Humidity-operating 10%~90%
Operating System  Windows98/me/2000/NT/XP/win7
