• VP-GIGA Outdoor P25x75 LED steel curtain display
  • Type:LED Media Facade
  • Model:VP-GIGA -O25x75
  • Hits:4624
  • Available applications:

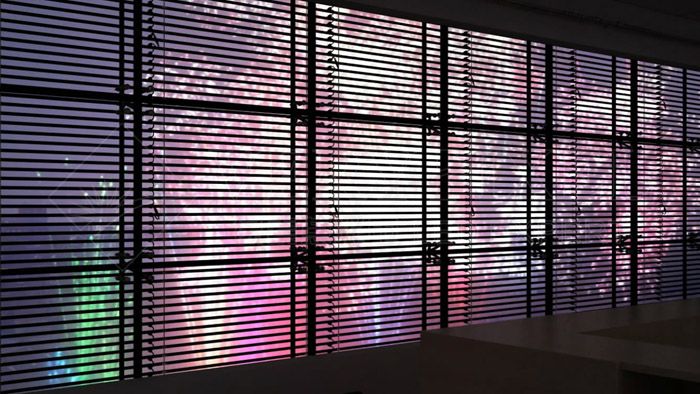

    VP-GIGA is suitable for
    building decoration
    theatre
    shopping malls
    indoor/outdoor stage solution

Tag: P31.25 LED Steel strip display, P31.25 building LED grid displays, P31.25 Gaint LED steel curtain display



VP-GIGA-O25x75 LED Steel strip display is a new style of LED displaying screen, it takes the advantages of high definition, good quality, high grey and it voided to be cut down the signal when LED screen and LED daylight is moving. It is your perfect choice for indoor or outdoor displaying.


VP-GIGA-Outdoor-P25x75-LED-steel-curtain-display





VP-GIGA Characteristic

>> High brightness, low consumption, high reliability, high consistence.
>> It was sealed by silicone, waterproof match IP67.
>> The part of driver is adopted to seal by full of silicone, waterproof match IP67.
>> The signal of each strip is separate. They are not effect the other.
>> Each unit with intelligence integration controller inside.
>> Easy connection, support signal double direction transference.
>> It is convenient to install, there are 4 foot stool for fix in each unit.



VP-GIGA Material

>> The body of LED is made of superior aluminum alloy, twice dispose surface by oxidation.

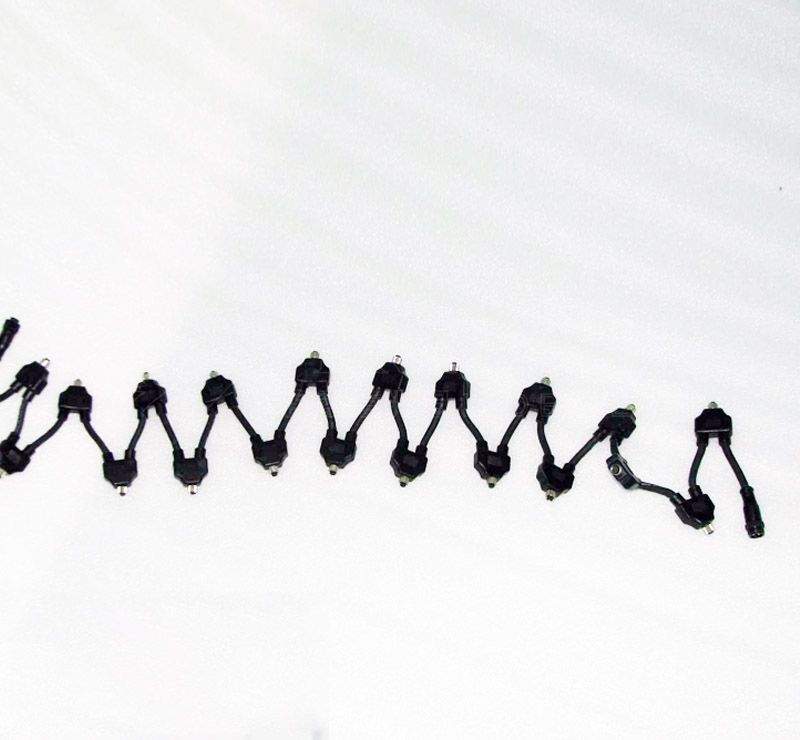

>> Connection device adopted craft covered gold, installation low resistance protected from oxygenized.
>> Configuration anti-aging silicone rubber ring, copper nickel plating processing, high waterproof, suit high & low temperature adaptive capacity and anti- air corrosion.

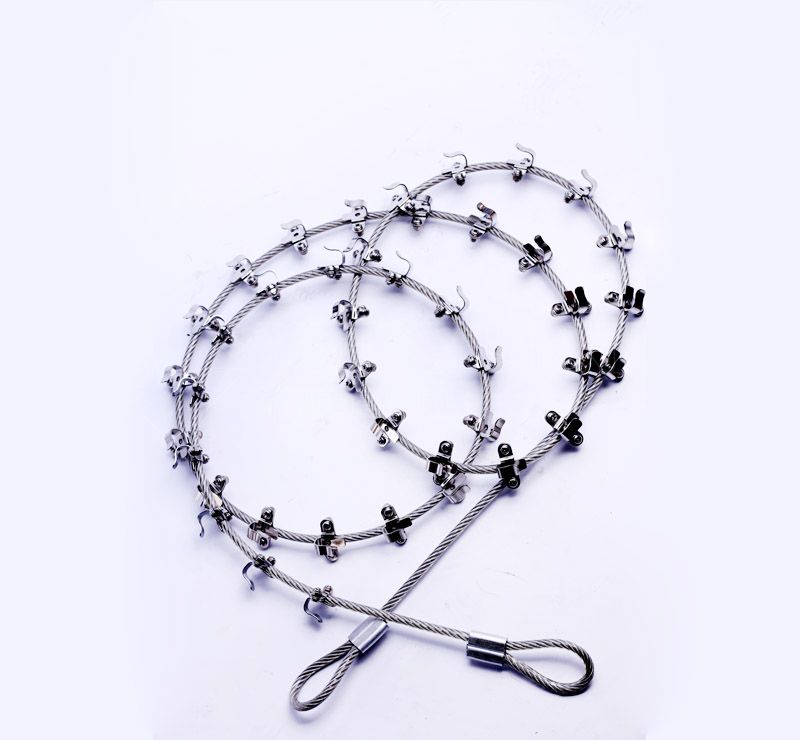

>> Keep it fixed by stainless steel screws which make it looks artistic and also antirust.

VP-GIGA Topology

VP-GIGA Topology

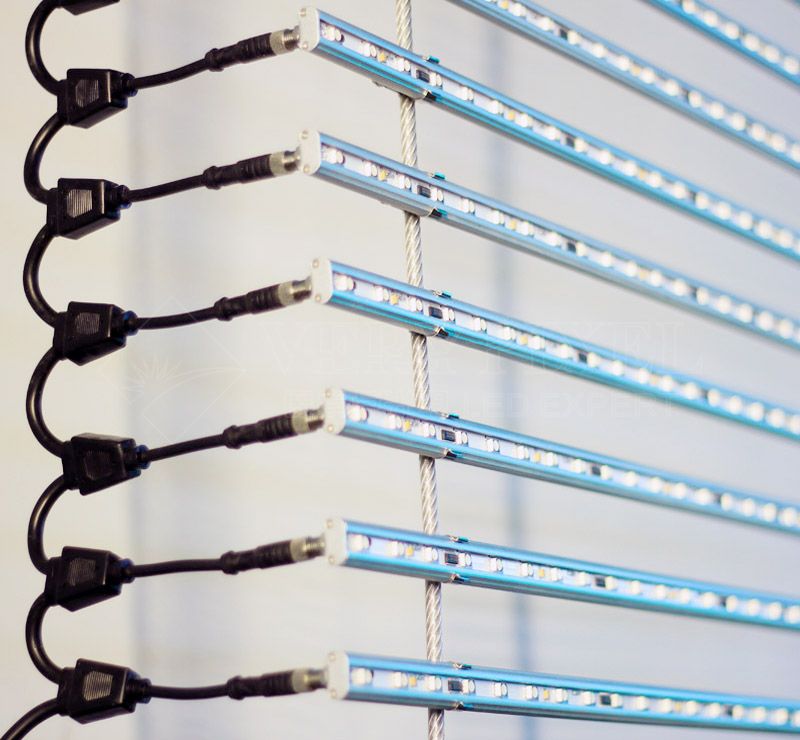

VP-GIGA Installation




VP-GIGA Parameters

Name VP-GIGA O25*75
Unit size 1200mm*3150mm
Pixel pitch 25*75mm
Light color SMD 3in1
Density 2016 Pix/unit
Driving IC MBI5041
Seal IC Epistar/CREE
Control Online real time display system
Weight 21kg /unit
Unit area 3.78 /m2
Max power 160W/ pcs
Brightness ≥1530cd
Resolution 533 pix/m2
Unit pixel 48pix*42pix/unit
Driving mode Static, constant currency
Frame rate 15 to 75Hz
Refresh rate ≥1100Hz
Grey Level 16bits*16bits*16bits
Color change 16777216
Lifespan ≥50,000h
Voltage AC220V
Protective level IP67
Humidity ≥20%-95%RH
Light transmission rate ≥65%
Working temperature -20°C to +70°C
