• VP-Fastile-PH8 Front aintenance LED Display
  • Type:Front Service Display
  • Model:VP-FS-I8-SMD
  • Hits:1893
  • Available applications:
    indoor advertising, billboards
    rental business and stage background.

     Project Case >>  Video Demo >>


P8 indoor front service led display screens

Tag: PH8 indoor front and rear maintenance video wall, indoor front open LED cabinets, indoor front and rear access LED modules



Indoor front maintenance LED display screens: No need go inside sign to suffer heat torturing now!
Indoor high resolution, high precision and seamless split/joint, Smart structure design and long time proven technology.

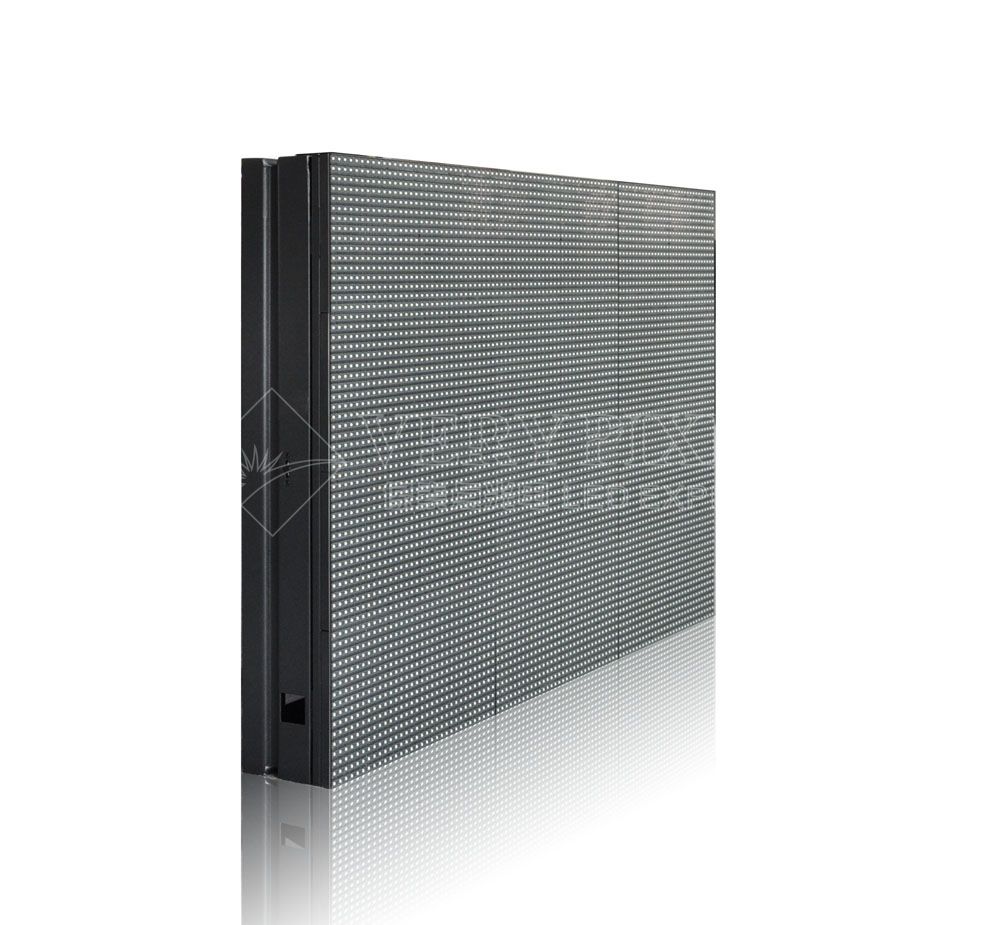

Front service LED display screens



Product Features



Easy and fast lock/unlock: Only takes 5 seconds to dismantled and assembled (replaced) one module by a small tool.

Convenient installation: Light weight, and the cabinet structure enable to hang mount on the wall or lifting rely on the wall with simple installation accessories.

Front removable: Front service design, each module of the screen can be easily removed from front side. It is particularly suitable for LED Ceiling Display.

Safe and quick service: When the module needs maintenance, don’t need to climb to the high or suffer heat torturing.

Seamless split/joint: High precision and standard module size 320mmX320mm, makes the screen has good flatness and seamless.



Display Effect

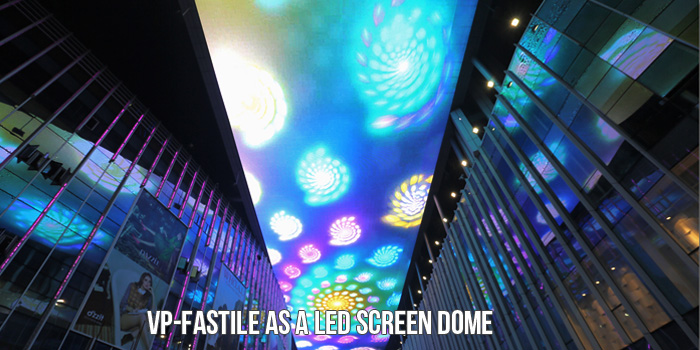

front maintenance LED screen dome


LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 800-900mcd 110°/110° 620-630nm 25°C, 20mA
Green LED 1400-1800mcd 110°/110° 520-535nm 25°C, 20mA
Blue LED 250-400mcd 110°/110° 465-475nm 25°C, 20mA



Module Parameters

Pixel Pitch 8mm  indoor front access led module
Pixel Configuration SMD 3535
Module Resolution 40dots*80dots for real
Module Pixels 3200 dots
Module Size 320mm*640mm
Module Weight 3.5KG



Cabinet Parameters

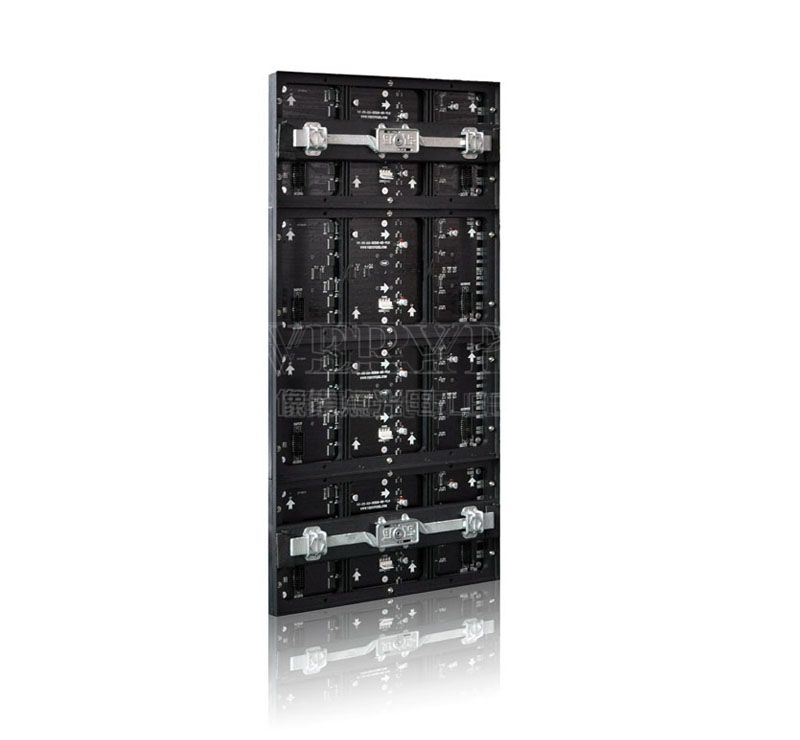

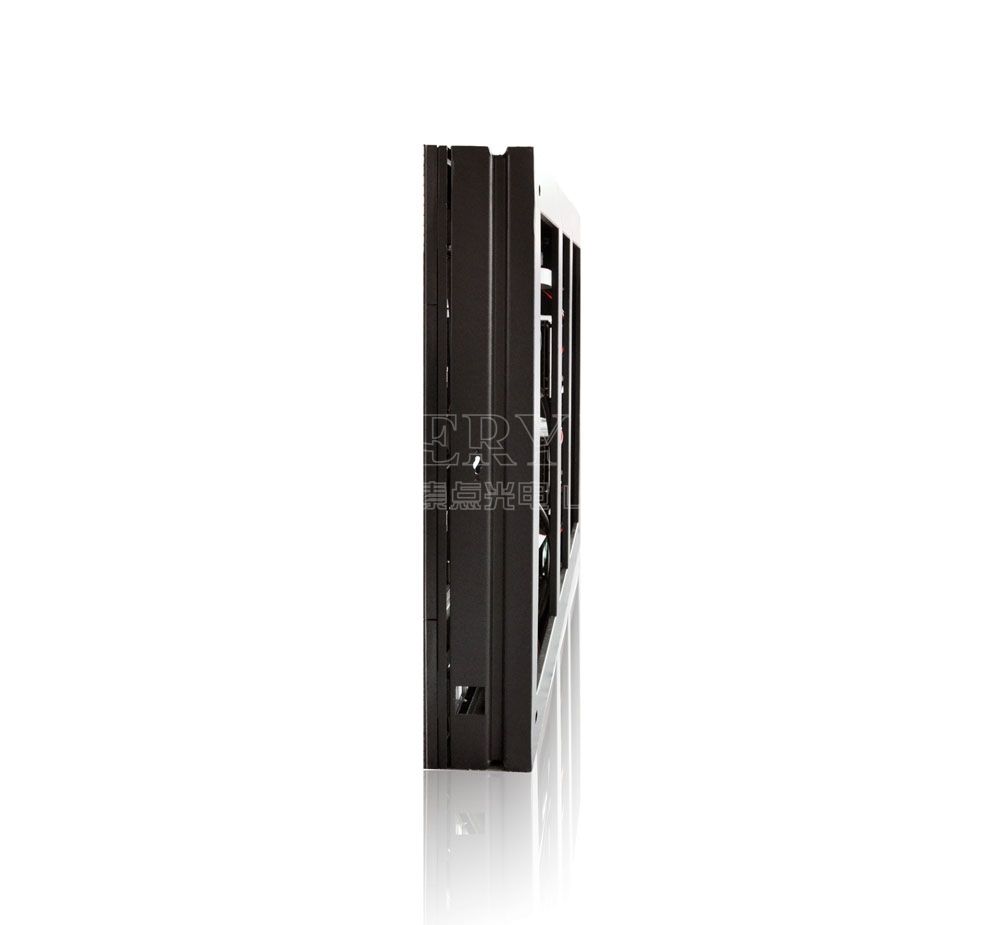

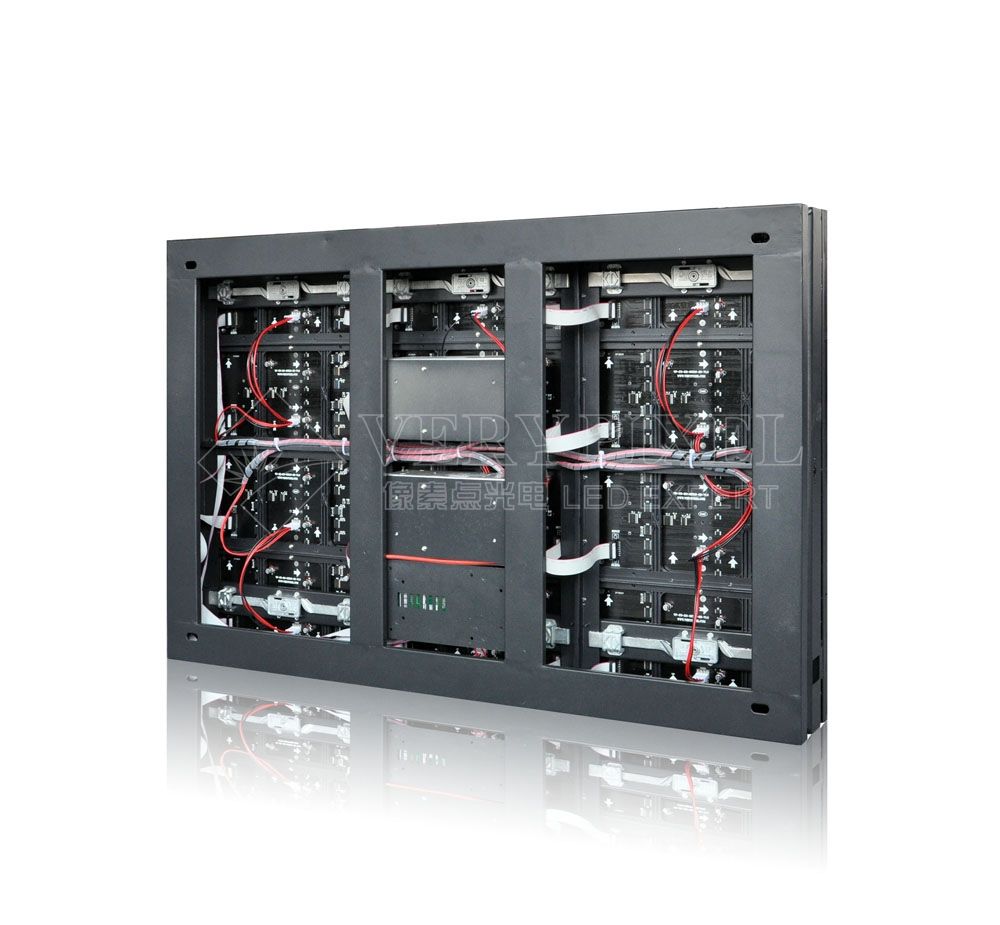

Cabinet Size(W*H*D) 960*640*100(mm) or customizable  front open LED cabinet indoor
Cabinet Resolution 80dot*120dot for real
Module Quantity 3 pcs
Cabinet Pixels 9600 dots
Pixel Density 15625 dot/sqm
Avg. Power Consumption 180W/sqm
Max. Power Consumption 550W/sqm
Material Iron or Aluminum
Cabinet Weight 20KG for iron cabinet;
14KG for aluminum cabinet



Screen Parameters

Brightness ≥1400 to 2000cd/sqm
Contrasts (Max. /Min.) 1.1:1
Driving Method Static
View Angle Horizontal 110° Vertical 110°
Optimal Viewing Distance 8-200m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥600Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤32kg/sqm for Iron cabinet /22kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP45
Temperature-operating -40°C to 60°C
Humidity-operating 10% to 90%
Operating System  Windows98/me/2000/NT/XP/win7
