• VP-Wonderful Series
  • Type:Rental LED Display
  • Model:VP-Rental screen Series
  • Hits:11992
  • Available applications:
    Indoor rental, information display
    stage background and so on.

Tag: led rental screen, led die-casting cabinet display, rental led sign

Product Features





Light weight: Large unit and light weight. The cabinet can be as light as 13KG.

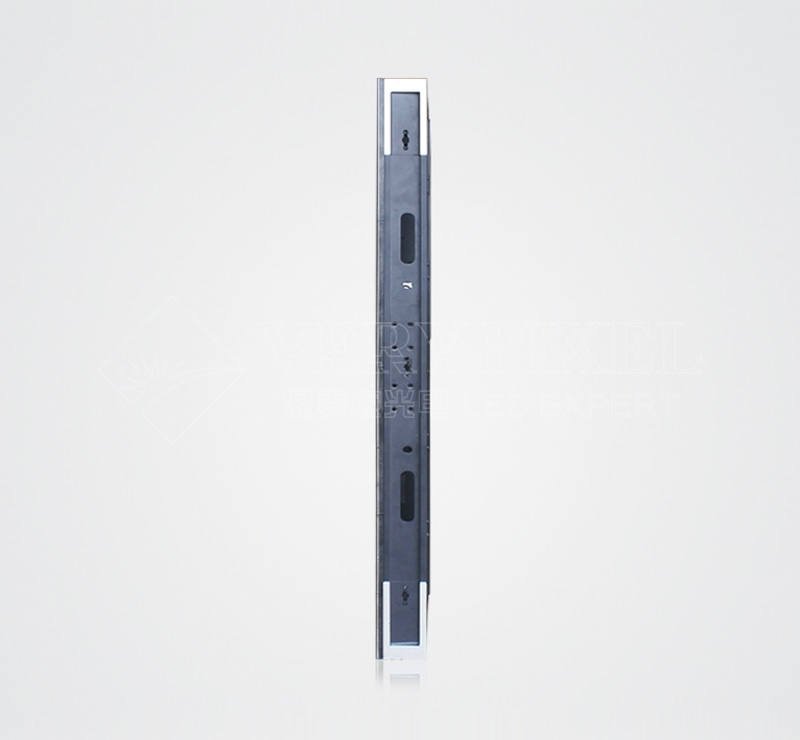

Ultra thin: The thinnest point of the cabinet is only 65mm, making it easily to be fitted in small room.
Seamless connection: The aluminum die-casting technology, together with the high-precision CNC procession, makes the precision reach ±0.05mm so as to achieve seamless assembly.
Low power consumption: Combined with the brightness auto-adjusting technology and PFC power supply, Low current can save energy over 35%, which in other words is to save money.
Easy to maintain: No need to disassemble the whole screen for maintenance. Each component can be detach individually for that purpose.
Noiseless: The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
Ghost canceling: Exquisite and clear picture quality with no ghost. Both upstream and downstream ghosts can be automatically canceled.
High refresh rate: Over 2880Hz refresh rate to ensure the picture wrinkle-less, line-less and stable.
Low brightness and High gray scale: 14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.

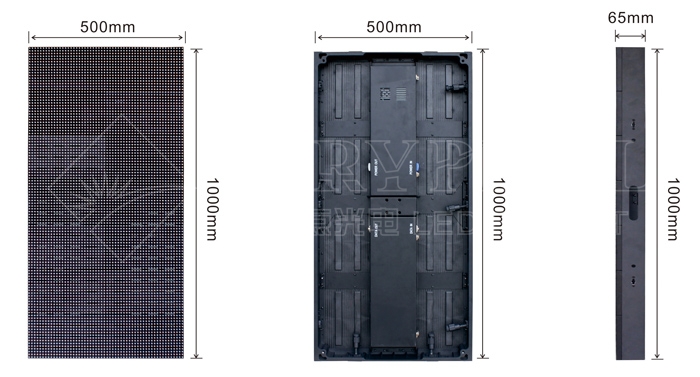

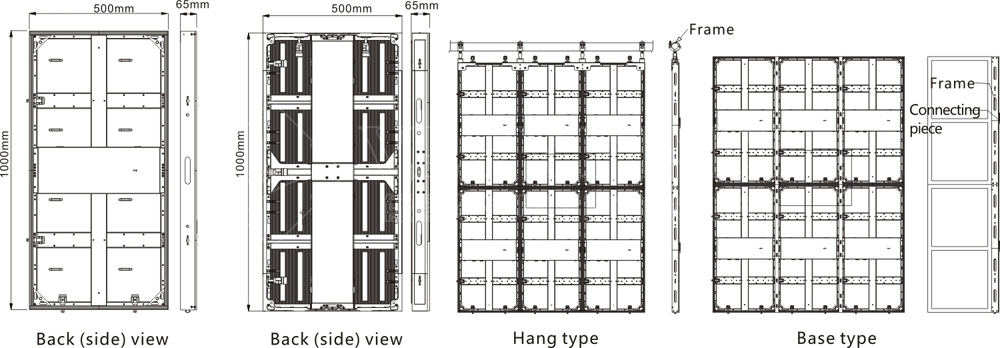

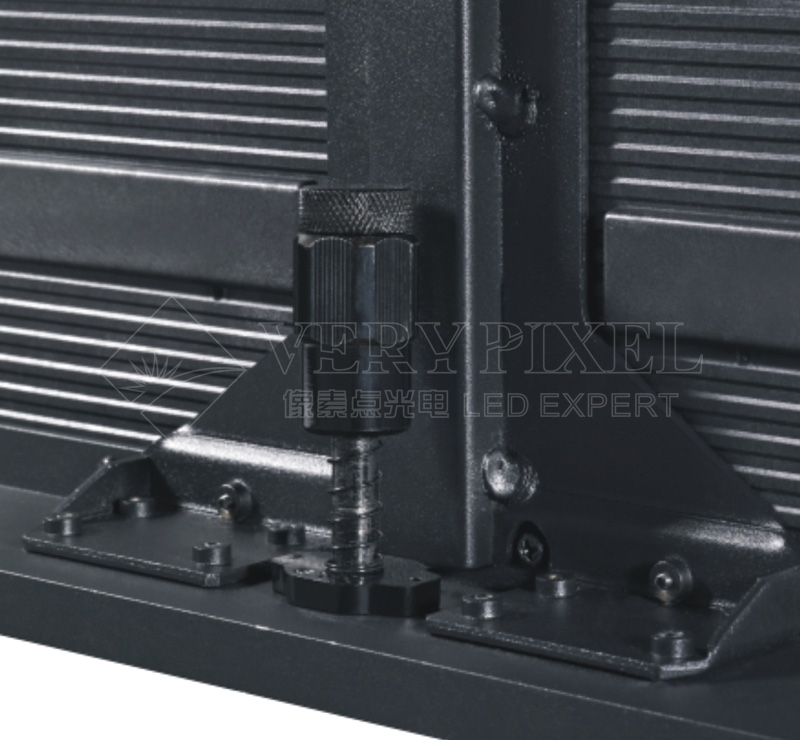

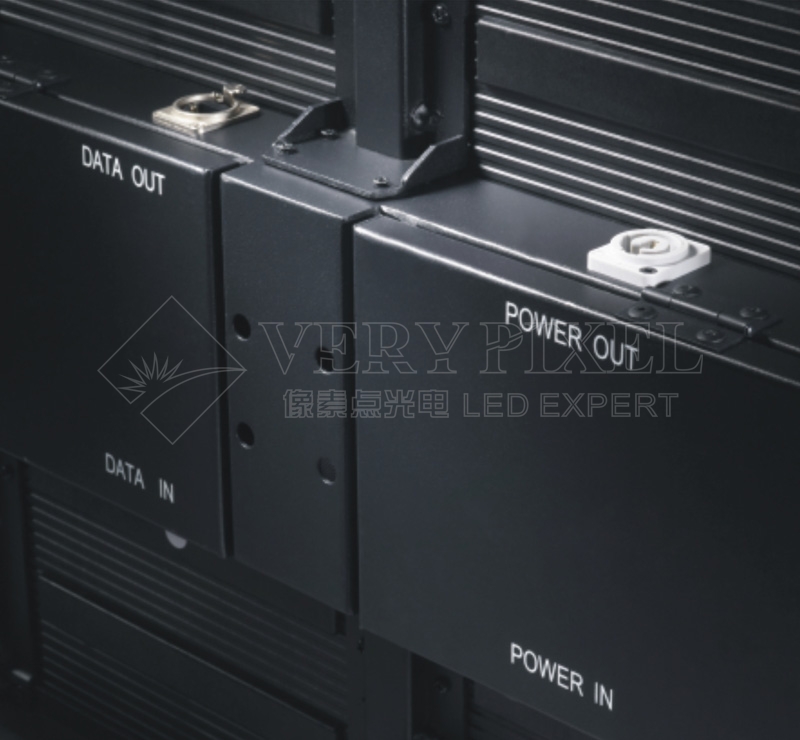

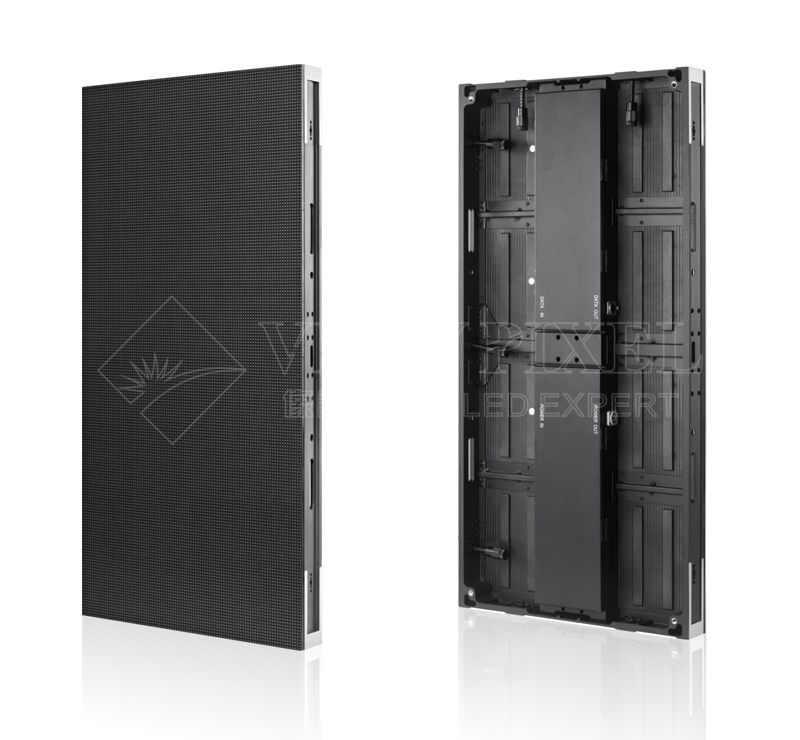

Cabinet Structure


casting led display screen, led rental sign

led die-casting cabinets structure


Product Parameters

 Items

 Parameter

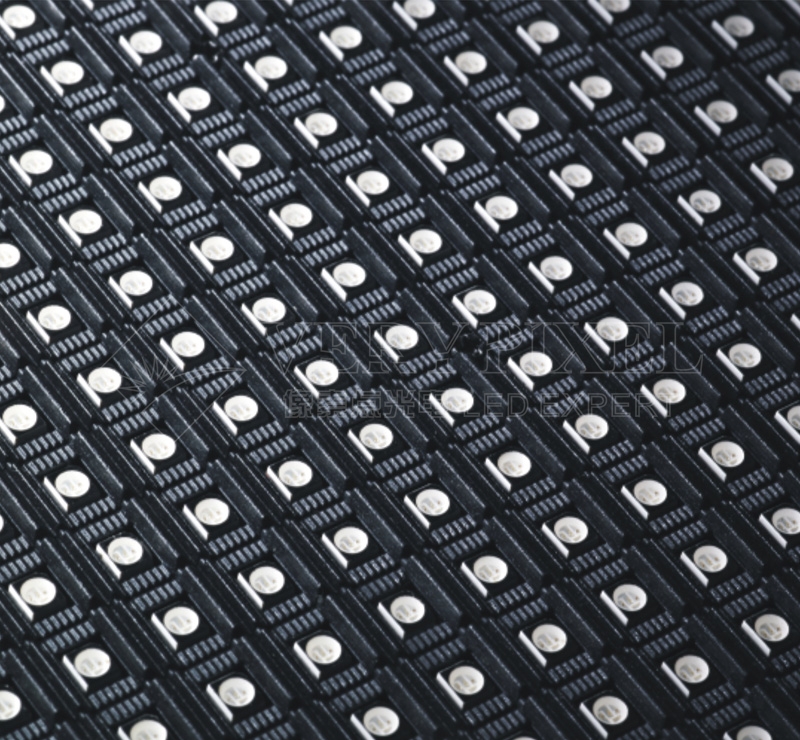

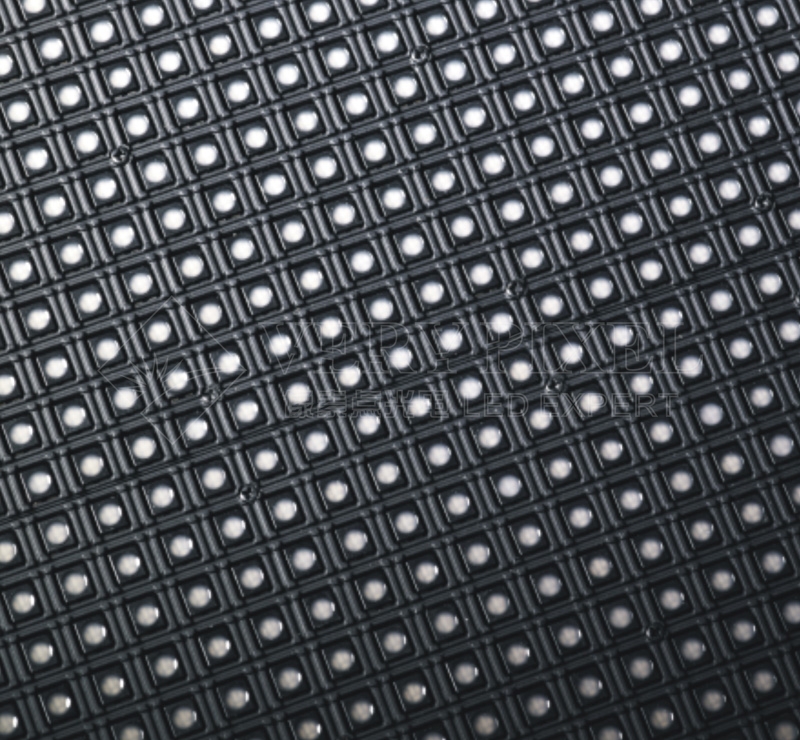

 LED Encapsulation

 SMD 3528

 SMD 3528

 Pixel Pitch

 5.2mm

 6.944mm

 Module Resolution(W*H)

 96* 192

 72* 144

 Pixel Configuration

 1R1G1B(3 in1)

 Pixel Density

 36864 pixel/

 20736 pixel/

 Driving Method

 1/8 Scan

 1/9 Scan

 Refresh Frequency

 >2880Hz(Supporting high refresh rate and depending on system configuration)

 Driving IC

 Special constant current IC with high refresh rate and high gray scale

 Grey Scale

 >14BIT(According to system and IC equipped)

 Module Size

 500mm*1000mm

 White Balance Brightness

 >1300cd/sqm

 >1300cd/sqm

 Color Temperature

 8000K ± 500(adjustable)

 Viewing  Angle

 Horizontal  Angle 140°     Vertical  Angle 120°

 Optimal Viewing Distance

 >6m

 >7m

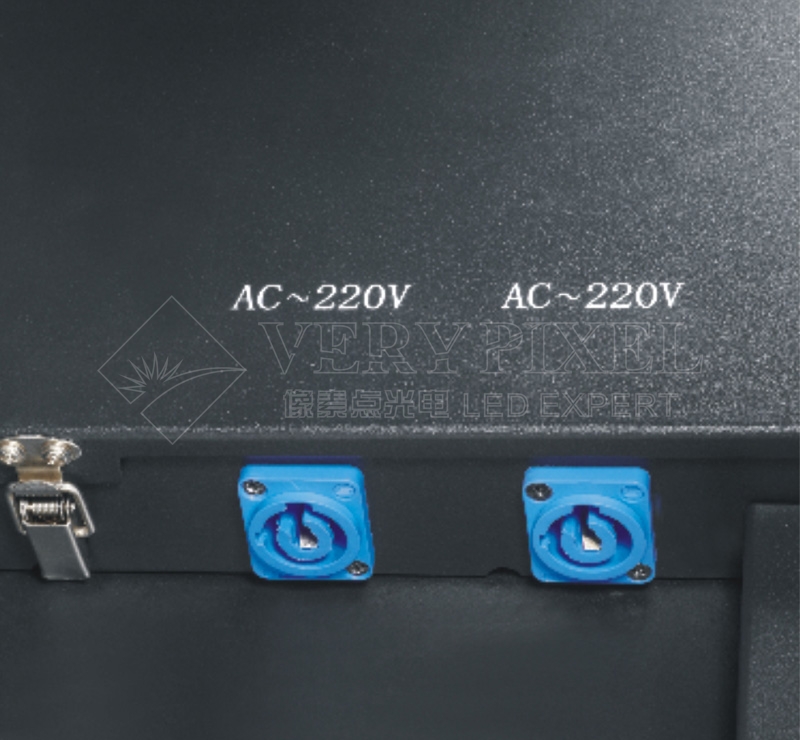

 Working Voltage

 AC 220V±10%

 Max Power Consumption

 250W/pcs(White Balance)

 120W/pcs(White Balance)

 Avg Power Consumption

 125W/pcs(Normal Working)

 60W/pcs(Normal Working)

 Lifetime

 50000 Hours

 Operating Temperature

 -10°C to 50°C
