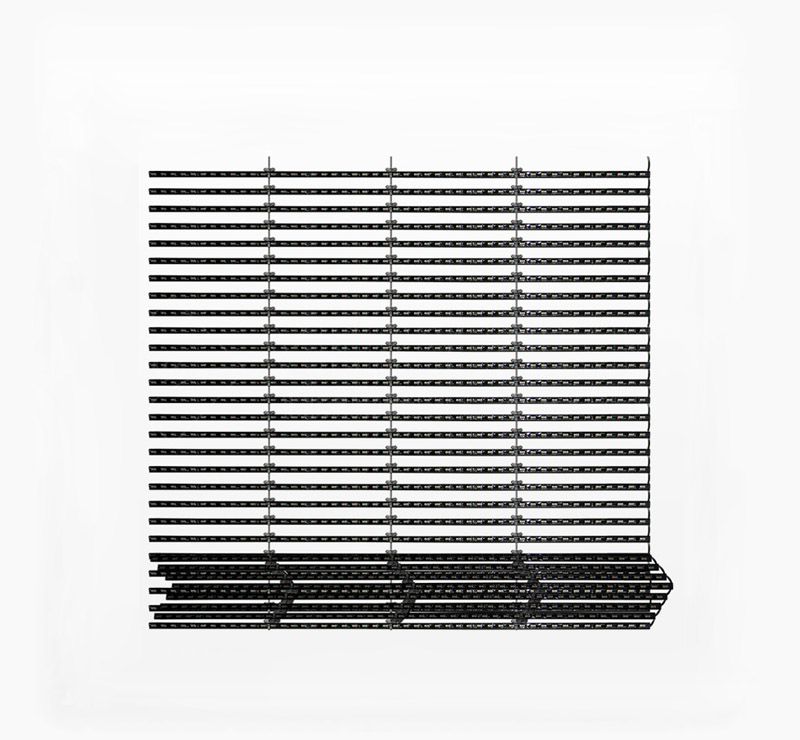

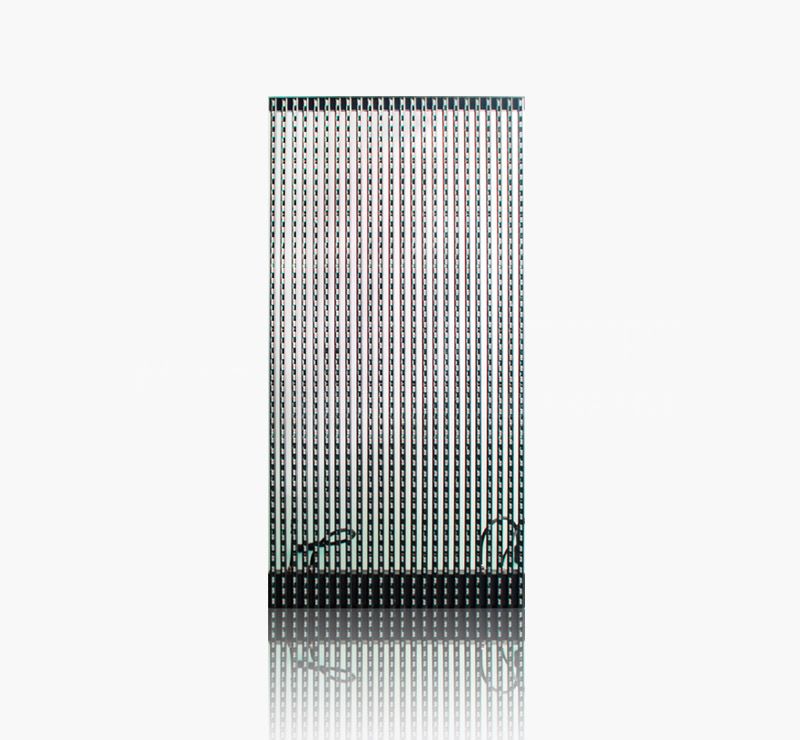

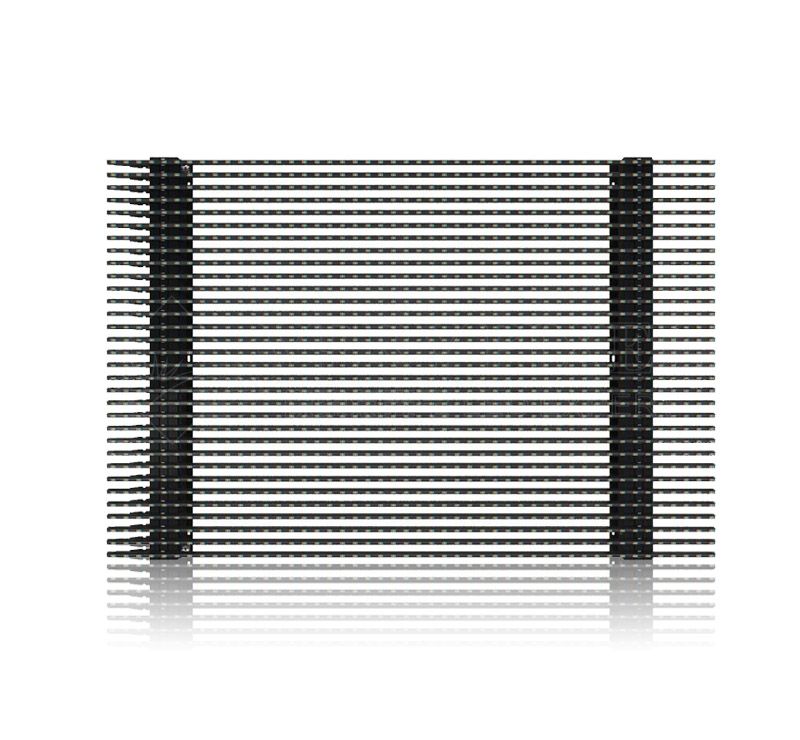

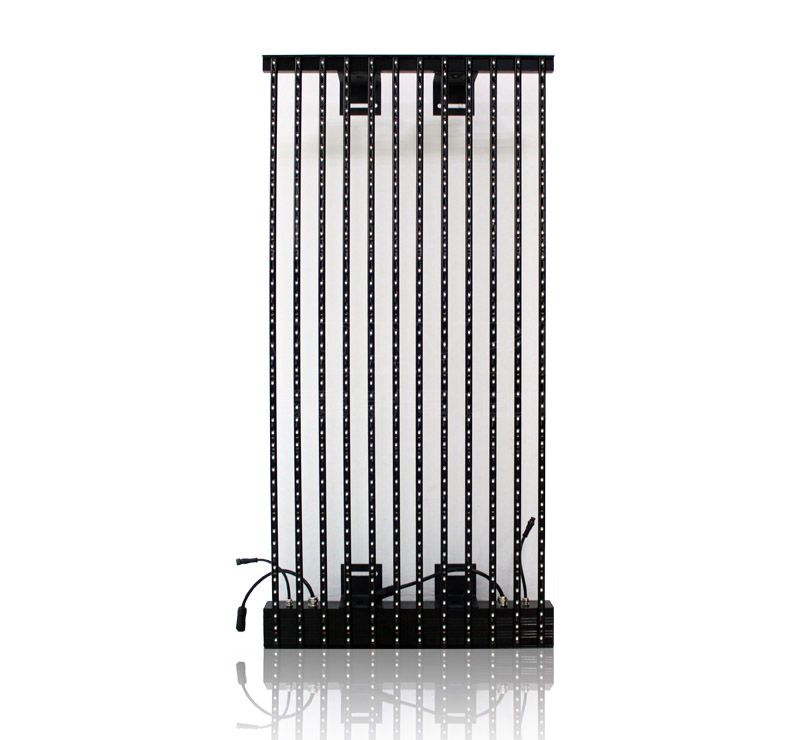

VP-GIGA-O31.25x31.25 is a new style of LED displaying screen, it takes the advantages of high definition, good quality, high grey and it voided to be cut down the signal when LED screen and LED daylight is moving. It is your perfect choice for indoor or outdoor displaying.
VP-GIGA Characteristic
>> High brightness, low consumption, high reliability, high consistence.
|
>> It was sealed by silicone, waterproof match IP67.
|
>> The part of driver is adopted to seal by full of silicone, waterproof match IP67.
|

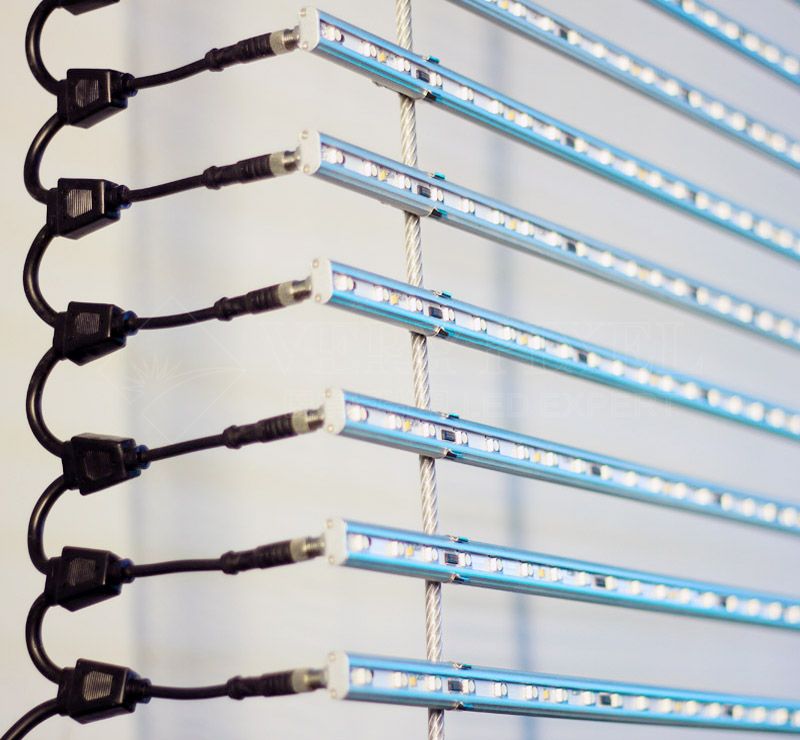

>> The signal of each strip is separate. They are not effect the other.
|
>> Each unit with intelligence integration controller inside.
|

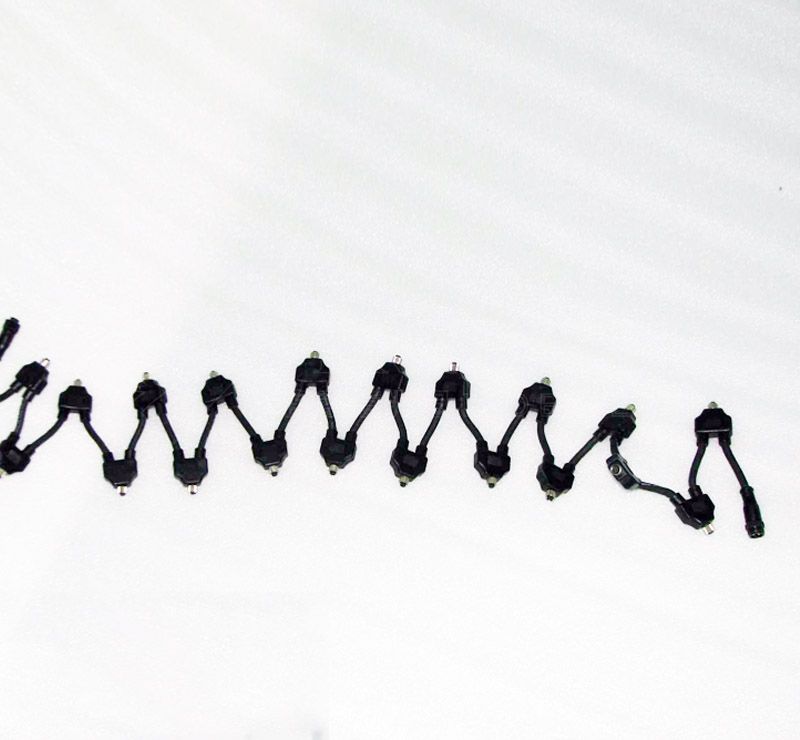

>> Easy connection, support signal double direction transference.
|
>> It is convenient to install, there are 4 foot stool for fix in each unit.
|
VP-GIGA Material
>> The body of LED is made of superior aluminum alloy, twice dispose surface by oxidation.
|
>> Connection device adopted craft covered gold, installation low resistance protected from oxygenized.
|
>> Configuration anti-aging silicone rubber ring, copper nickel plating processing, high waterproof, suit high & low temperature adaptive capacity and anti- air corrosion.
|

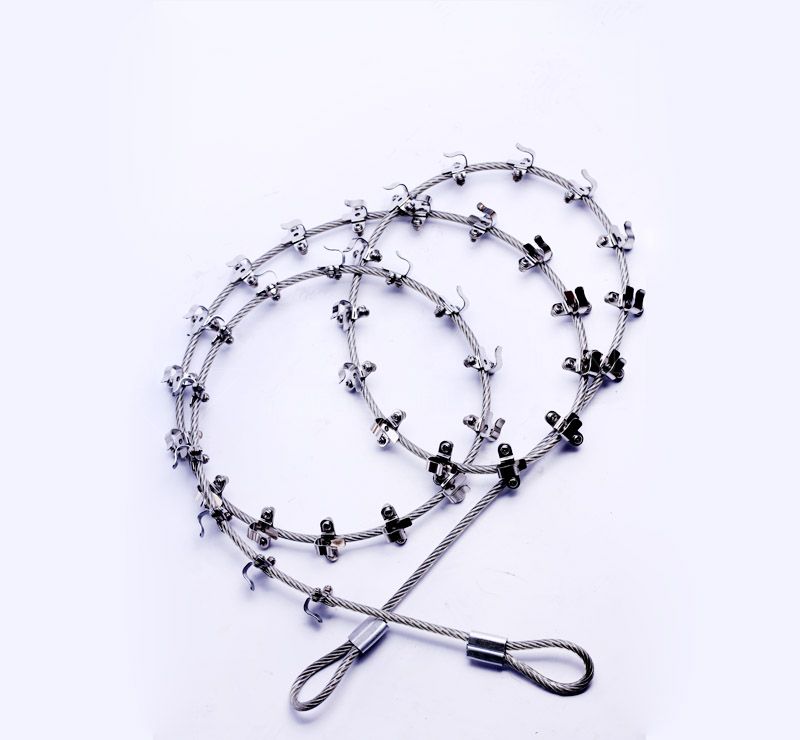

>> Keep it fixed by stainless steel screws which make it looks artistic and also antirust.
|

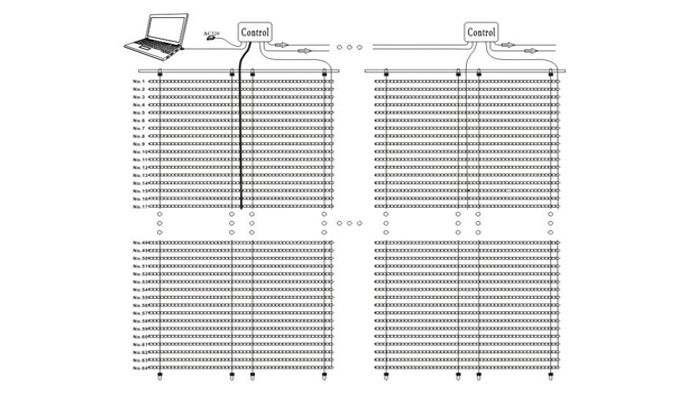

VP-GIGA Topology

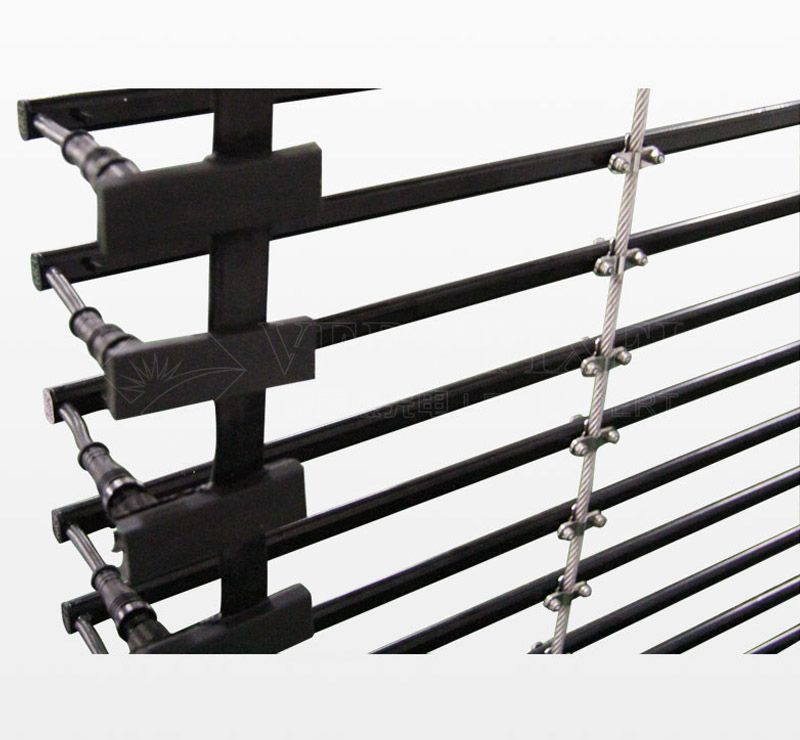

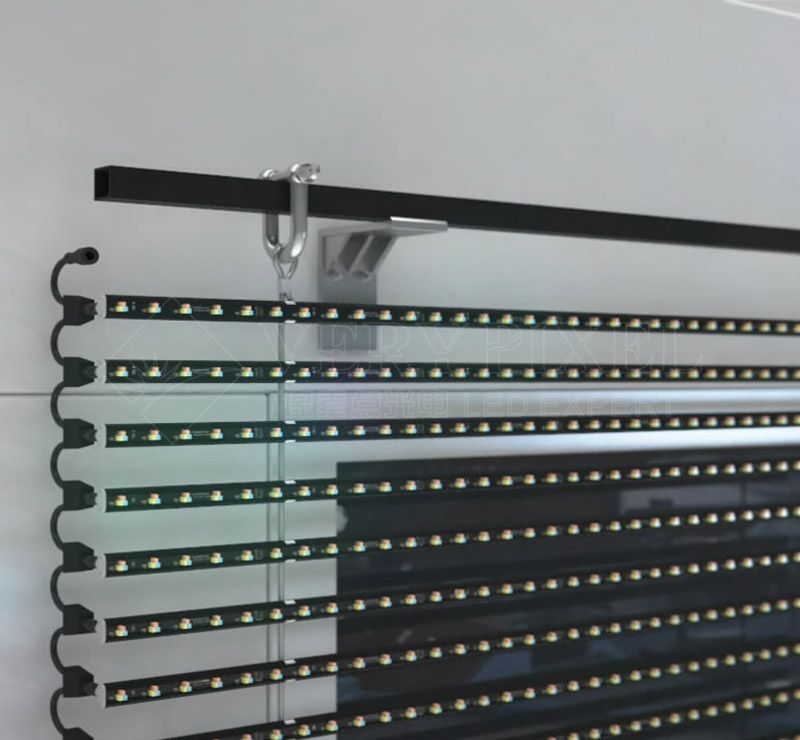

VP-GIGA Installation
VP-GIGA Parameters
Name
|
VP-GIGA O31.25*31.25
|
Unit size
|
1000mm*2000mm
|
Pixel pitch
|
31.25*31.25mm
|
Light color
|
1R1G1B
|
Density
|
2048 Pix/unit
|
Driving IC
|
MBI5041
|
Seal IC
|
Epistar/CREE
|
Control
|
Online real time display system
|
Weight
|
22kg /unit
|
Unit area
|
2 /m2
|
Max power
|
300W/ pcs
|
Brightness
|
≥2960cd
|
Resolution
|
1024 pix/m2
|
Unit pixel
|
64pix*32pix/unit
|
Driving mode
|
Static, constant currency
|
Frame rate
|
15 to 75Hz
|
Refresh rate
|
≥1100Hz
|
Grey Level
|
16bits*16bits*16bits
|
Color change
|
16777216
|
Lifespan
|
≥50,000h
|
Voltage
|
AC220V
|
Protective level
|
IP67
|
Humidity
|
≥20%-95%RH
|
Light transmission rate
|
≥65%
|
Working temperature
|
-20°C to +70°C
|
