Verypixel Interactive LED Floor Display
Interactive LED Floor Display is based on the continuation of traditional LED dance floor, using computer vision technology and LED advanced display technology to create dynamic interactive fantasy experience. Users can directly use the body interacting with the virtual scene area on the display. It is the combination of real-time interactive induction and LED image display, it appears the interaction for the stage show virtual landscape and provides the highest form of expression.

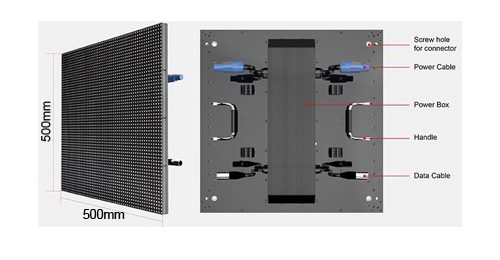

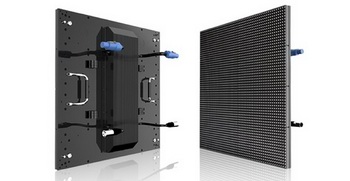

LED Dance Floor Display Cabinet Structure
Physical Resolution: 56* 56/48*48 dots
Cabinet Weight: 12.5kg/pcs
Physical Pixels: 12544/9245 dots/sqm
Dimensions: 500mm*500mm*93mm
● 1.5T/M2 high loading support, with new designed die-casting aluminum structur
● Provide extremly quiet environment with the transcendental fanless designed pad
● Can meet variable needs of stage and events, with adjustable and toll-free positioning installation.
● IP65 pad can withstand the splash of rains and beverages, with three layers of waterproof rubber seal.
● RGB deep gray processing, any color change.
● LED: high quality chip package, the global well-known manufacturers of bright, waterproof three in one surface adhered to the customer LED, multiple choice. At the same time, fully guarantee the service life and the display quality of the display.
● Perfomance crystal clear video directly with the high strength wear-resistant anti-skid Bi color mold mask.
● A new designed base and guide track support structure, accurate, and extraordinary level.
Interactive LED Floor Features

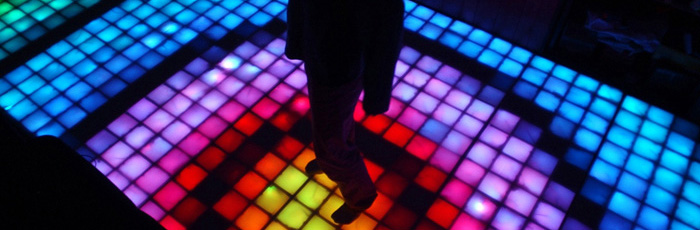

Wherever player step, the mark follow player's feet, Interactive effect is always attractive on the floor.

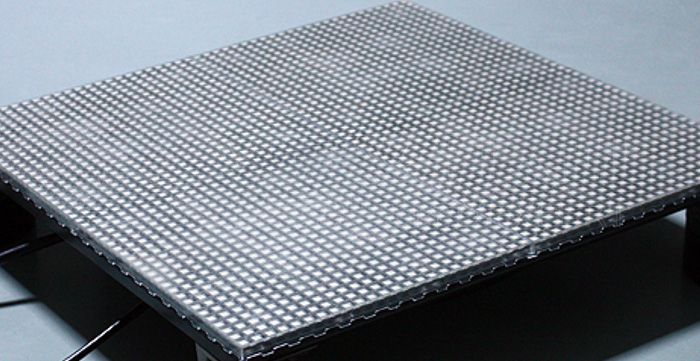

Rigid structure design.

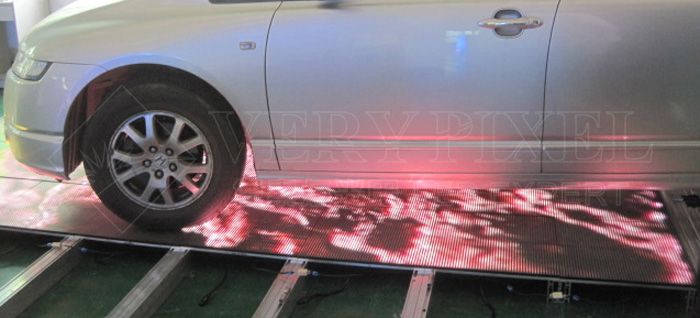

Strongest LED display can load a car weight.

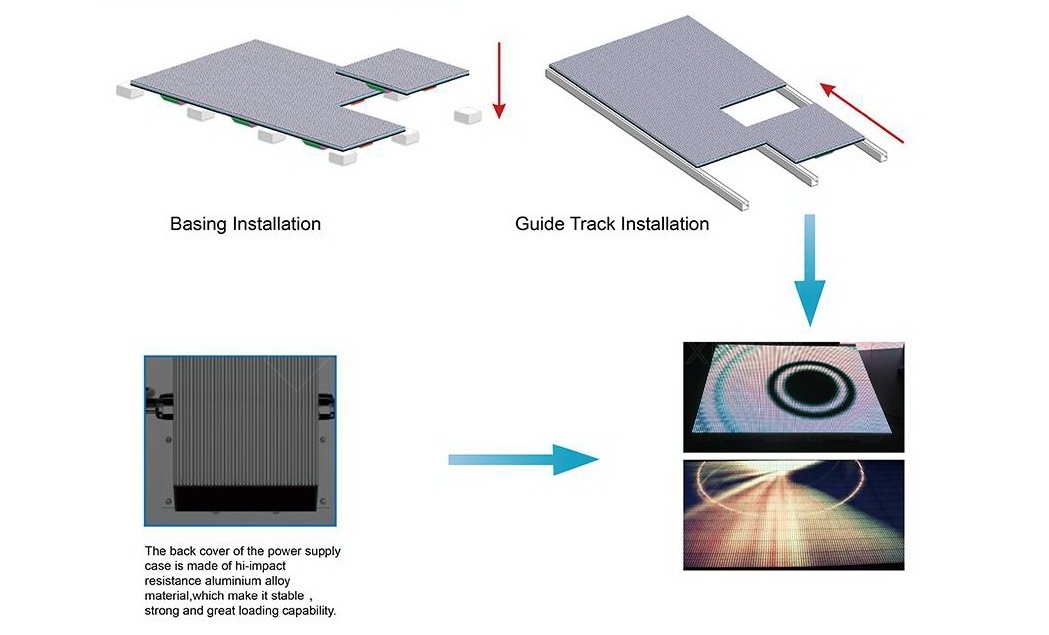

LED Dance Floor Installation
Ways to Use LED Dnace Floor

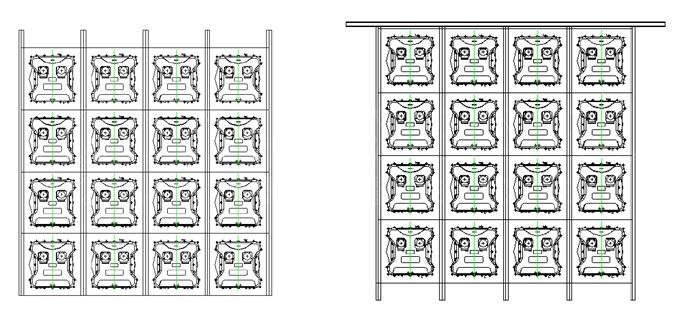

Stacked installation Hanging way
LED Dance Floor Specifications
|
ITEMS
|
MAIN TECHNICAL DATA
|
|
Pixel
|
Pixel pitch: 8.9mm/10.4mm

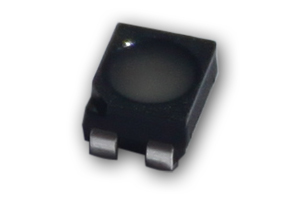

Chip chip: SMD3535
LED color：RGB
Lamp arrange: 1R1G1B(SMD 3 in 1)
Resolution：12544/9245 pixel/m2
|
|
Screen
|
Viewing angle：Horizontal≥110°
Viewing angle：Vertical≥110°
work temperature：-20°C to + 50°C
Relative humidity：10% to 95%RH
|
|
Power Supply
|
Average power consumption range：50W/cabinet
Maximum power consumption： 150W/cabinet
Power inquiry：220VAC±10%, 50Hz 110VAC±10%, 50Hz
|
|
Control
|
PC : PCTV or above
Operating system：WIN XP/WIN 7/WIN 8
Control mode: Synchronization control
Revealing card: DVI reveals the card
|
|
Parameter
|
Driver：constant current IC
Scanning rate：≥60Hz
Refresh rate：≥1000Hz
Gray scale: ≥14bit
Color capacity at least 1 billion
Brightness：≥1800cd/m2
Beam control way: The software 100 levels may move
Control system: PCTV + DVI +CONTROLLER CARD+ fiber
Average non- fault time: ≥1000hours
Life span：≥100000hours；continuing working time：≥48hours
Smoothness: Willfully during neighboring picture element ≤0.5mm; Unit board splicing gap < 1mm
|
