verypixel led billboards
Commercial LED Display Billboard

In terms of what, the application of digital video outdoor LED billboards from VERYPIXEL OPTOELECTRONICS veils a brand
new page of development in the area of outdoor advertisements. A number of articles have already discussed the strengths
of presenting information on LED (Light Emitting Diode) monitors versus the static outdoor printing Ads.


Repeating is not worth your while any more, therefore, by this overview and based on a series of successful examples of New York City, Shanghai, Hong Kong, those are of the top marketing cities in the whole world, which have more than 4000 LED commercial billboards around, those are the success of famous modern cities, how about other huge cities? Let your imagination fly to London, to Munich, to Shenzhen, fly to Moscow, fly to Paris. VERYPIXEL can help you determine and develop your outdoor LED commercial advertising project and boost up sales through visual and effective marketing, mass medium and publicity.



Outdoor LED Screen Size


The size of the Outdoor LED Screen displays and LED signs are very important to know to determine the resolution per square meter (or per square feet) we have to set for the screen. This is to avoid low quality video with very little detail or a very high quality video that is not necessary (in some cases it depends on the customer's project type). The variable that decides the LED screen resolution per square meter is called the pixel pitch, which tells us the distance between the LED´s in millimeters. The shorter the distance of the LED´s, the higher the screen resolution per square meter, and a greater distance, the resolution will be less.

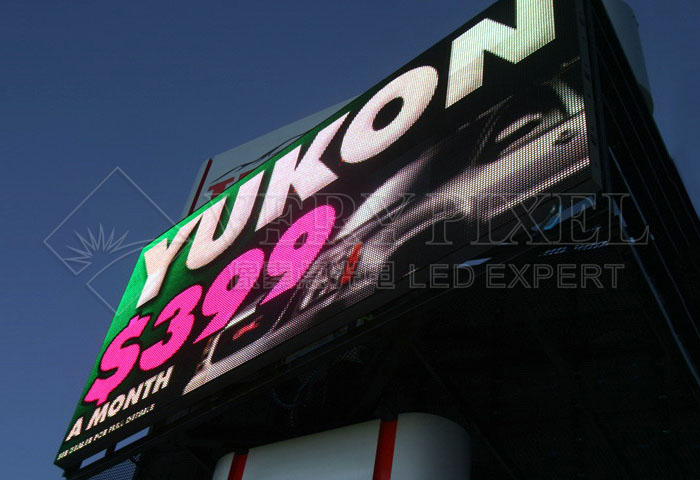

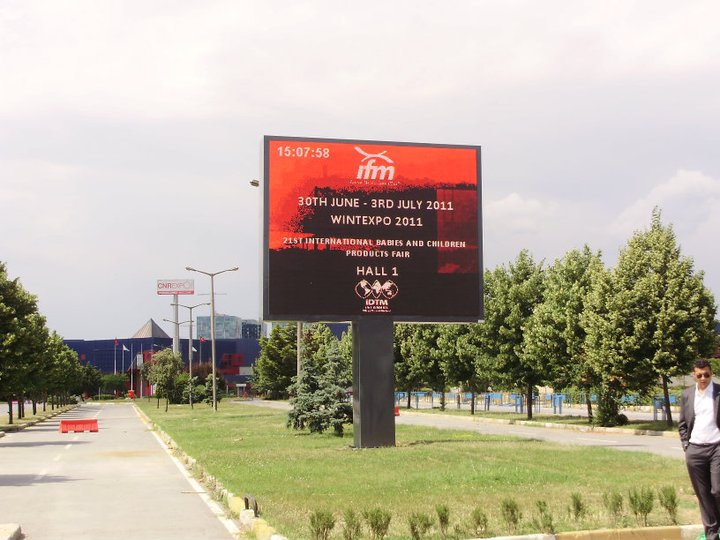

 outdoor led display screens

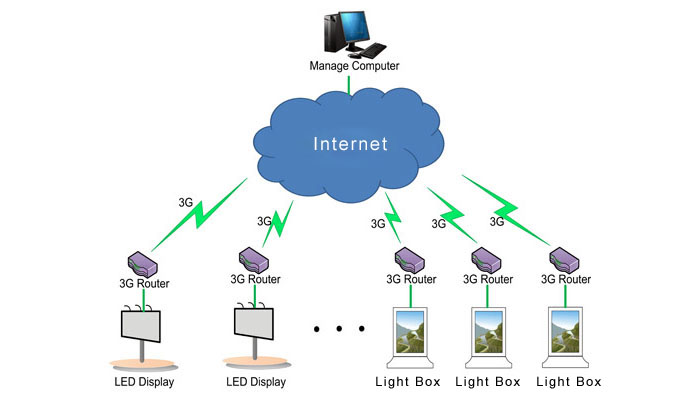

led display system topologyoutdoor advertising led display Topology

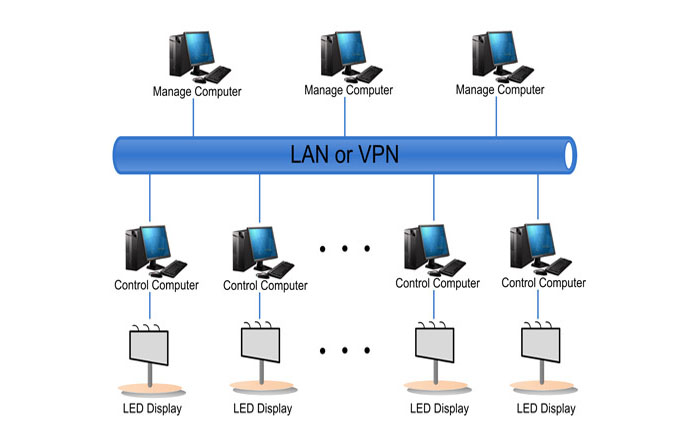

Lan or VPN Topology

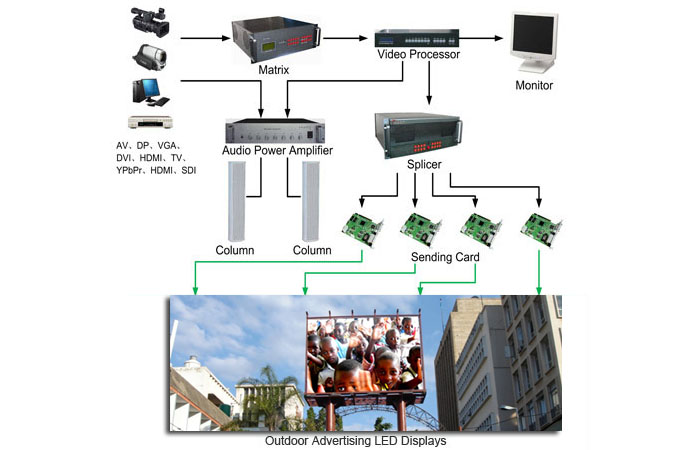

outdoor display Topology

Energy-saving Display




energy saving led display


In nowadays LED market, large and small LED display manufacturers are scrambling to introduce energy-saving LED display, say 50%, 55%, 60% or even 70% more energy-saving concepts. Which one is the real energy saving in the end? Energy saving rather is relying on a particular display hardware and software technology improvements, than the final result on technology innovation and framework design. Very Pixel outdoor P16 1R1G1B, after mature experimental tests, has 2 kinds of energy-saving solution






 Ordinary energy saving display can save for 30% more than traditional display, by applying working voltage of 3.3v to red lamps and 4.2v to G&B.

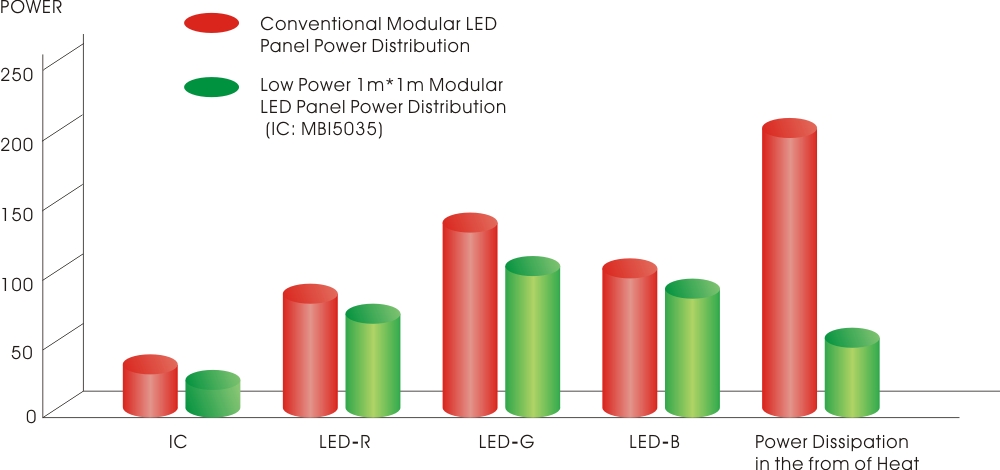

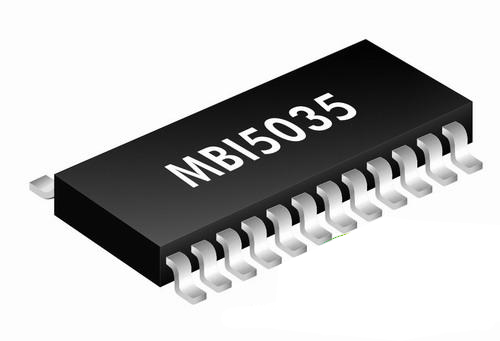

 High end energy saving display can save for 50% more than traditional display, with the working voltage of R/G/B all 3.3v and adopting MBI5035 constant current driving IC.

mbi5035 ic



energy saving led screens

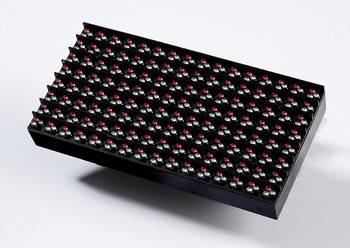

 energy-saving p16 outdoor led display modules

 Features:


1. High consistency in white balance, without color cast from any angle of view;
2. Black masks, and special design for light absorption,The whole screen is in good flatness;
3. Super high contrast, up to 6000:1 contrast ratio;
4. Special sun shade design, the overall design looks flexible, reliable;
5. Vertical and horizontal structure of the special design makes good flatness of suite, no module effect...

 Very Pixel energy saving outdoor LED display P16 1R1G1B have been a shinning star in this industry. A client from Europe has ordered 125.8 square meters. Counted by 14h/day, 7days/week, Energy-saving display can save operation power costs by 10,000 kilo-Walt/h. Counted by 0.15USD per kilo-Walt/h calculation, the annual operation power saving is more than 15,000USD, annual operation power saving per square meter is above 150USD.

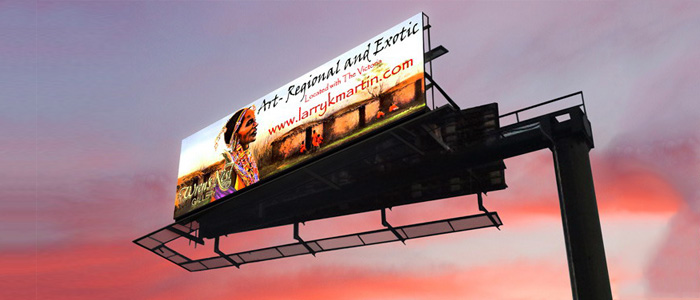

 outdoor energy saving led broad



Energy saving outdoor LED display Specifications
ITEMS MAIN TECHNICAL DATA
Pitch 16mm
Pixel Organization 1R1G1B /color
Color Depth 13 bit/color
LED Type SMD 3535 3 in 1
Module Resolution 16dots * 8dots
Module Size 256mm * 128mm
Cabinet Size(W*H*D) 1024 * 768 * 160mm
Cabinet Resolution 64dots * 48dots
Module Quantity 24 pcs
Cabinet Material Iron or Aluminum
Pixel Density 2500 dots/ ㎡
Color Depth 13 bit/color
Viewing Angle 120°(H)/ 60°(V)
Brightness Approx. 5500cd/㎡
Optimal Viewing Distance 48m
Power Consumption Max.: 550W/㎡ Average: 180W/㎡
Working Method Synchronous or asynchronous
Dimming Control 16 levels-auto, 256-software
Driving Method  Static
Display Refresh Rate ≧600 HZ
Out-of-control Pixel  ≤0.1‰
Screen weight  ≤65kg/㎡ for Iron cabinet / 45kg/㎡ for Aluminum cabinet
Module Display Brightness Uniformity  <3%
Earth Leakage Current  <3mA
Waterproof Level  IP65 front & rear
Working Voltage AC 110V or 220V, 50~60HZ
Working Environment -20~+60℃, 10% to 95%RH
LED Life Span 100,000hours
