Sales promotion on VP-TRANS-I3.91x7.81
Data：2022/4/15 0:00:00From：www.verypixel.comAuthor：Verypixel Marketing Department
Celebration on Verypixel's 15 years' foundation anniversary, here launch our best selling product VP-TRANS promotion at 799USD/sqm including control system.
Transparent LED screen is widely applied to CBD business center, hotel, 5A office, building, automobile 4S shop, airport, sightseeing lift, brand store, etc. Glass wall and shopping window are two most important installations of transparent LED display when used for commercial advertising.
Verypixel transparent LED display can be tailored to different panel sizes to fit into the glass wall frame and installed to the existing frame. It helps to attract potential customers.
|
● Pixel Pitch: P3.91X7.81
|
|
● Dimension: 1000mmx1000mm/500mm
|
|
● Application: Indoor
|
|
● Brightness: 2500 nits
|
|
● Warranty: Two Years
|
|
● Total Area: 120 Square Meters
|
|
|
● High Transparency
Based on the Horizontal arrangement lighting technology, it is up to 80% transparency.
Individual strip design with hot plug. Support front and rear maintenance. Easy to maintain and low cost maintenance.
● Excellent Display Effect
Configure with high refresh rate lC and high-quality LED chips. High contrast, Wide viewing angle, and no shadow nor light dark line.
Cabinet size is customized according to application. Match with the building glass perfectly.
Saving energy by more than 30%, compared with the normal screen. which is energy-saving and environment-friendly
● Outstanding Transparency
Transparency is between 62%-80% with great resolution, doesn't affect the natural lighting Screen can be almost invisible when viewed from 5m away.
● Multiple Installation Methods For Option
VP-Trans LED screen can be installed by hanging, stacking, frame-style wall-mounted.
Detailed Specification
|
LED Module Specifications
|
|
Pixel Pitch
|
3.91X7.81mm
|
|
Pixel Configuration
|
1R1G1B
|
|
Module Resolution
|
128dots(W)*32dots(H)
|
|
Module Pixels
|
4096dots
|
|
Module Size
|
125mm*500mm
|
|
LED Cabinet Specification
|
|
Cabinet Size(W*H*D)
|
1000*1000*75mm
|
|
Cabinet Resolution
|
128dots*256dots
|
|
Cabinet Pixels
|
32768dots
|
|
Material
|
Die Casting Aluminum
|
|
Brightness
|
2500cd/m2
|
|
Pixel Density
|
65536 dots/m2
|
|
Driving Method
|
1/16 scan;constant current
|
|
View Angle
|
140°H,120°V
|
|
Brightness Control
|
Red,Green and Blue 4096 Grade/ Each
|
|
Fresh requency
|
≥1920Hz
|
|
Frame Frequency
|
60Hz
|
|
Input Voltage
|
AC100 - 120V/50Hz /AC200 - 240V/50Hz
|
|
Defects Rate
|
≤0.00001
|
|
Power Consumption
|
Max:160W/Cabinet Average:80W/Cabinet
|
|
Screen weight
|
12kg/sqm
|
|
MTBF
|
>10,000 hours
|
|
Life span
|
≥100,000 hours
|
|
Earth Leakage Current
|
<3mA
|
|
Protective Grade
|
IP43
|
|
Temperature-operating
|
-20℃~50℃
|
|
Humidity-operating
|
10%~95%
|
|

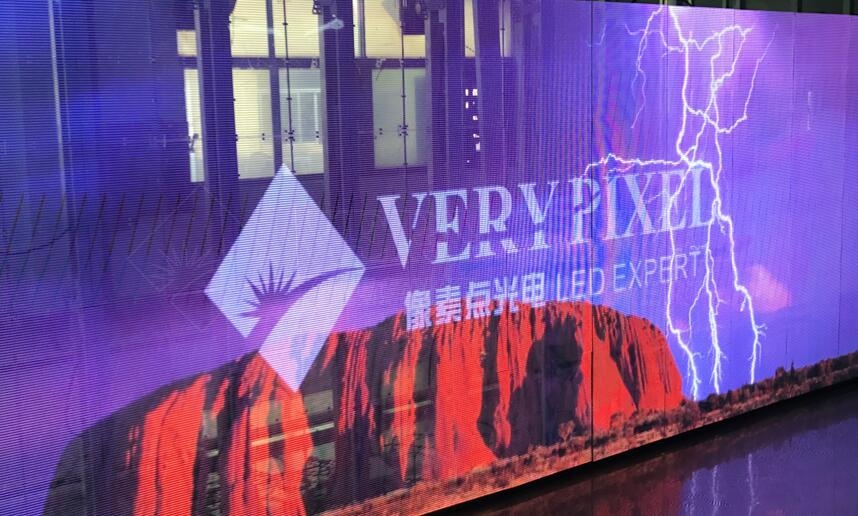

Project Showcase
VERYPIXEL aim to provide our clients with highest quality screens at the most cost performance prices.
