Tag: LED Video Globe, LED Ball, LED Sphere Display

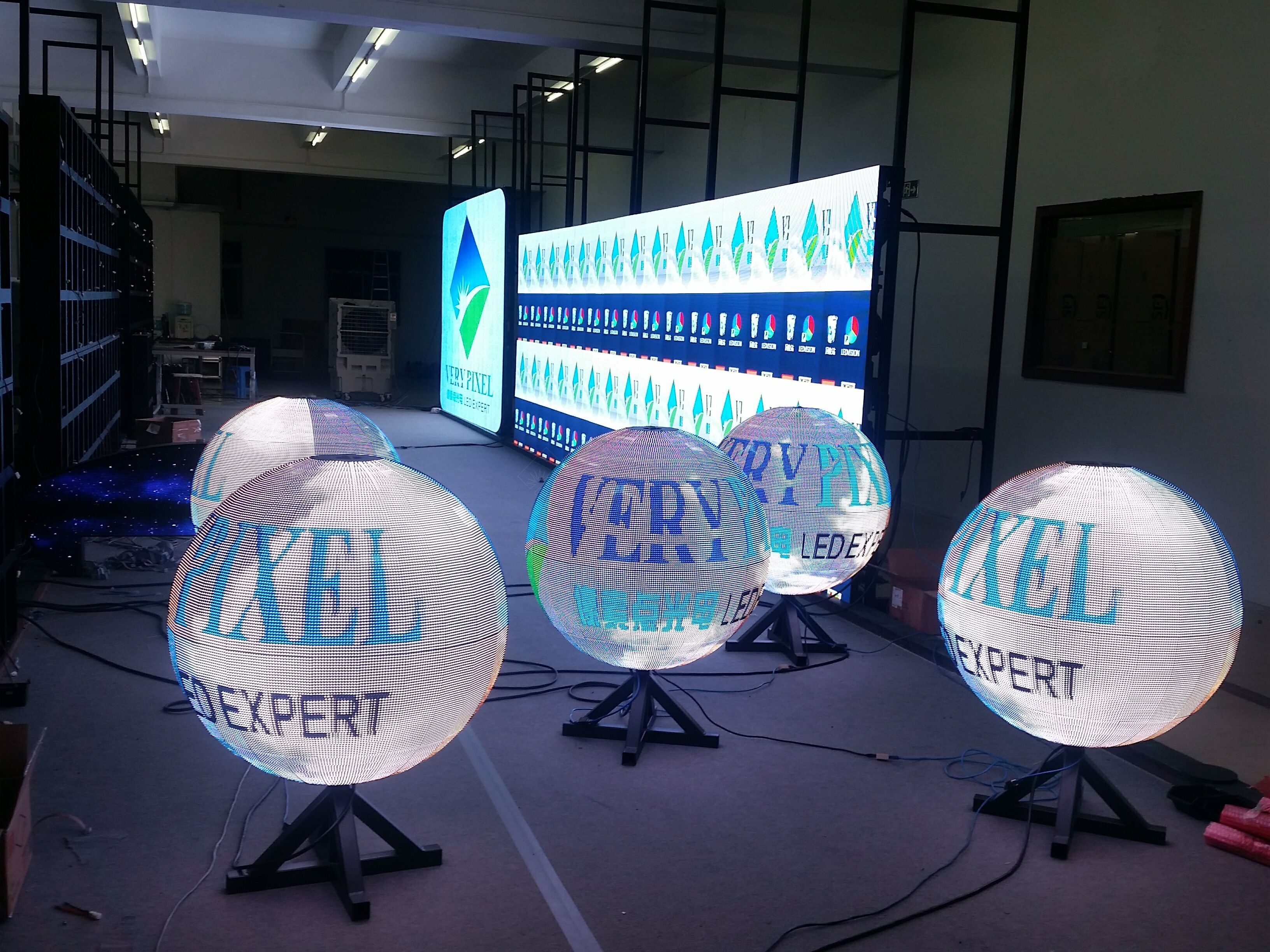

LED video globe or LED ball is one of Verypixel’s most innovative irregular LED display. Actually, it’s shape as a sphere; you can also call it LED sphere. Please pay attention to our LED ball picture effects at youtube video >>>
Verypixel 360 degree full color led sphere display is one of most innovative, unique and amazing products in the whole LED industry. Breaking through the traditional viewing frame, brings special aesthetics and attract audience in first time which bring dynamic, extraordinary visual effect and deeply unforgettable impression. It is mainly applied by hotels, stages or clubs etc.
|
LED Sphere Display features:
● Customizable: VP-BALL diameter size can be customized from 1m to 6m，Allow hanging installation, stand on ground or mobile using.
● Effect: The creative appearance and wonderful showing effect attracts most attention during the usage.
● Structure: Aluminum material structure which lighter weighs and better for heat dissipation.
● Design: Special PCB design which can make sure the showing picture distortionless.
● Maintain: Service front and rear maintenance.
|

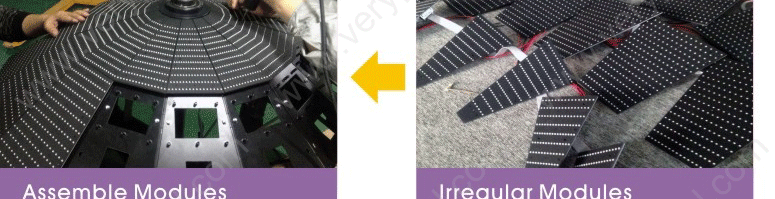

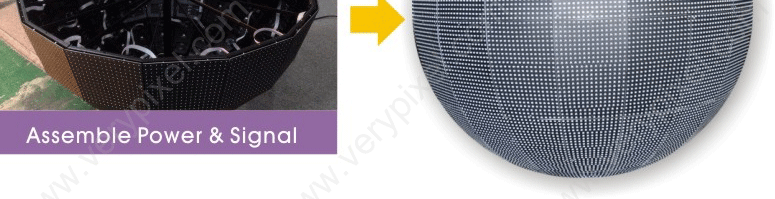

LED Ball Display Designing Concept
Applicationof VP-BALL LED Display
LED Ball Display Specifications
|
Series
|
VP-Ball-I4
|
VP-Ball-I5
|
VP-Ball-I6
|
VP-Ball-I7.62
|
VP-Ball-I10
|
|
Contrasts (Max. /Min.)
|
1.1:1
|
1.1:1
|
1.1:1
|
1.1:1
|
1.1:1
|
|
Pixel Pitch
|
4mm
|
5mm
|
6mm
|
7.62mm
|
10mm
|
|
LED Configuration
|
SMD 2020
|
SMD 3528
|
SMD 3528
|
SMD 3528
|
SMD 3528
|
|
Pixel Density
|
62500 Pixels /m²
|
40000 Pixels /m²
|
27777 Pixels /m²
|
17222 Pixels /m²
|
10000 Pixels /m²
|
|
Brightness
|
≥1500cd/ m²
|
≥1500cd/ m²
|
≥1500cd/ m²
|
≥1500cd/ m²
|
≥1500cd/ m²
|
|
Scanning Mode
|
1/16 Scan
|
1/8 Scan
|
1/8 Scan
|
1/4 Scan
|
1/4 Scan
|
|
Gray Scale
|
≥14bit
|
≥14bit
|
≥14bit
|
≥14bit
|
≥14bit
|
|
Refresh Frequency
|
≥600HZ
|
≥600HZ
|
≥600HZ
|
≥600HZ
|
≥600HZ
|
|
Work Consumption
|
650W/ m²
|
650W/ m²
|
650W/ m²
|
650W/ m²
|
650W/ m²
|
|
Viewing Angle
|
Horizontal(H)≥120º /Vertical(V)≥120º
|
|
Diameter
|
1000mm-6000mm, Customizable
|
|
Work Environment
|
Working Temperature: -30℃ to 60℃, Working Humidity: 10% to 90%
|
|
Life Time
|
≥100000h
|
|
Work Voltage
|
AC90V-260V/50-60Hz
|
|
IP Level
|
IP45
|
