• VP-I7.62 Indoor Full Color LED Display
  • Type:Indoor Full Color Display
  • Model:VP-I7.62
  • Hits:18381
  • Available applications:
    In
    door advertising, billboards,
    Information Display and so on

    Project Case>>>



Tag: P7.62 indoor led modules, P7.62 SMD led display, indoor SMD led video wall

Products’ function advantages
>> Verypixel’s indoor LED signs are an ideal solution for your indoor entertainment needs. The SMD based on LED signs have tighter pitch sizes, making it ideal for use indoors. The SMD based LED signs are composed of bowl-shaped compartments that contain 3 colored LED lamps, making up one pixel. The SMD design allows for all three colors to be placed into one small package chamber, and then color could be mixed inside of the package, improving the quality of the displayed image, while allowing for a higher blending of colors. The SMD LED signs consume much less energy, while being lighter than your ordinary LED signs.
>> The SMD model consists of 4mm, 5mm, 6mm, 7.62mm, or 10mm pitches. The different pitches will allow for a sharper image quality or a longer range of visibility. 4mm, the tightest pitch of Very pixel’s indoor SMDs, will be the highest of quality, while the 6 and 7.62mm pitches will mix to have excellent quality and visibility range. The 10mm would provide the longest range of visibility amongst the various pitches. Choosing the correct pitch will ultimately determine the effectiveness of the SMD indoor LED signs.



LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 150-200mcd 120º/120º 620-630nm 25℃,20mA
Green LED 260-330mcd 120º/120º 520-535nm 25℃,20mA
Blue LED 55-65mcd 120º/120º 465-475nm 25℃,20mA



Module Parameters

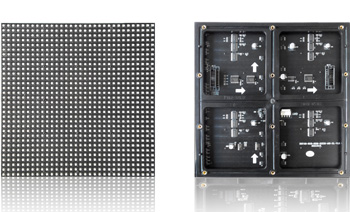

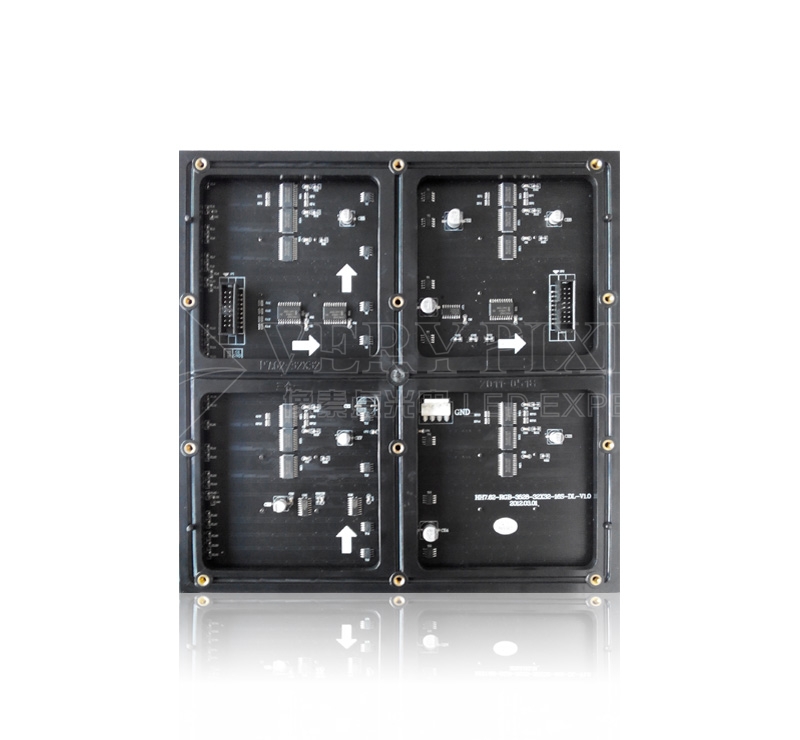

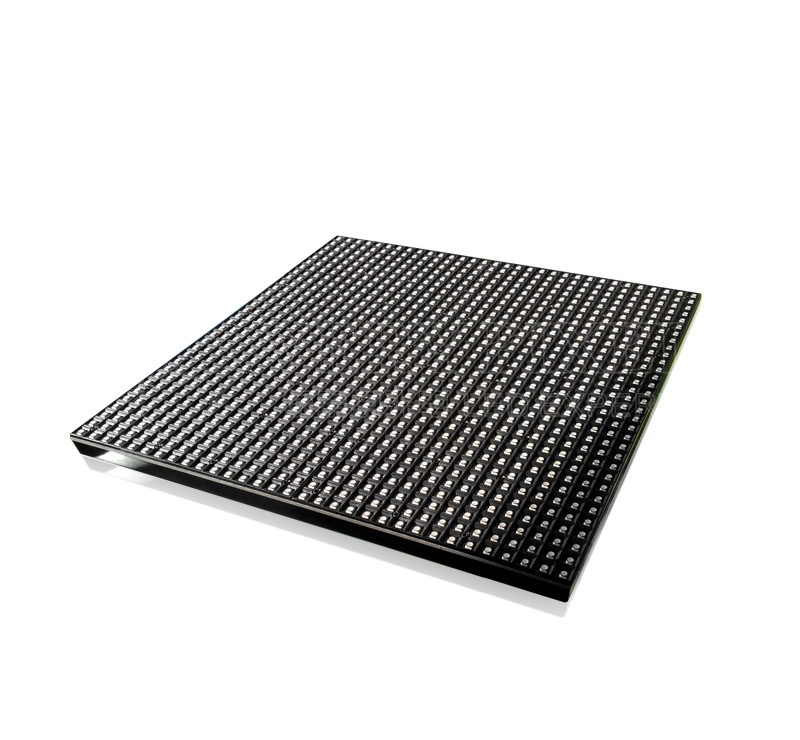

Pixel Pitch 7.62mm  P7.62 Indoor Full Color LED Display modules
Pixel Configuration 1R1G1B SMD 3in1
Module Resolution 32dots*32dots for real
Module Pixels 1024 dots
Module Size 244mm*244mm
Module Weight 0.59KG



Cabinet Parameters

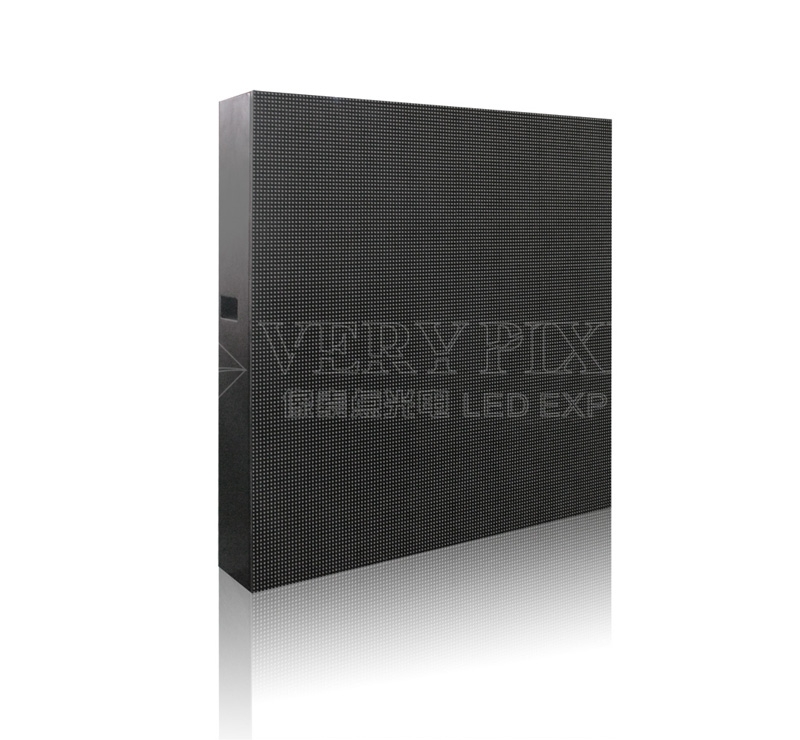

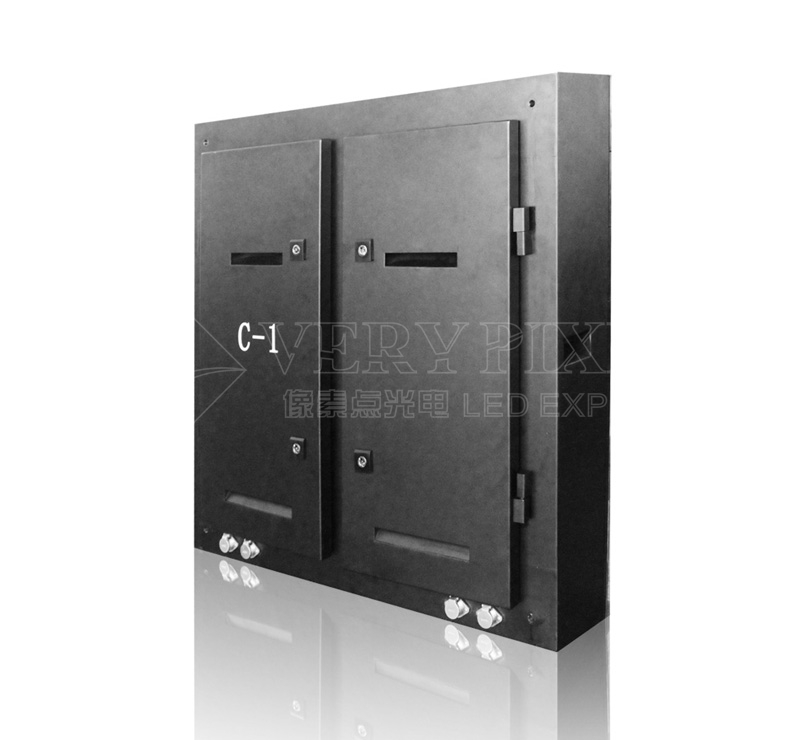

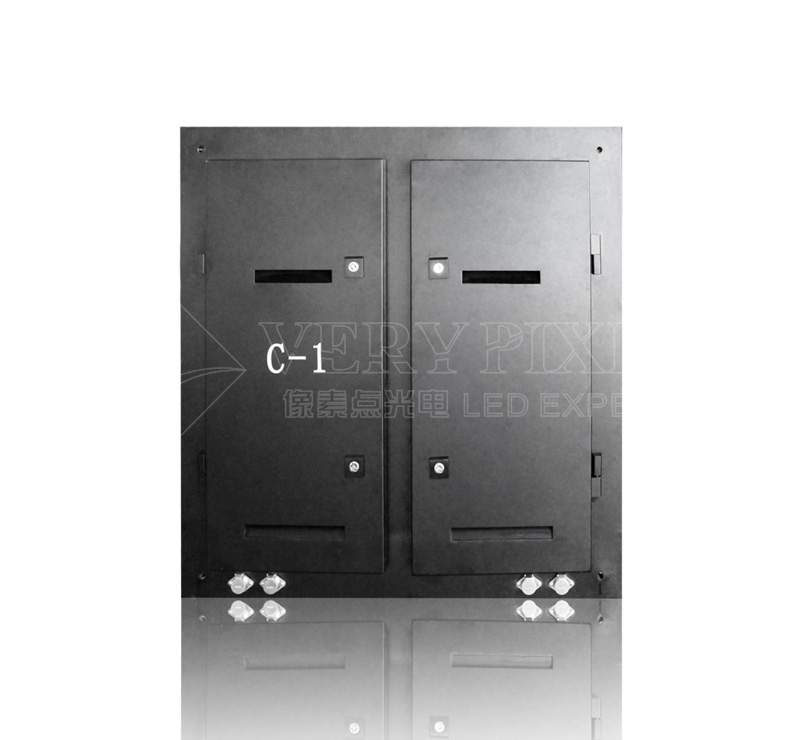

Cabinet Size(W*H*D) 976*976*160(mm)  P7.62 Indoor Full Color LED Display screen cabinet
Cabinet Resolution 128dot*128dot for real
Module Quantity 16 pcs
Cabinet Pixels 16384 dots
Pixel Density 17222 dot/sqm
Avg. Power Consumption 250W/sqm
Max. Power Consumption 750W/sqm
Material Iron or Aluminum
Cabinet Weight 35KG for iron cabinet;
24KG for aluminum cabinet



Screen Parameters

Brightness ≥2000cd/sqm
Contrasts (Max. /Min.) 1.1:1
Driving Method Static
View Angle Horizontal 120° Vertical 120°
Optimal Viewing Distance 7m to 100m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥600Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤50kg/sqm for Iron cabinet /35kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP45
Temperature-operating ﹣40℃~60℃
Humidity-operating 10%~90%
Operating System  Windows98/me/2000/NT/XP/win7
