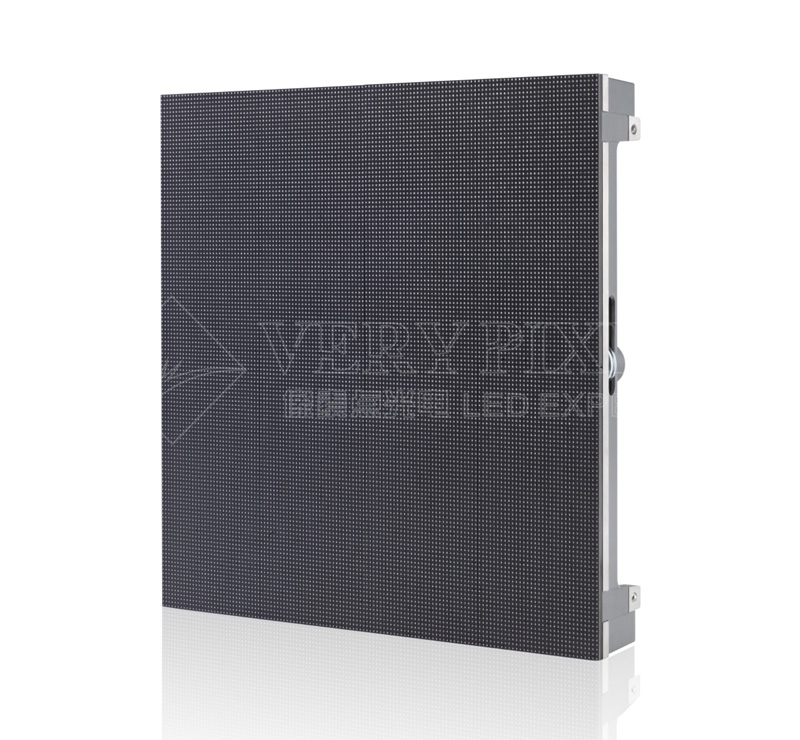

• VP-Diamond Outdoor Series
  • Type:Rental LED Display
  • Model:VP-Diamond Outdoor
  • Hits:11281
  • Available applications:
    Out
    door rental, information display
    stage background and ADs Media.

Tag: rental led display outdoor, Die-casting Cabinet led sign, outdoor high-end led display application

Product Vedio



Product Features





Light weight: The aluminum die-casting technology makes the single cabinet as light as 8.3KG.

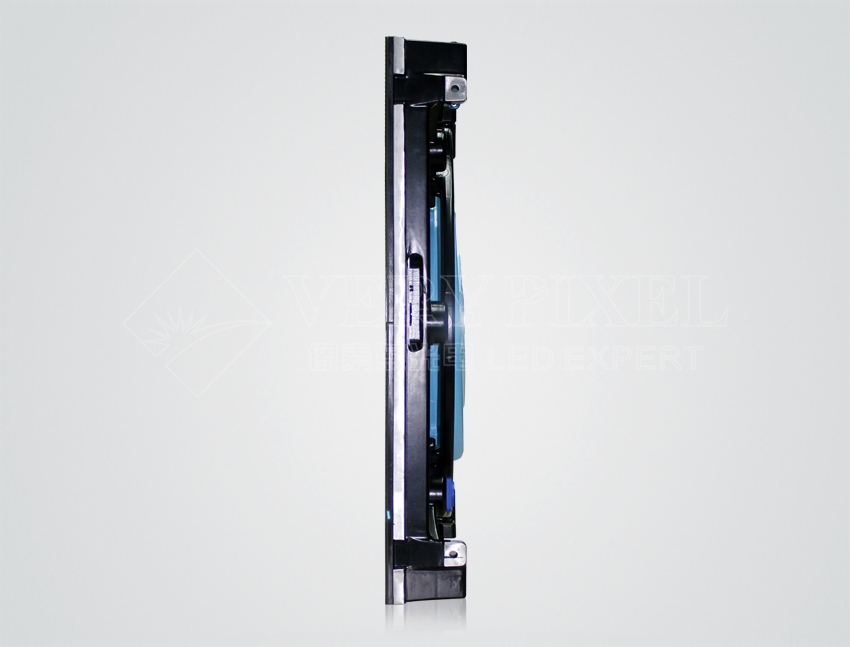

Ultra thin: The thinnest point of the cabinet is only 72mm, making it easily to be fitted in small room.
Easy to install: No need of other tools. It takes only 15 minutes for 2 workers to finish the 20 sqm installation.
High IP: The IP65 insures the reliable operation in severe environment.
Easy to maintain: No need to disassemble the whole screen for maintenance. Each component can be detach individually for that purpose.
Noiseless: The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
Ghost canceling: Exquisite and clear picture quality with no ghost. Both upstream and downstream ghosts can be automatically canceled.
High refresh rate: Over 2880Hz refresh rate to ensure the picture wrinkle-less, line-less and stable.
Low brightness and High gray scale: 14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.

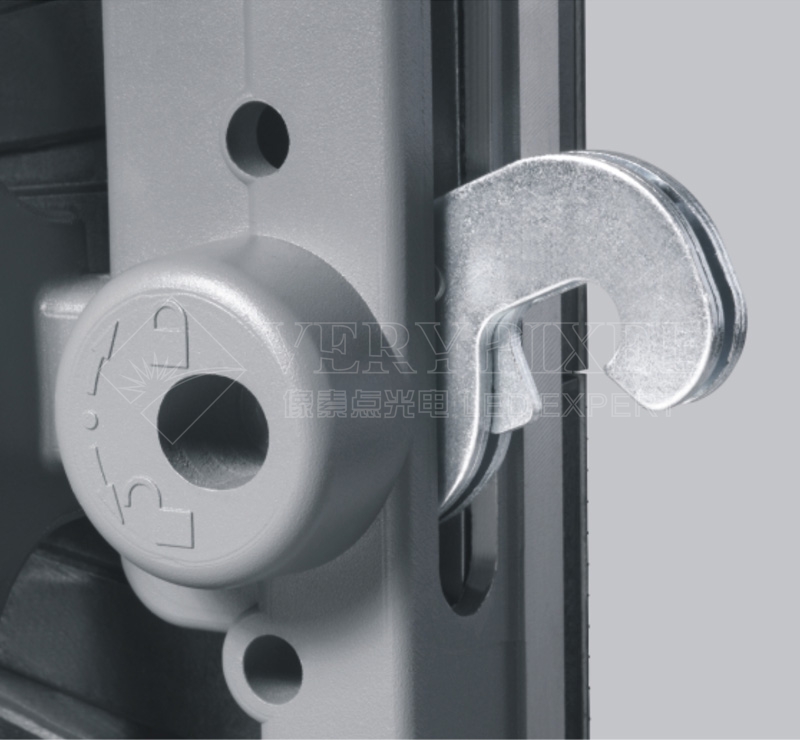

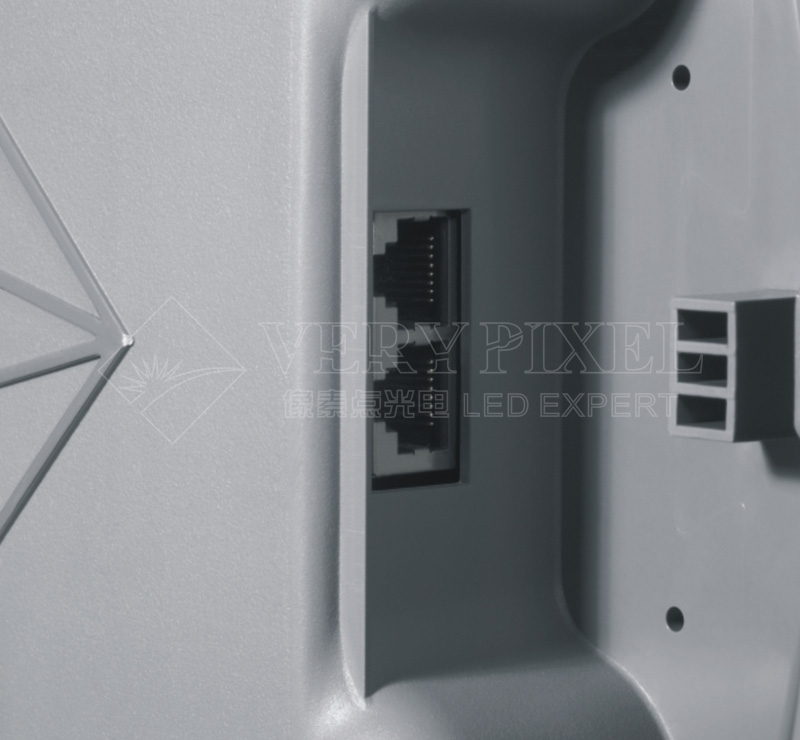

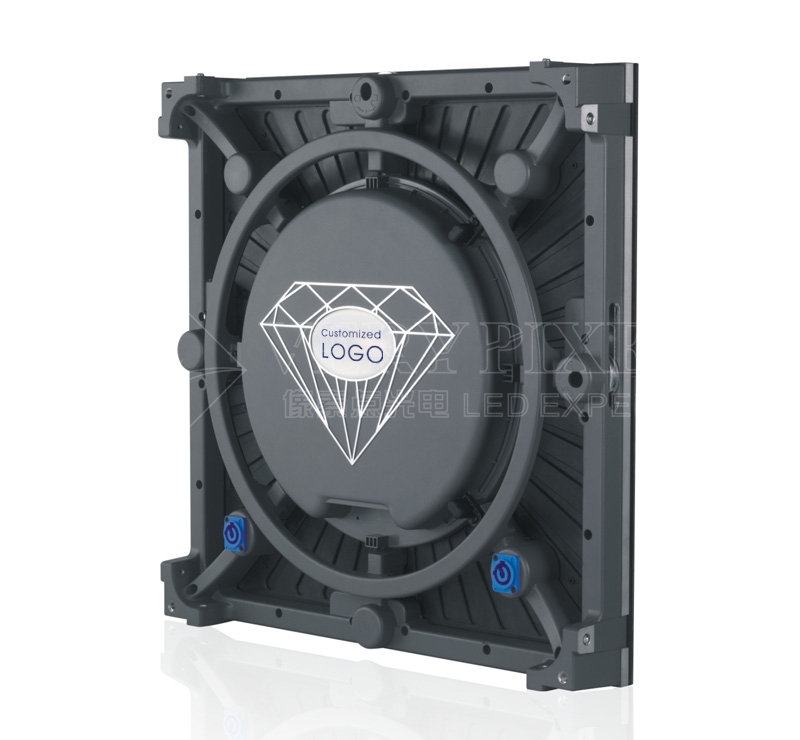

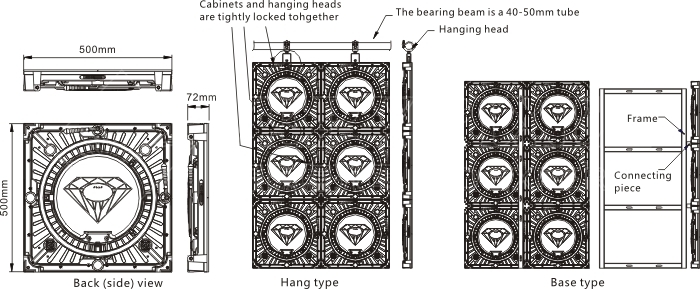

Cabinet Structure


outdoor high-end die -casting led display




Product Parameters

 Items

 Parameter

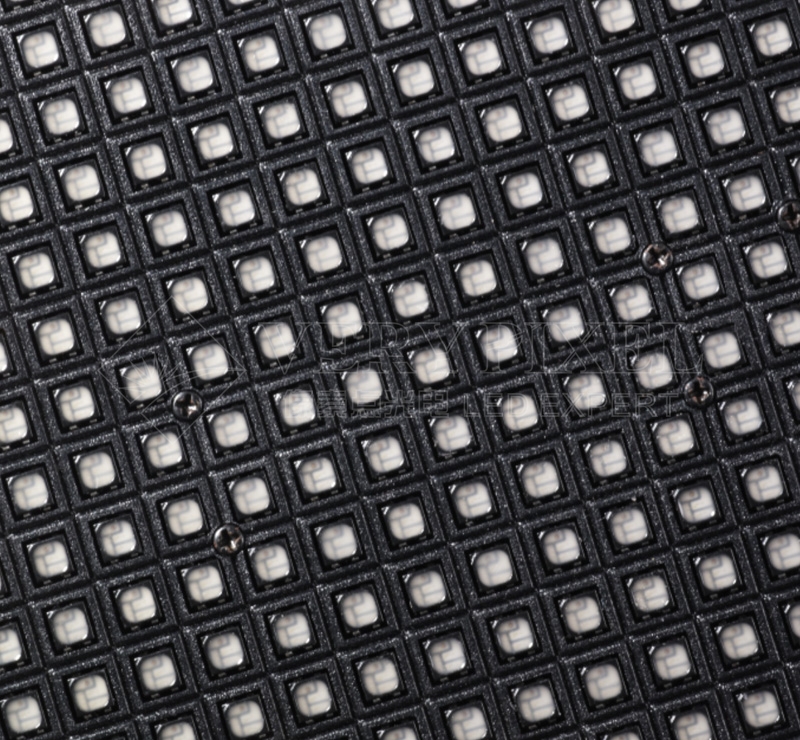

 LED Encapsulation

 SMD 3535

 Pixel Pitch

 6.25mm

 Module Resolution(W*H)

 80* 80

 Pixel Configuration

 1R1G1B(3 in1)

 Pixel Density

 25600 pixel/sqm

 Driving Method

 1/4 Scan

 Refresh Frequency

 >2880Hz(Supporting high refresh rate and depending on system configuration)

 Driving IC

 Special constant current IC with high refresh rate and high gray scale

 Grey Scale

 >14BIT(According to system and IC equipped)

 Module Size

 500mm*500mm

 White Balance Brightness

 >6000cd/sqm

 Color Temperature

 8000K ± 500(adjustable)

 Viewing  Angle

 Horizontal  Angle 140°     Vertical  Angle 120°

 Optimal Viewing Distance

 >7m

 Working Voltage

 AC 220V±10%

 Max Power Consumption

 250W/pcs(White Balance)

 Avg Power Consumption

 125W/pcs(Normal Working)

 Lifetime

 50000 Hours

 Operating Temperature

 -10°C to 50°C

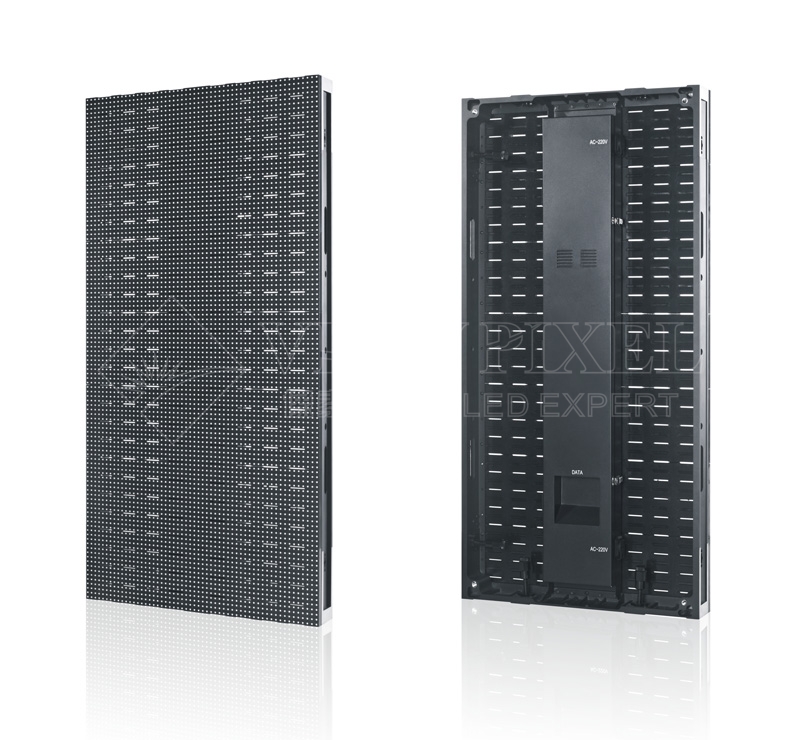

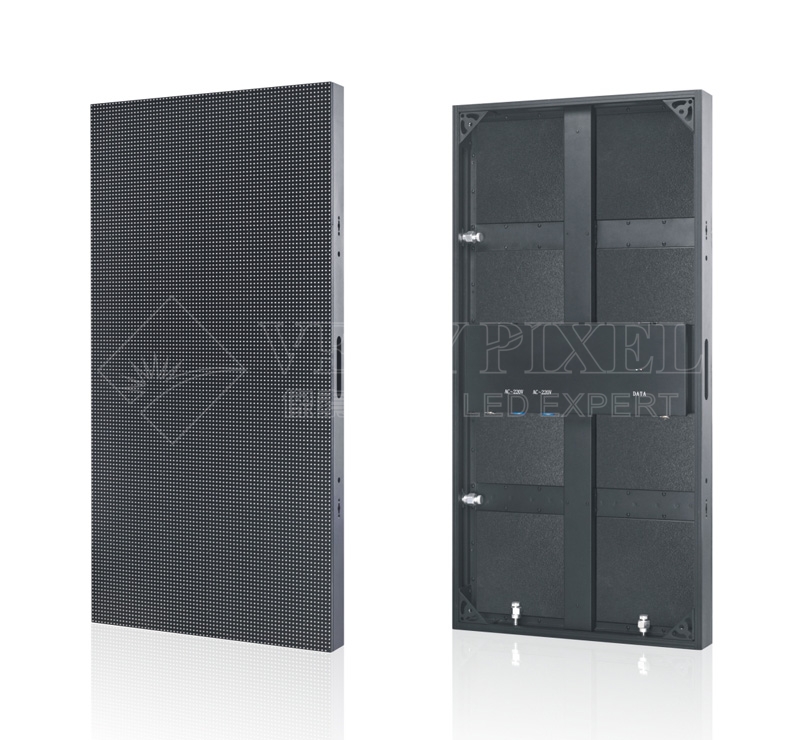

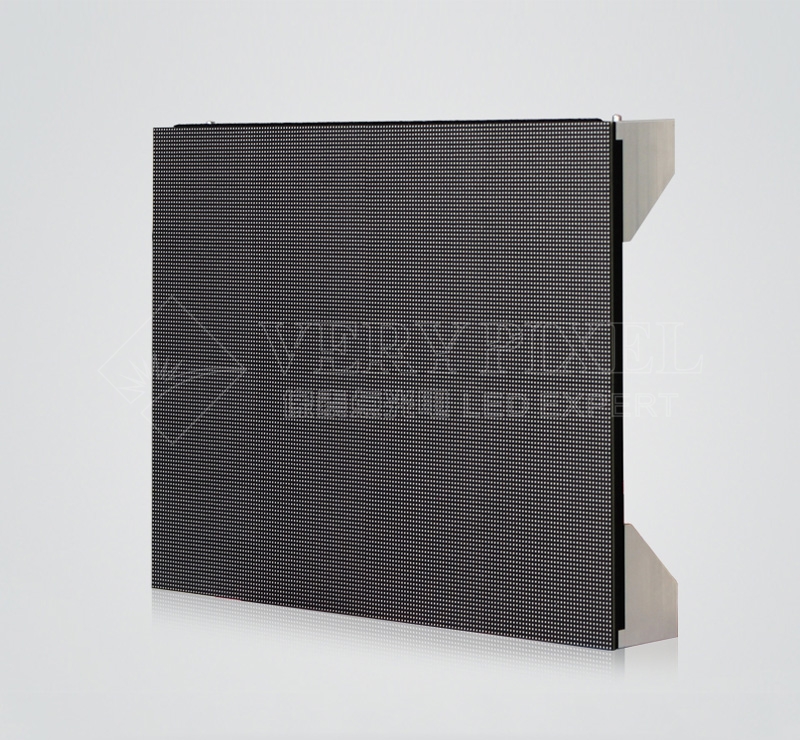

Related Products
