• VP-Flex P37.5 Flexible LED Display
  • Type:LED Flex Display
  • Model:VP-FLEX-37.5
  • Hits:11193
  • Available applications:
    Rental business and so on.

    Project Case>>>


     Video Demo



Tag: soft curtain LED display, flexible mesh screen, Flexible scroll stage screen



Verypixel once again launched soft led display and this is the second version of our soft series: VP-FLEX.

Flexible LED Stage Background has some breakthroughs on structure designing and electronics. Many constant customers are waiting for this new shining star product.



Product Features

>> Super easy and fast installation design–Enables super easy and fast installation/breakdown with minimal manpower.

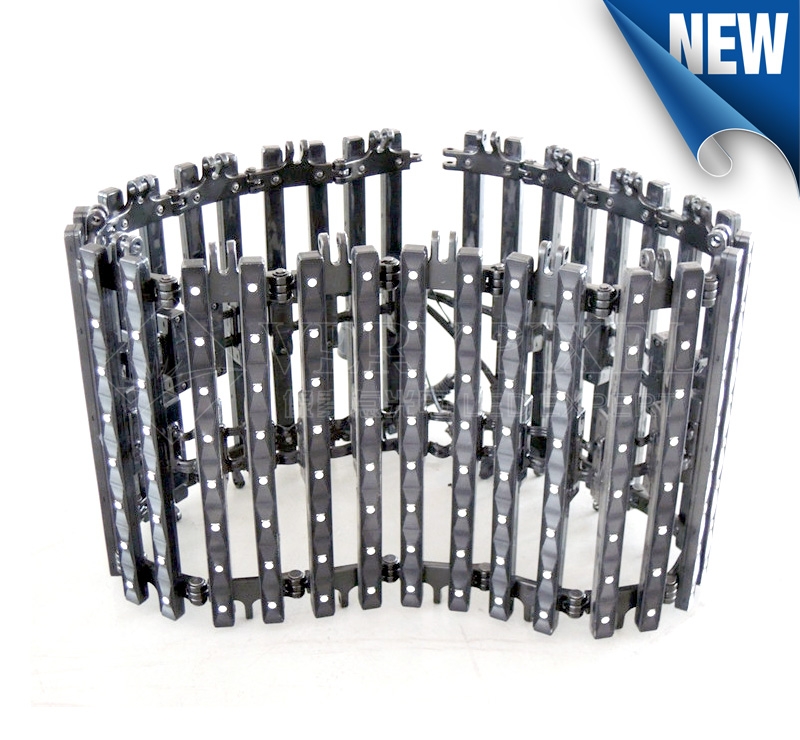

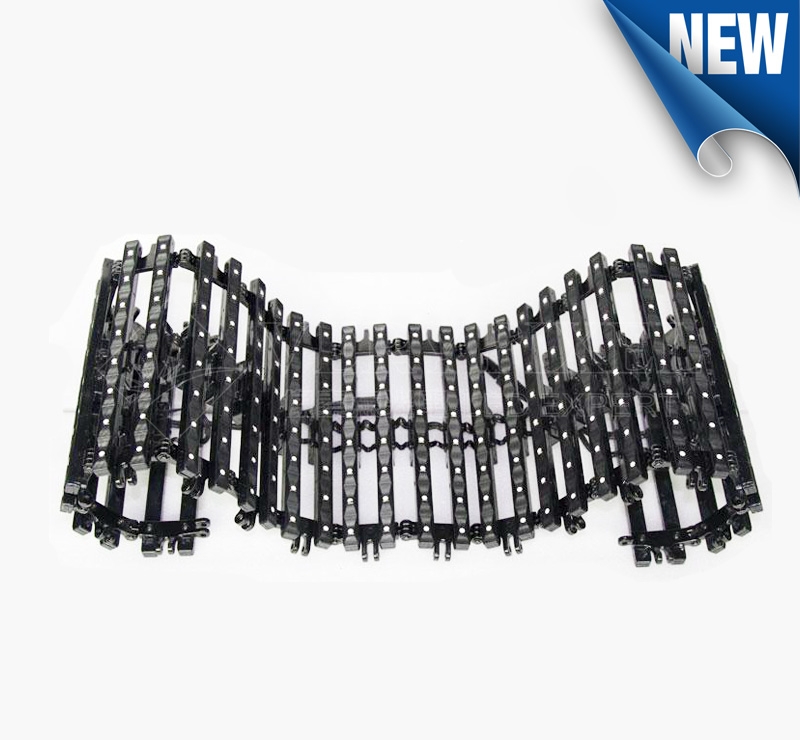

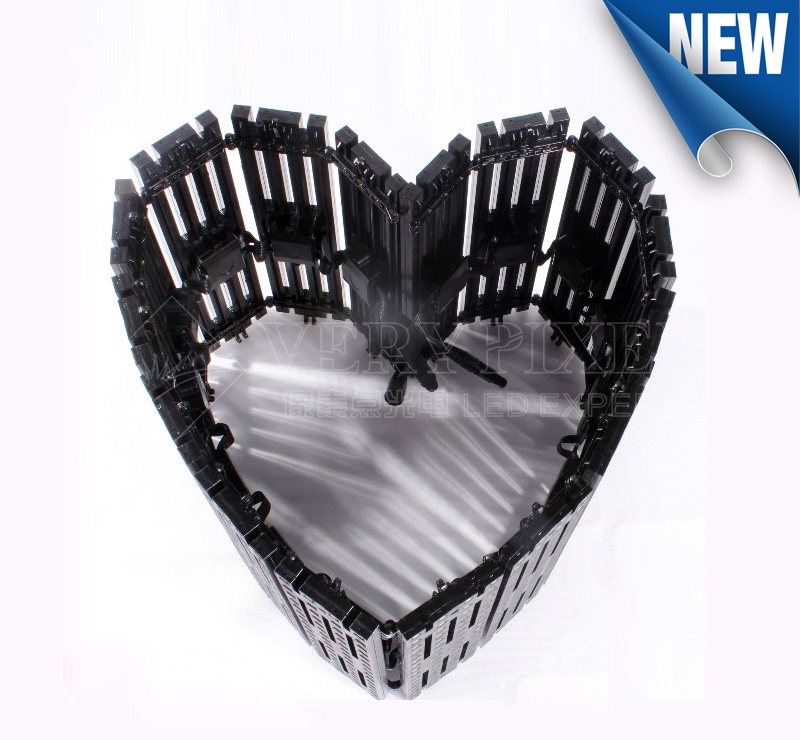

>> Super flexible mode- Can bend, wrap, drape, and fold to conform to even the most unusual shape and size.
>> Easy and fast maintenance- enable site emergency solution and quick reaction.Creativity makes our products unique and it will satisfy all your needs for stage lighting area.
>> Flexible LED display/soft LED display for stage lighting Easy installation: Just hung on the truss or supported structure. Easy transportation: Fold like clothes. Pack inside the flight case. Easy to operate: Ready to use, just need to plug with power source, ready to work as a TV.
>> Easy to repair, do professional skill required and especially suit for rental business.Light weight and small volume, portable and movable.Several units can join together from horizontally and vertically.

soft curtain LED display,flexible mesh screen,Flexible scroll Curtain LED

LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 530mcd 110º/110º 621-636nm 25℃,20mA
Green LED 1300mcd 110º/110º 520-535nm 25℃,20mA
Blue LED 280mcd 110º/110º 461-476nm 25℃,20mA



Pixel Parameter

Pixel Pitch 37.5mm
Pixel Configuration SMD5050 3 in 1
Module Resolution 711 dots /sqm
Color Matching Analysis Color matching of different color brightness is R : G : B / 3 : 6 : 1



Module Parameter

Module Pixels 1 dots × 8 dots = 8 dots
Module Size 10 mm × 300 mm
Switch Voltage Loading 5v / 40A, 5v / 30A
Control Driver Static
Control Chip MBI 5041
Dot Precision ≤ 0.5mm
PCB Precision < 1mm
Grounding Current Leakage 2 mA
PCB Temp. Dispersion Metal ≤ 40K,Insulation ≤ 65K
Blind Spot Rate ≤ 0.0001



Screen Parameter

Display Brightness >2000 cd / m²
Brightness Adjustment 256 grade automatic
View Angle 110 degrees (Horizontal ), 110 degrees (Vertical)
Best View Distance 28 meters
Grey Scale 65,536 grades
Display Colors 16.7 M
Frame Rate ≥ 60 Hz
Refresh Rate ≥ 800 HZ
Data Transmission Parallel RS422 mode
MTBF 7,000 hours
Screen Life Span >100,000 hours
MTBF >10,000 hours
Life Span ≥100,000 hours
Operating Voltage AC 110 / 220 V, 50 – 60 HZ
Screen Power Consumption Max: 200 w / m²,Average: 60 w / m²
Color Temperature 6,500 K ±500
Screen Body Weight Less than 8 KG / m² (do not include outer frame)
Control Distance 100 meters(optical fiber transmission 500 M to 20,000 M)
Storage Environment Temperature - 40 ℃ to + 85 ℃
Working Environment Temperature - 20 ℃ to + 60 ℃
Working Environment Humidity 10% to 95% RH
Certifications FCC, CE, RoHS



System Parameter

System Operating Platform Microsoft Windows XP or higher
Computer Display Mode 1,024 x 768
Control System PCTV(Optional)+ DVI + MCC + Fibre Optic(Optional)
Video Signal RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
Input Signal S-Video, VGA, RGB, Composite Video, SDI
