Part 1: Control Cards

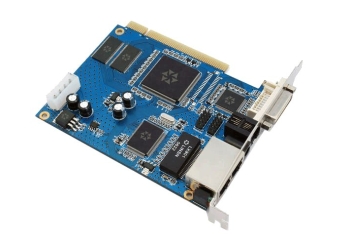

 Linsn sending card  Linsn receiving card

Linsn sending card
installed in PC motherboard sending data to LED display

Linsn receiving card
installed inside cabinet receiving data

 Colorlight sending card  DBstar receiving card

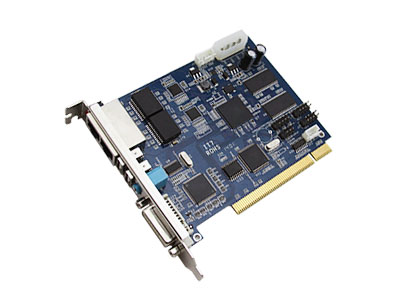

Colorlight iT7 Sender Card
Installed in PC motherboard sending data to LED display

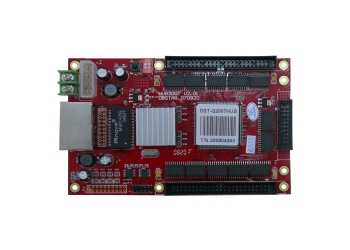

Colorlight i5 A-F Reciver Card
A dual-mode card which makes both synchronous and asynchronous system available and the two modes can be seamlessly switched

 novastar sending card  Novastar receiving card

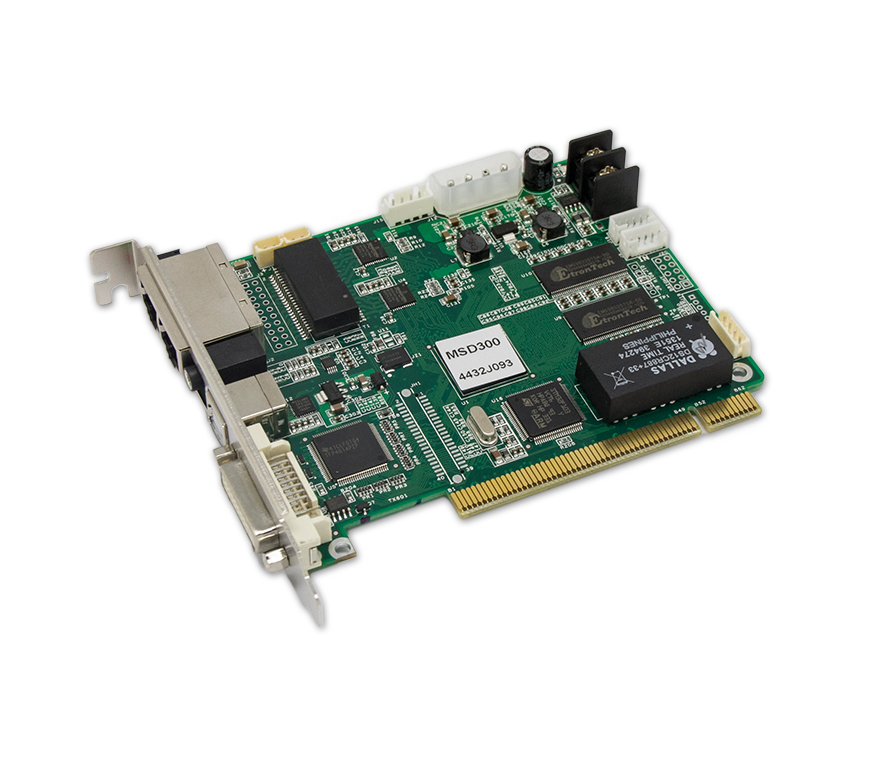

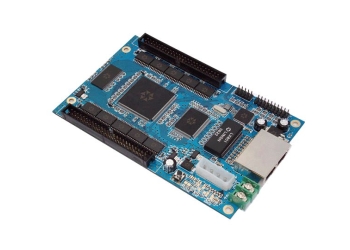

Novastar sending card
installed in PC motherboard sending data to LED display

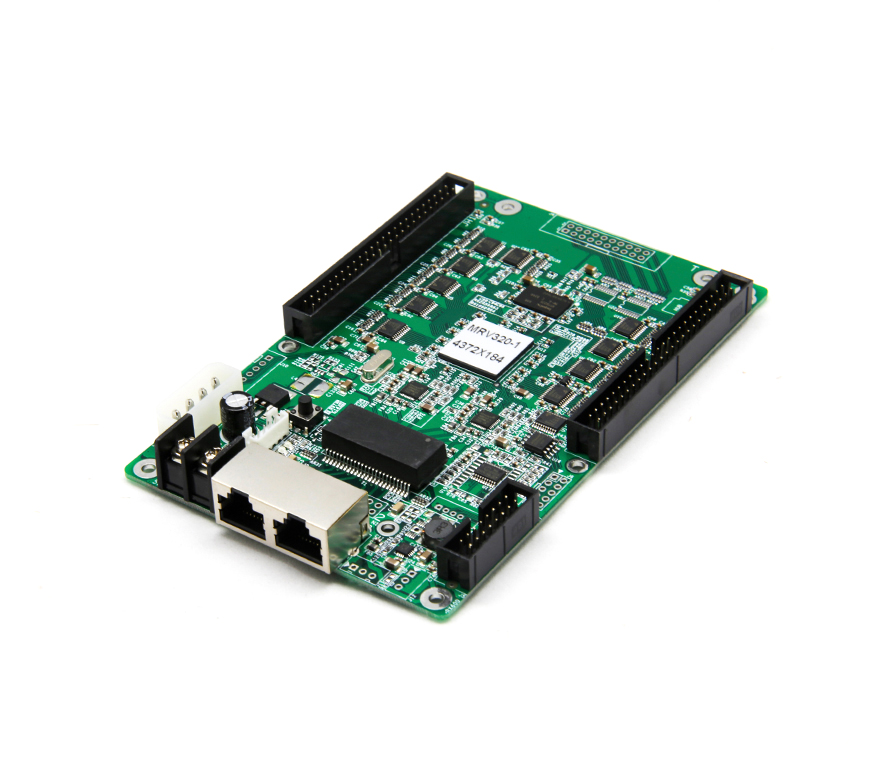

Novastar receiving card
installed inside cabinet receiving data

 Lytec control card  Xixun control card

Lytec control card
installed inside cabinet control LED display

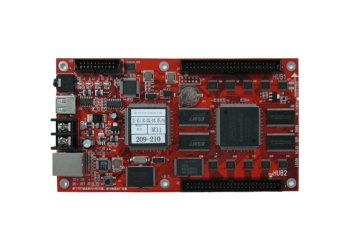

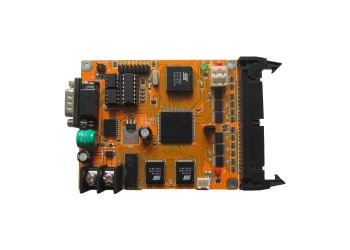

Xixun control card
installed inside cabinet control LED display

 Graphic card  Transfer card

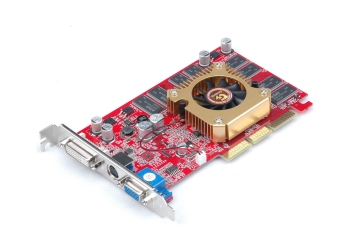

Graphic card
control display mode

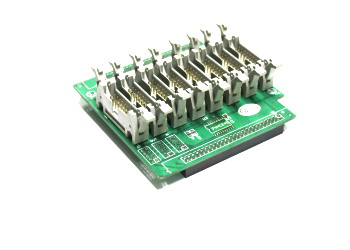

Transfer card
inserted receiving card to distribute data



Part 2: Wire Rods

 RJ45 internet cable  USB cable

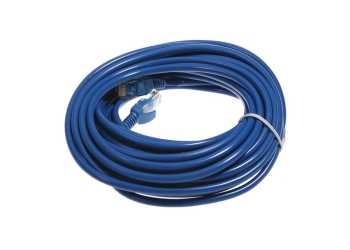

RJ45 internet cable
connect led display with sending card, transfer data

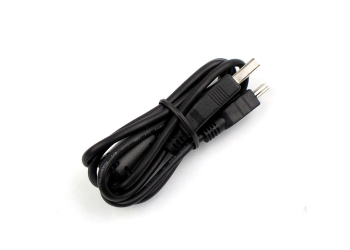

USB cable
connect sending card with PC board

 DVI calbe  VGA cable

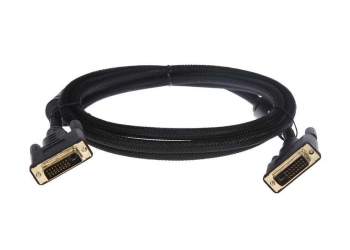

DVI calbe
connect DVI and sending card

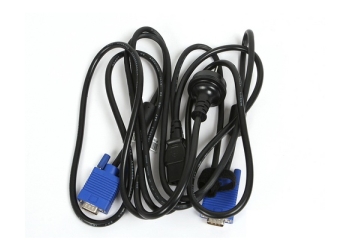

VGA cable
connect VGA and sending card

 Power cable and internet cable with flight connector  Three core wire

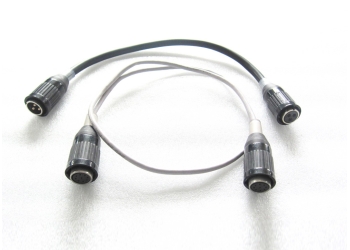

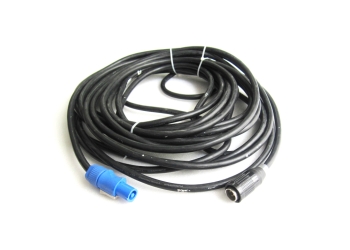

Power cable and internet cable with flight connector
connect cabinets

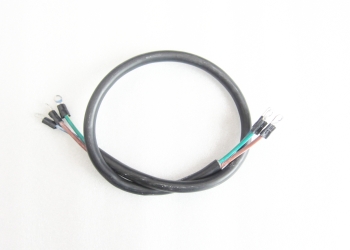

Three core wire
connect AC220V with LED display

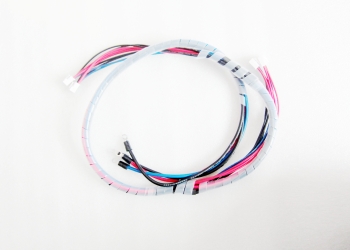

 Module flat cable  Flat cable in cabinet

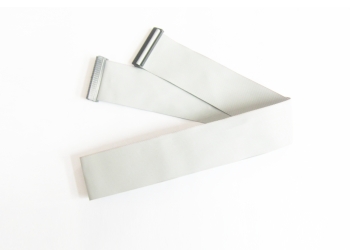

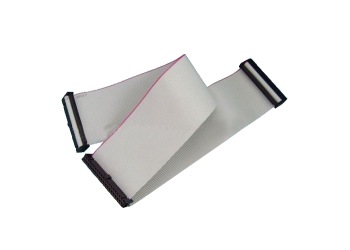

Module flat cable
connect modules transfer data

Flat cable in cabinet
transfer data from transfer card to modules



 Power supply cable  Power supply cable

Power supply cable
connect cabinets

Power supply cable
connect power supply with modules



Part 3: Erecting Tools

 M4X10MM screw  Hexagon socket head cap screw

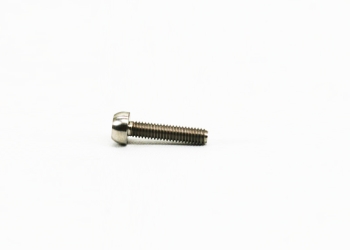

M4X10MM screw
fix modules to cabinets

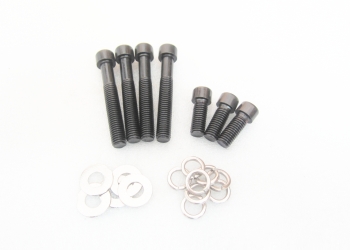

Hexagon socket head cap screw
M10X60 & M10X25, connect with brace, fix cabinet

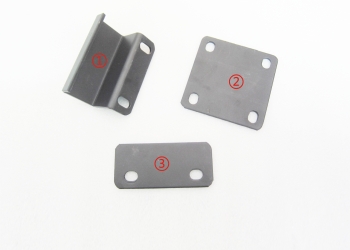

 Brace  Multimeter

Brace
Z board:120×80flat board:120×120flat board:120×60

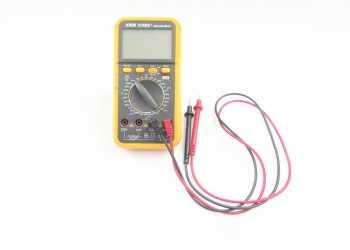

Multimeter
test current and resistance

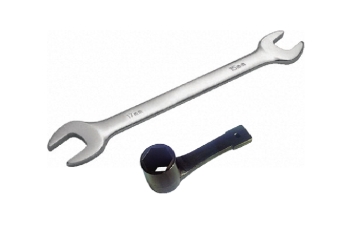

 Open spanner  Hexagon spanner

Open spanner
Installation tool

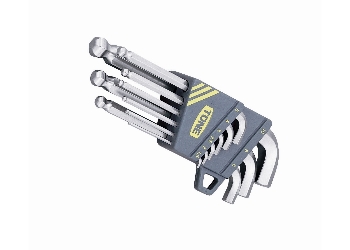

Hexagon spanner
Installation tool



 Cabinet key  Screwdriver

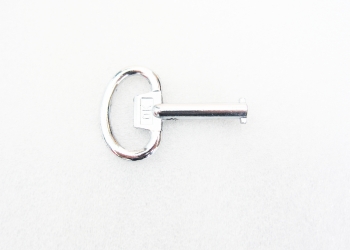

Cabinet key
open and close cabinet backdoor

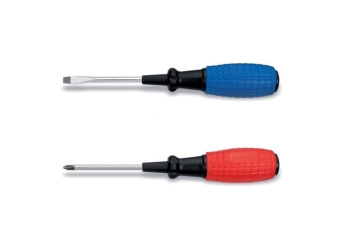

Screwdriver
Installation tool



 ①Hanging beam②footing beam  Steel Truss

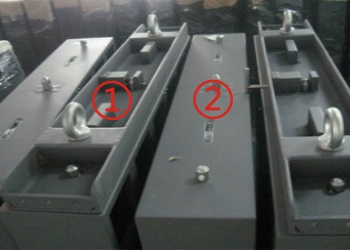

Hanging beamfooting beam
hang LED display

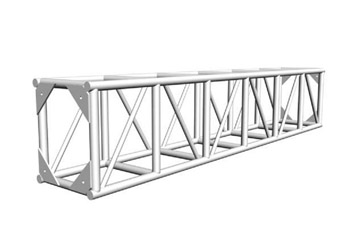

Steel Truss
hanging rental LED display



Part 4: Products and Components

 led display modules  led display cabinet

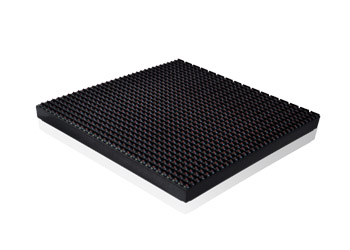

LED display module
cabinet composition

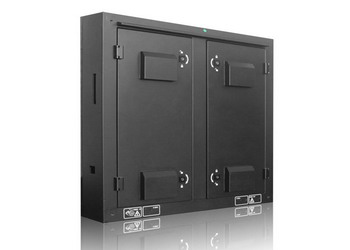

LED display cabinet
LED screen composition

 LED display power supply  LED display cabinet Fan

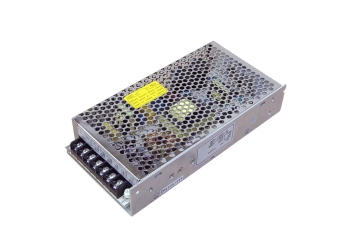

LED display power supply
instaledl inside cabinet, transfer AC220V to DC 5V

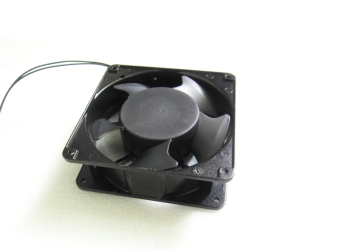

LED display cabinet Fan
installed inside the cabinet to dissipate heat



Part 5: Peripheral Equipment

 IPC  Video processor

IPC
control LED display

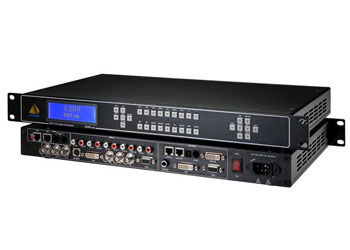

Video processor
connect with all kinds of signal sources and process video

 Video Splitter  Distribution box

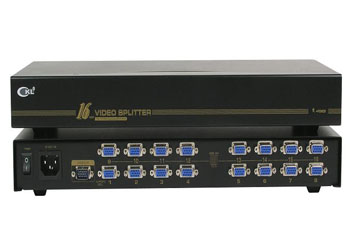

Video Splitter
instaledl inside cabinet, transfer AC220V to DC 5V

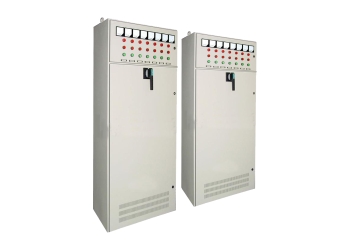

Distribution box
power up LED display
