• VP-PAD Series
  • Type:Rental LED Display
  • Model:VP-PAD Indoor Series
  • Hits:12861
  • Available applications:
    Indoor rental, information display
    stage background and so on.

Tag: rental LED screen indoor,die-casting cabinet LED display,rental LED video pad,fast maintenance rental screen

Product Features





Light weight: The aluminum die-casting technology makes the single cabinet as light as 8.5KG, which is convenient for assembly and transportation.
Seamless connection: The aluminum die-casting technology, together with the high-precision CNC procession, makes the precision reach ±0.05mm so as to achieve seamless assembly.
Low power consumption: Combined with the brightness auto-adjusting technology and PFC power supply, low current can save energy over 35%, which in other words is to save money.
Easy to maintain: No need to disassemble the whole screen for maintenance. Each component can be detached individually for that purpose.
Noiseless: The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
Ghost canceling: Exquisite and clear picture quality with no ghost. Both upstream and downstream ghosts can be automatically canceled.
High refresh rate: Over 2880Hz refresh rate to ensure the picture wrinkle-less, line-less and stable.
Low brightness and High gray scale: 14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.

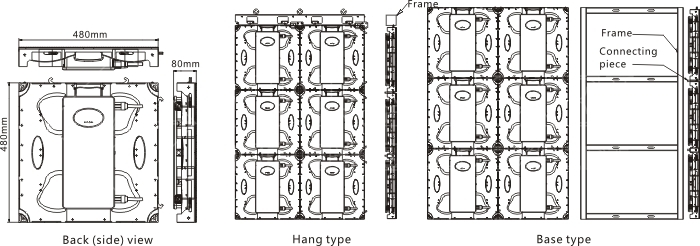

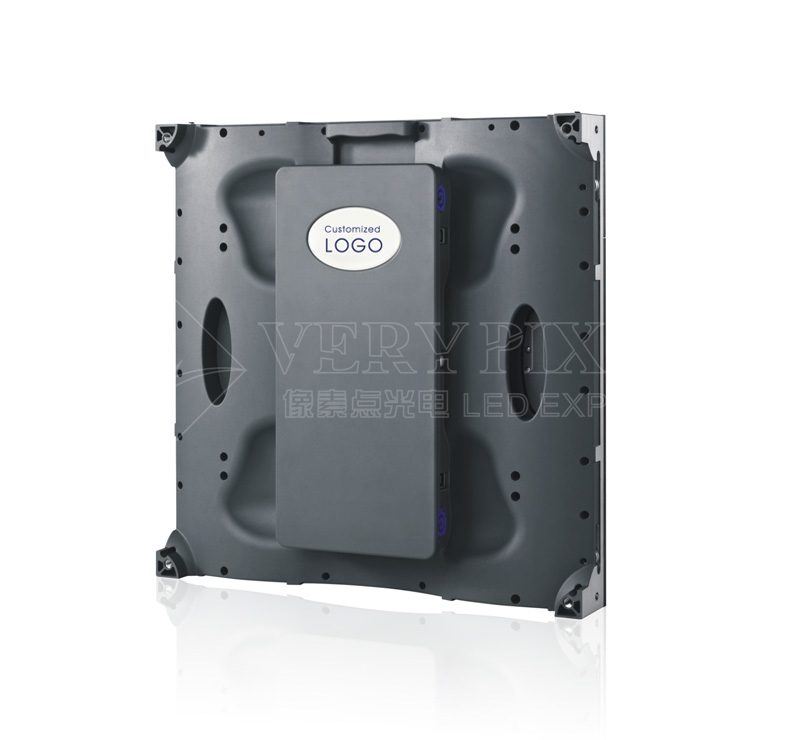

Cabinet Structure


die -casting led display indoor




Product Parameters

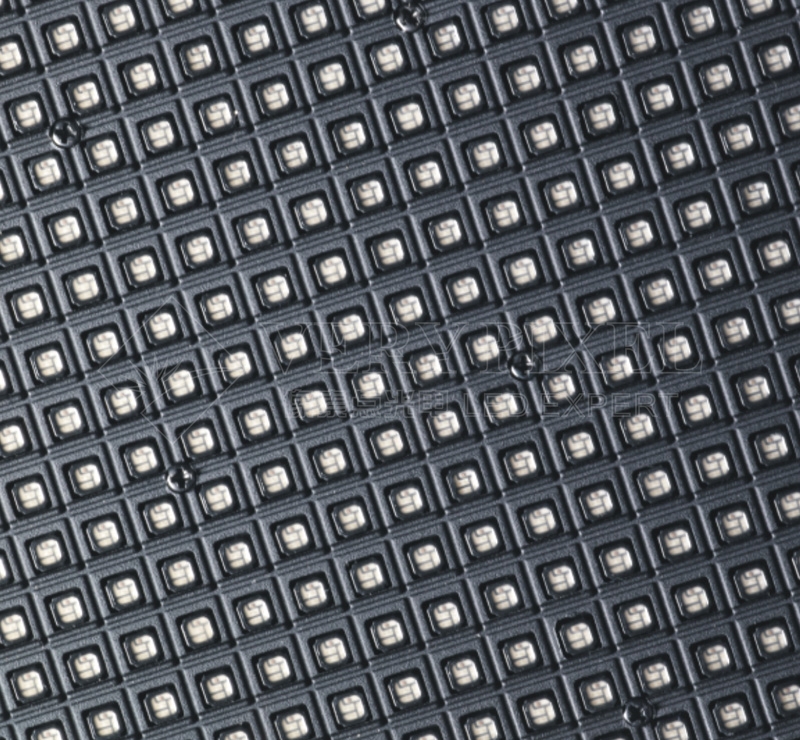

 LED Encapsulation

 Black SMD 2121

 Black SMD 2724

 Black SMD 2724

 Black SMD 3528

 Black SMD 3528

 Pixel Pitch

 3.75mm

 4mm

 4.615mm

 5mm

 6mm

 Module Resolution(W*H)

 128* 128

 120* 120

 104* 104

 96* 96

 80* 80

 Pixel Configuration

 1R1G1B(3 in1)

 Pixel Density

 71111 pixel/sqm

 62500 pixel/sqm

 46952 pixel/sqm

 40000 pixel/sqm

 27778 pixel/sqm

 Driving Method

 1/16 Scan

 1/15 Scan

 1/13 Scan

 1/12 Scan

 1/10 Scan

 Refresh Frequency

 >2880Hz(Supporting high refresh rate and depending on system configuration)

 Driving IC

 Special constant current IC with high refresh rate and high gray scale

 Grey Scale

 >14BIT(According to system and IC equipped)

 Module Size

 480mm*480mm

 White Balance Brightness

 >900cd/sqm

 >1000cd/sqm

 >1000cd/sqm

 >1500cd/sqm

 >1500cd/sqm

 Color Temperature

 8000K ± 500(adjustable)

 Viewing  Angle

 Horizontal  Angle 140°     Vertical  Angle 120°

 Optimal Viewing Distance

 >4m

 >4m

 >4m

 >4m

 >4m

 Working Voltage

 AC 220V±10%

 Max Power Consumption

 120W/pcs(White Balance)

 Avg Power Consumption

 60W/pcs(Normal Working)

 Lifetime

 50000 Hours

 Operating Temperature

 -10°C ~50°C
