• VP-O10SMD Outdoor LED Display
  • Type:Outdoor SMD Display
  • Model:VP-O10SMD
  • Hits:17814
  • Available applications:
    Outdoor High-end advertising application

    billboards, Information Display and so on

    Project Case>>>



Tag: P10 SMD outdoor full color LED Displays,P10 SMD full color led video wall,P10 outdoor SMD led displays,P10 SMD full color modules


LED outdoor P10 SMD screen compare favourably with P10 DIP LED display, and the development trend of outdoor SMD application is also the future of the LED industry.


P10 outdoor SMD LED Displays Detailed Description
>> LED display has been widely adopted in this century compared to the conventional technology that has allowed for further enhancement, integration and various applications in the different environment.
>> The deployment of LED as the display elements in the various applications as it able to produce various colors combinations, energy savings, integration ability, high luminance, longer life span, low maintenance, low heat generation, weather proof design, high temperature & UV resistant, true color emission, clear visibility, longer distance viewing and wider viewing angle.
>> Nowadays, turning to SMD as the technology for LED display products is the market trend. Verypixel is one of the most pioneering companies who adopts and professional on SMD technology. Mainly we are using 3528 and 5050 types, and 3528 means that the encapsulation size is 3.5*2.8 mm while 5050 means 5mm*5 mm. SMD can be both of indoor, outdoor using and SMD module.



LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 500-900mcd 120º/120º 620-630nm 25℃,20mA
Green LED 1800-2200mcd 120º/120º 520-535nm 25℃,20mA
Blue LED 250-500mcd 120º/120º 465-475nm 25℃,20mA



Module Parameters

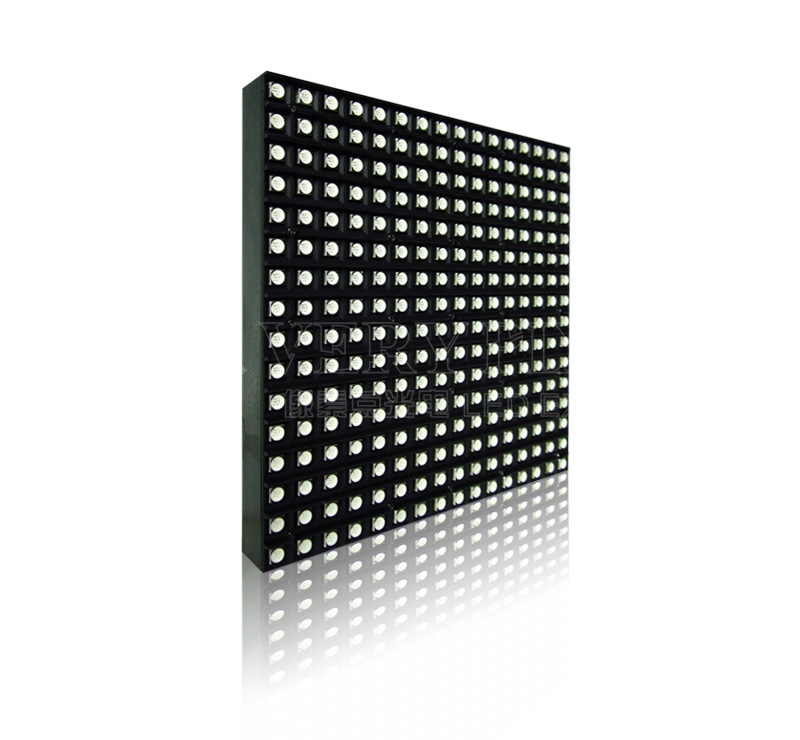

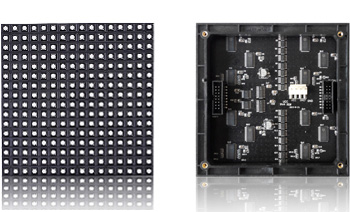

Pixel Pitch 10mm  P10 SMD Outdoor LED Display modules
Pixel Configuration 1R1G1B SMD 3in1
Module Resolution 16dots*16dots for real
Module Pixels 256 dots
Module Size 160mm*160mm
Module Weight 0.55KG



Cabinet Parameters

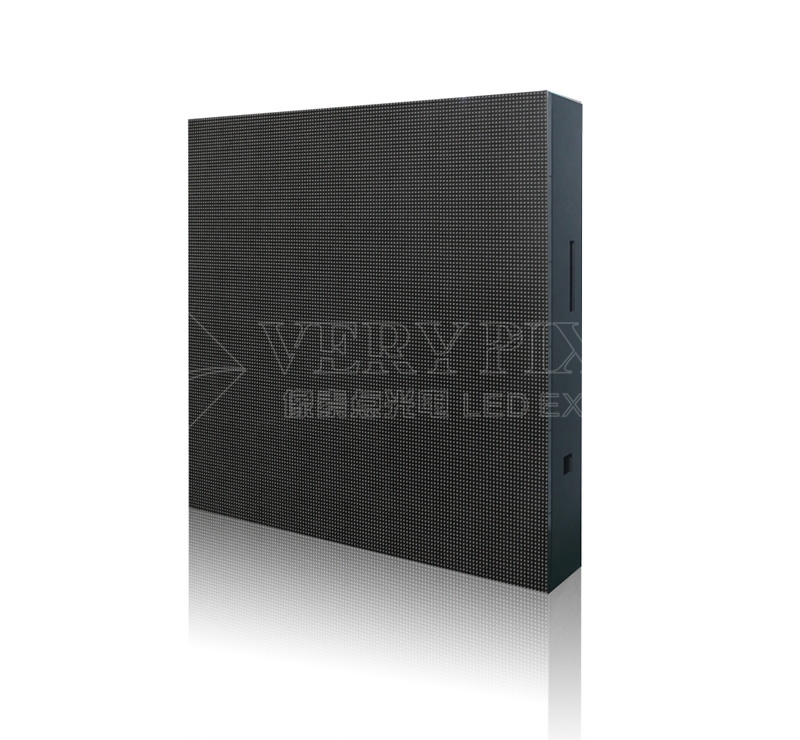

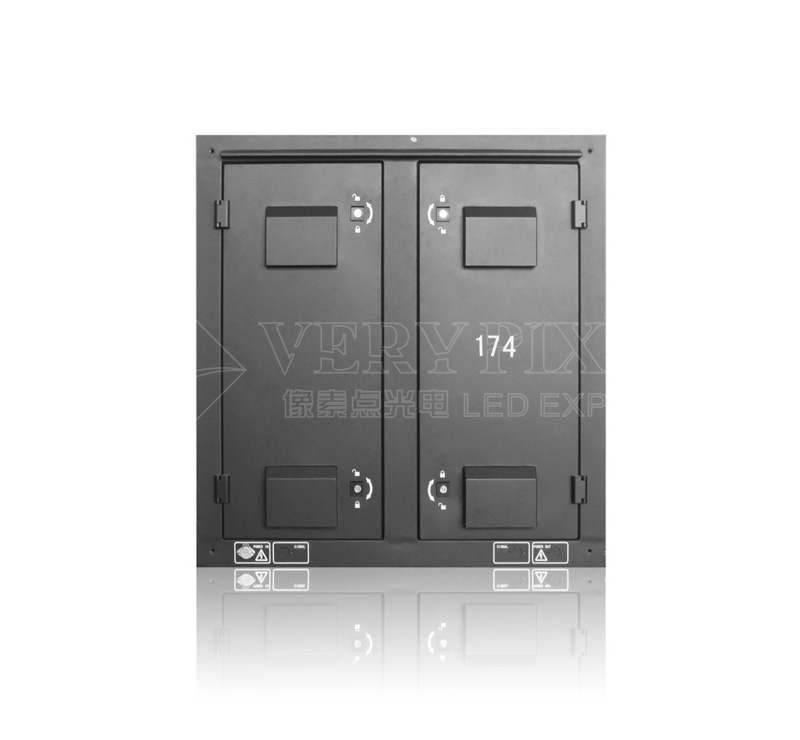

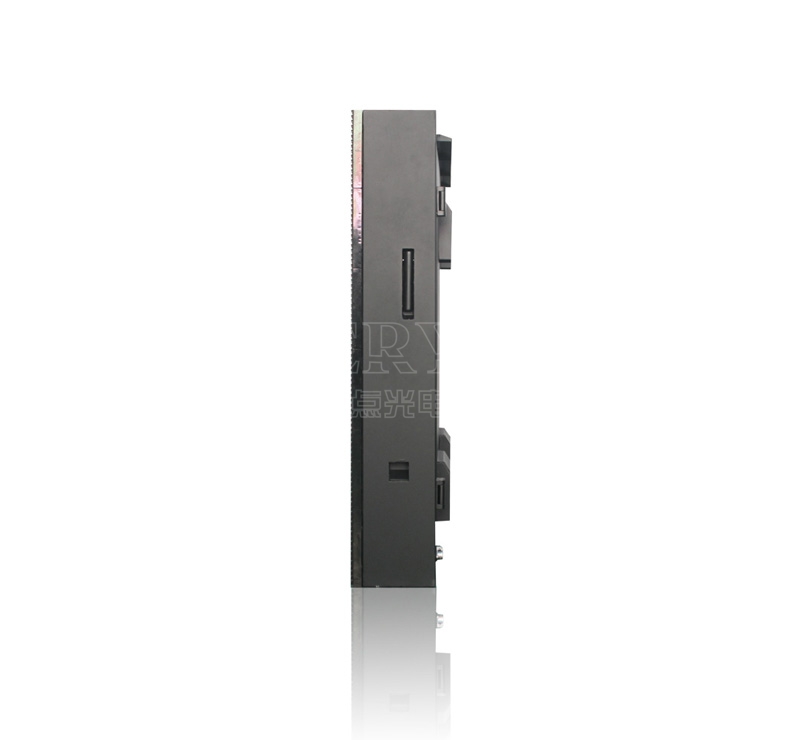

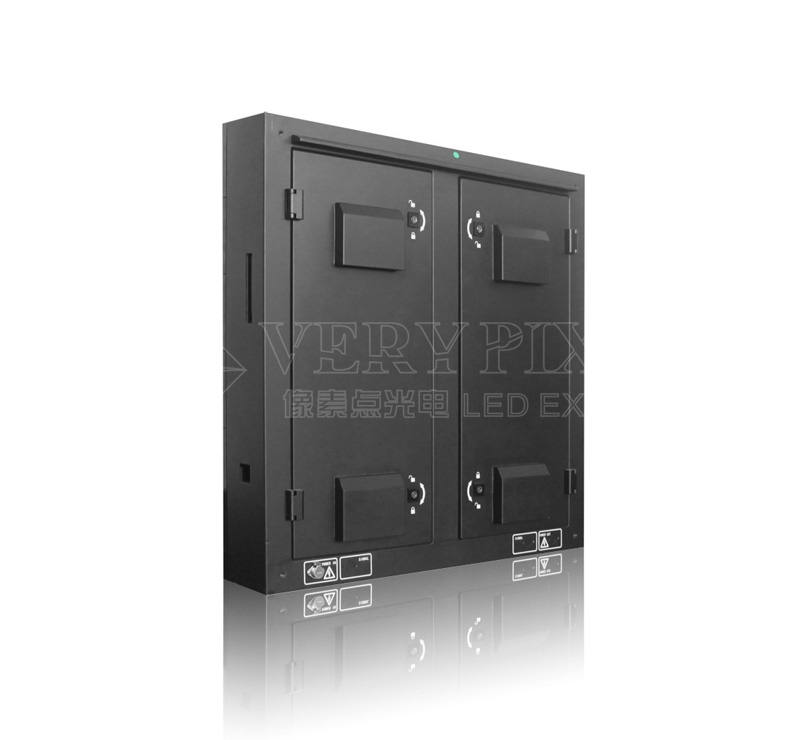

Cabinet Size(W*H*D) 960*960*160(mm)  P10 SMD Outdoor LED Display screen cabinet
Cabinet Resolution 96dot*96dot for real
Module Quantity 36 pcs
Cabinet Pixels 9216 dots
Pixel Density 10000 dot/sqm
Avg. Power Consumption 250W/sqm
Max. Power Consumption 750W/sqm
Material Iron or Aluminum
Cabinet Weight 60KG for iron cabinet;
40KG for aluminum cabinet



Screen Parameters

Brightness ≥5000cd/sqm
Contrasts (Max. /Min.) 1.1:1
Driving Method Static
View Angle Horizontal 120° Vertical 120°
Optimal Viewing Distance 10m to 100m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥600Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤65kg/sqm for Iron cabinet /45kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP65
Temperature-operating ﹣40°C to 60°C
Humidity-operating 10% to 90%
Operating System  Windows98/me/2000/NT/XP/win7
