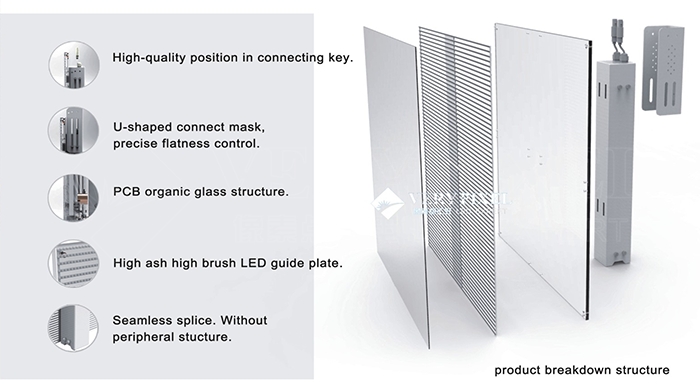

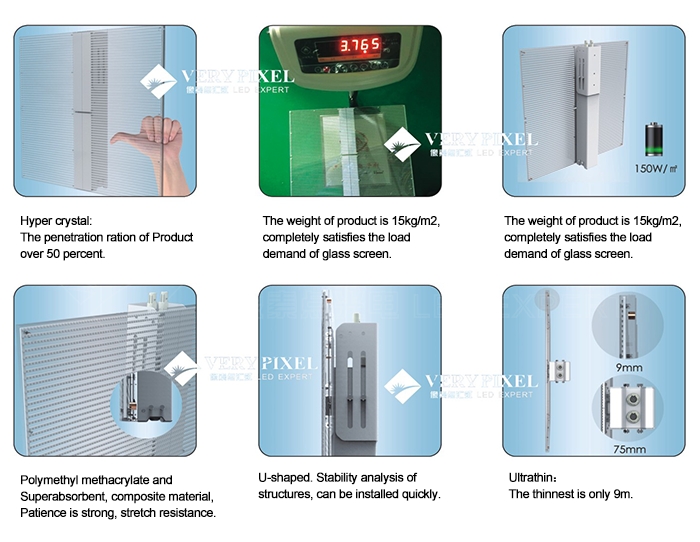

Product feature of VP-GLS-T
VP-GLS-T product mix

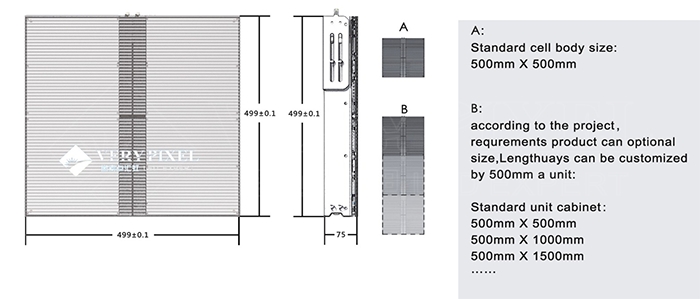

VP-GLS-T standard unit cabinet design

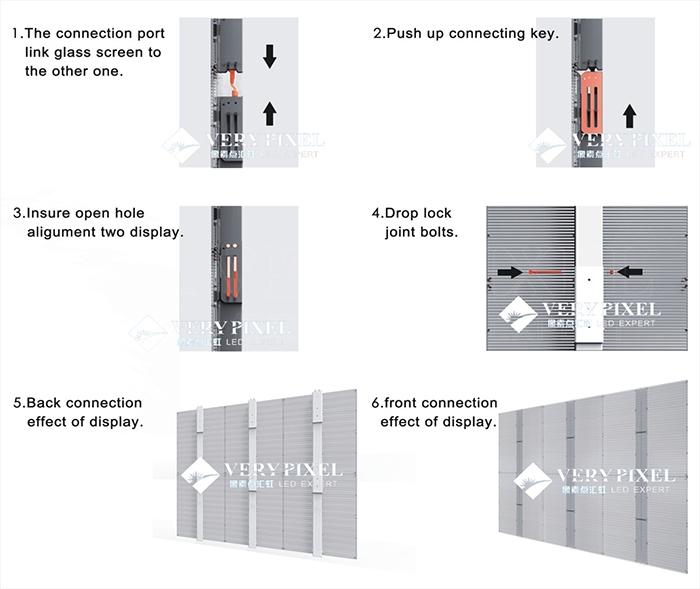

VP-GLT-T installation drawing
VP-TRANS SERIES SPECIFICATIONS
|
Module
|
VP-GLS-T3
|
VP-GLS TH3
|
VP-GLS-T7
|
|
Pixel pitch(mm)
|
3.91-7.81
|
3.91-7.81
|
7.81-15.625
|
|
LED
|
Indoor SMD2121
|
Outdoor SMD2121
|
Outdoor SMD3535
|
|
Density(dots/m2)
|
32768
|
32768
|
8192
|
|
Module Size<WxH>(mm)
|
250mmX250mm
|
250mmX250mm
|
250mmX250mm
|
|
Cabinet Material
|
Acrylic, Metal Plate, Aluminum, Stainless Steel
|
|
Weight(kg/pcs)
|
15kg/m2
|
15kg/m2
|
14kg/m2
|
|
Transparency Rate
|
60%
|
60%
|
70%
|
|
Brightness
|
≥1200 nit
|
≥2800 nit
|
≥4500 nit
|
|
Refresh Rate (Hz)
|
≥1920
|
≥1920
|
≥1920
|
|
Scanning Mode
|
1/16 scan
|
1/16 scan
|
1/4 scan
|
|
Maximum Power Consumption
|
400W/m2
|
400W/m2
|
400W/m2
|
|
Average Power Consumption
|
150W/m2
|
150W/m2
|
180W/m2
|
|
Driving IC
|
General Chip, with blanking
|
|
Installation Mode
|
Suspension Type or overstow Stack Type
|
|
Service Mode
|
Back Service
|
|
Color Scale
|
256grade
|
|
Operating Voltage
|
DC 5V
|
|
Grey Scale(bit)
|
12~16
|
|
IP Rating
|
IP43
|
|
Viewing Angle(°)
|
140
|
|
Input Voltage
|
AC95V~240V
|
|
Working environment
|
Temperature －10~40℃ humidity 10%~90RH
|
|
Life(h)
|
100000
|
