• VP-Fastile-PH6.6 Front Service LED Display
  • Type:Front Service Display
  • Model:VP-FS-I6.6-SMD
  • Hits:2320
  • Available applications:
    indoor advertising, billboards
    rental business and stage background.

     Project Case >>  Video Demo >>


vp-fastile-front-service-indoor-led-display-screen

Tag: P6.6mm SMD indoor front and rear maintenance LED board displays,indoor front open LED cabinet,indoor front access LED stage background



indoor front service LED display screen: No need go inside sign to suffer heat torturing now!
Fast Assembly: 8 sec per module disassembly. Hollow Design: Module light weight, high permeation rate. Module Upgrade: intelligent upgradeable eternalize your display.





Product Features

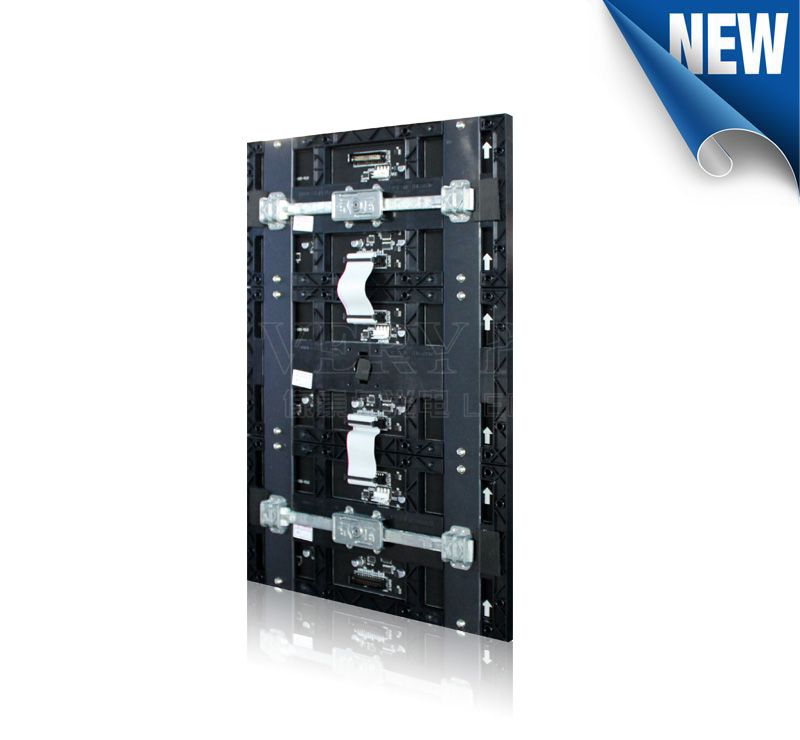

>> These brilliant LED modules allow both front and rear service. They can totally achieve WYSIWYG (What You See Is What You Get). For example, if you found any failure module in traditional LED screen, you have to spend a lot of time to the rear side to find the fault module and fix it. But if you use a front access LED module, you can just find the failure module immediately and fix it from the front side directly.

>> Front access design allows making any LED panels available from the front side, which is suitable for some special locations where there is no more space for rear maintenance. It is particularly suitable for LED Ceiling Display.

>> The module fast lock makes it supper easy and fast to assemble & disassemble. It only takes you 8 seconds. With this, you may save a lot of time and labor cost.

>> This former module is in a very light weight, only 1.7kg, which could hang mount the wall or lift more easier.

>> We called it Fastile is because it is fast assembly and available to update/upgrade. that's because all the cabinets are customized and all the range of pixel pitches modules are totally suitable for the cabinet structures.



Display Effect

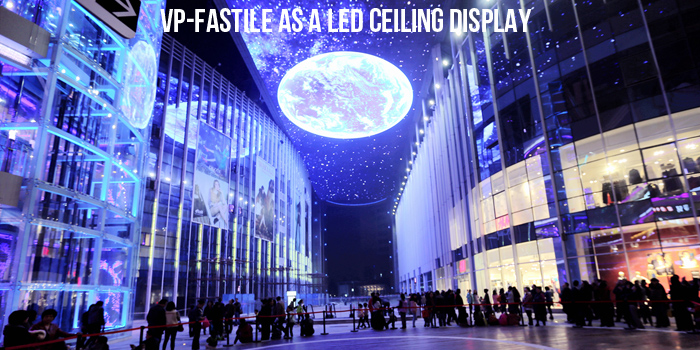

 LED ceiling display


LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 800-900mcd 110°/110° 620-630nm 25°C, 20mA
Green LED 1400-1800mcd 110°/110° 520-535nm 25°C, 20mA
Blue LED 250-400mcd 110°/110° 465-475nm 25°C, 20mA

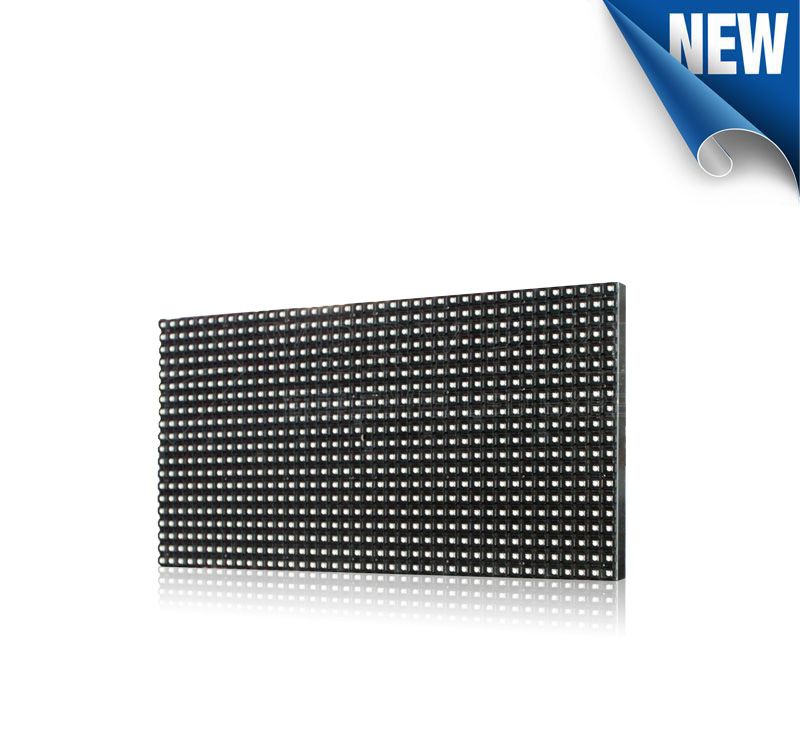

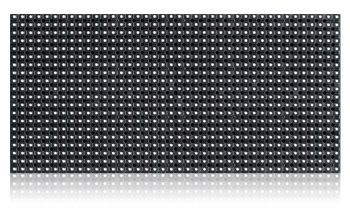

Module Parameters

Pixel Pitch 6.6mm  vp-fastile-front-service-indoor-led-display-screen-modules
Pixel Configuration SMD 3528
Module Resolution 48dots*24dots for real
Module Pixels 1152dots
Module Size 320mm*160mm
Module Weight 0.7KG

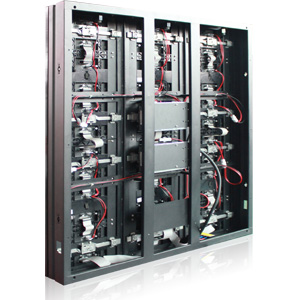

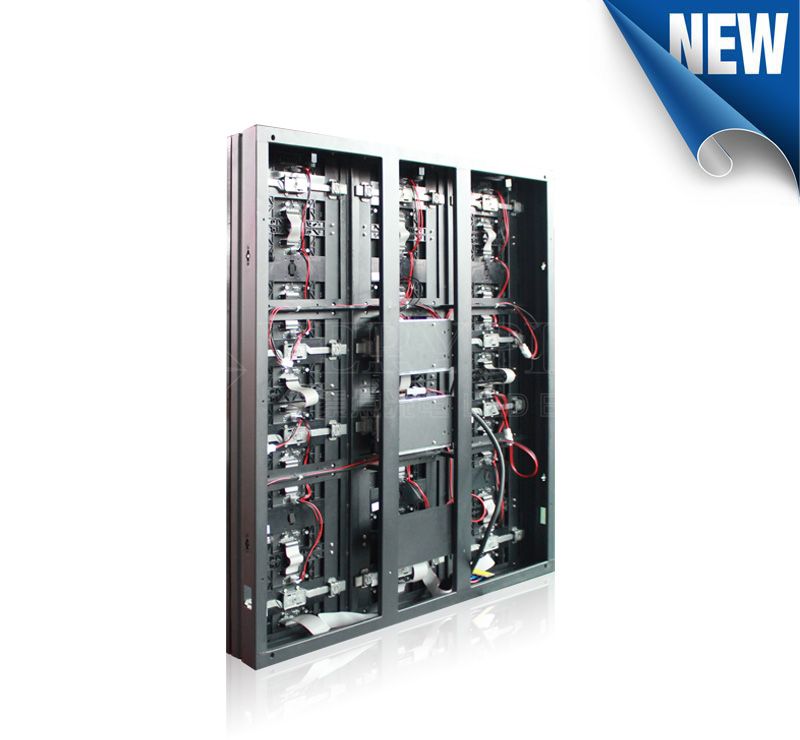

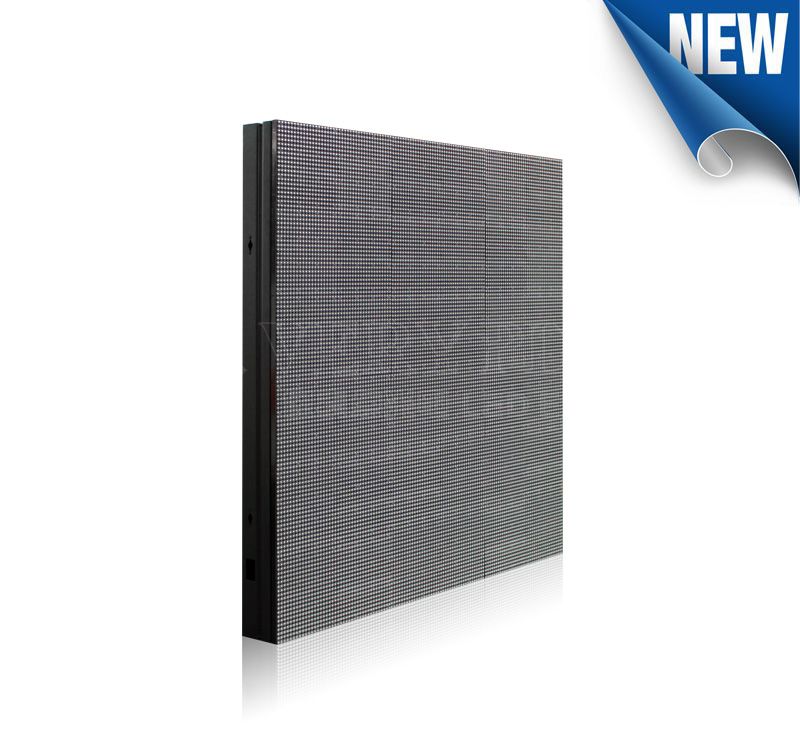

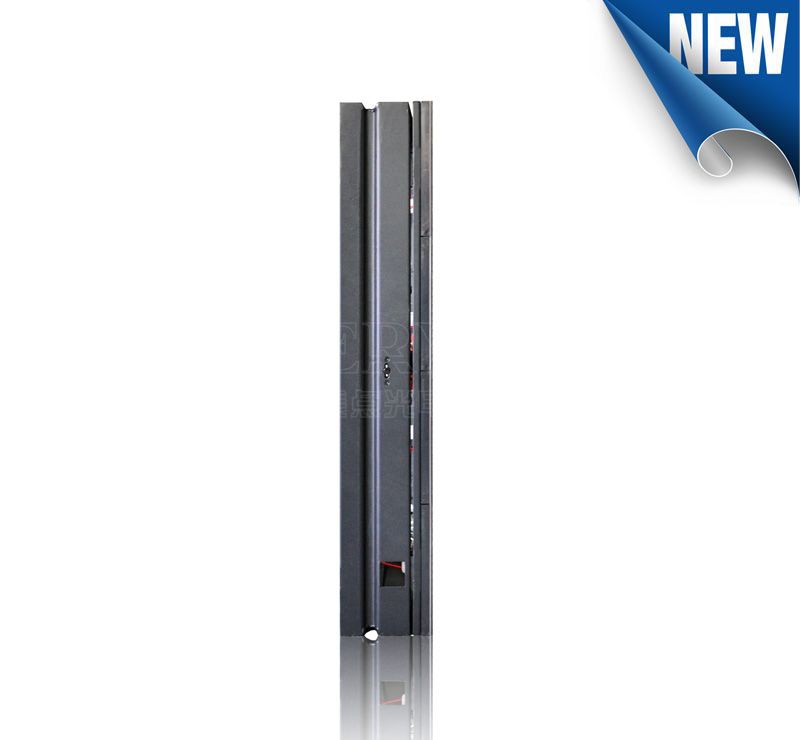

Cabinet Parameters

Cabinet Size(W*H*D) 960*960*100(mm) or customizable  vp-fastile-front-service-indoor-led-display-screen-cabinets
Cabinet Resolution 96dot*164dot for real
Module Quantity 18 pcs
Cabinet Pixels 20736dots
Pixel Density 22956dot/sqm
Avg. Power Consumption 180W/sqm
Max. Power Consumption 550W/sqm
Material Iron or Aluminum
Cabinet Weight 20KG for iron cabinet;
12KG for aluminum cabinet



Screen Parameters

Brightness ≥1400cd/sqm
Contrasts (Max. /Min.) 1.1:1
Driving Method Static
View Angle Horizontal 110° Vertical 110°
Optimal Viewing Distance 7m-200m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥1000Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤23kg/sqm for Iron cabinet /25kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP45
Temperature-operating -40°C to 60°C
Humidity-operating 10% to 90%
Operating System  Windows98/me/2000/NT/XP/win7
