LED outdoor P8 SMD screen brightness compare favourably with P8 DIP LED display, and the development trend of outdoor SMD application is also the future of the LED industry.
|
P8 outdoor SMD LED Displays Detailed Description
|
|
>> LED display has been widely adopted in this century compared to the conventional technology that has allowed for further enhancement, integration and various applications in the different environment.
|
|
>> The deployment of LED as the display elements in the various applications as it able to produce various colors combinations, energy savings, integration ability, high luminance, longer life span, low maintenance, low heat generation, weather proof design, high temperature & UV resistant, true color emission, clear visibility, longer distance viewing and wider viewing angle.
|
|
>> Nowadays, turning to SMD as the technology for LED display products is the market trend. Verypixel is one of the most pioneering companies who adopts and professional on SMD technology. Mainly we are using 3535 and 5050 types, and 3535 means that the encapsulation size is 3.5*3.5 mm while 5050 means 5mm*5 mm. SMD can be both of indoor, outdoor using and SMD module.
|
LED Parameters
|
Item
|
Luminous Intensity
|
Viewing Angle(H/V)
|
Wavelength
|
Test Condition
|
|
|
Red LED
|
500-900mcd
|
120º/120º
|
620-630nm
|
25℃,20mA
|
|
Green LED
|
1800-2200mcd
|
120º/120º
|
520-535nm
|
25℃,20mA
|
|
Blue LED
|
250-500mcd
|
120º/120º
|
465-475nm
|
25℃,20mA
|

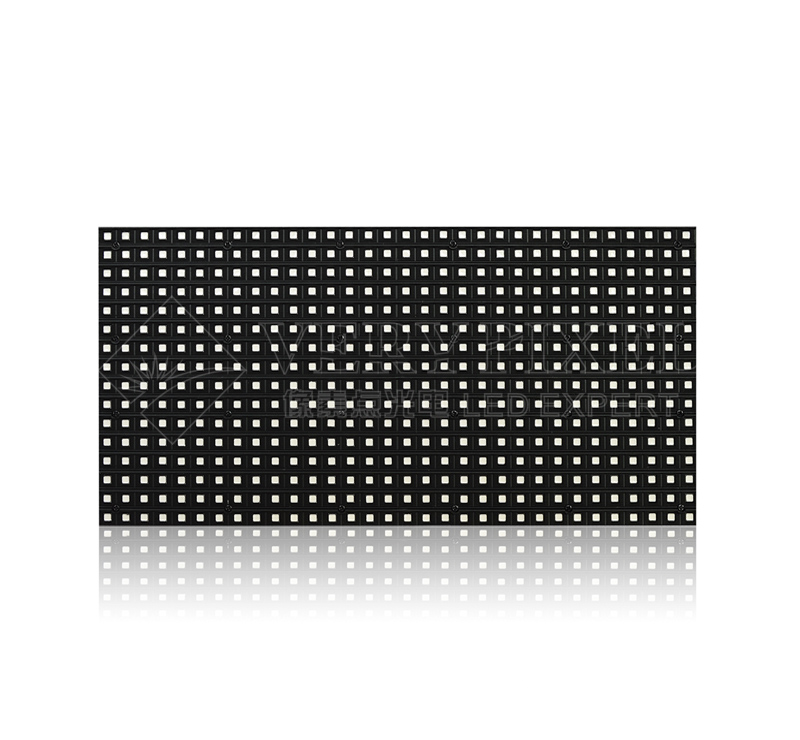

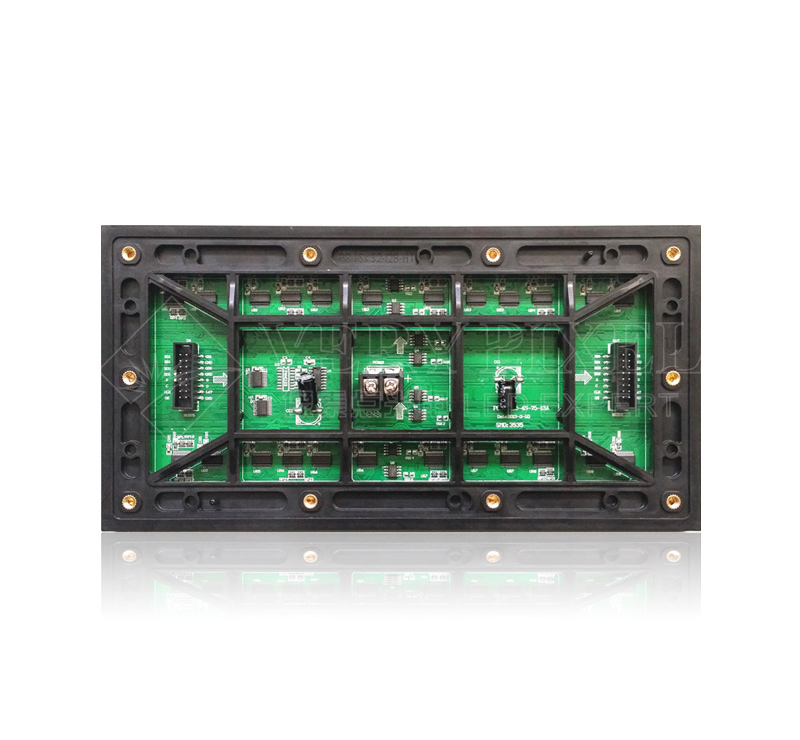

Module Parameters
|
Pixel Pitch
|
8mm
|
|
|
Pixel Configuration
|
1R1G1B SMD 3in1
|
|
Module Resolution
|
32dots*16dots for real
|
|
Module Pixels
|
512 dots
|
|
Module Size
|
256mm*128mm
|
|
Module Weight
|
0.4KG
|

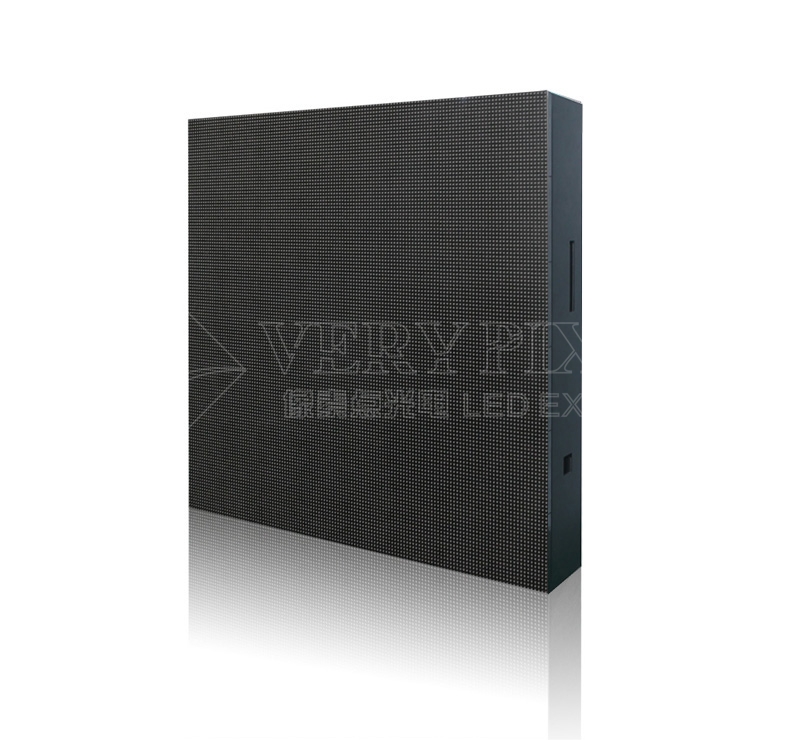

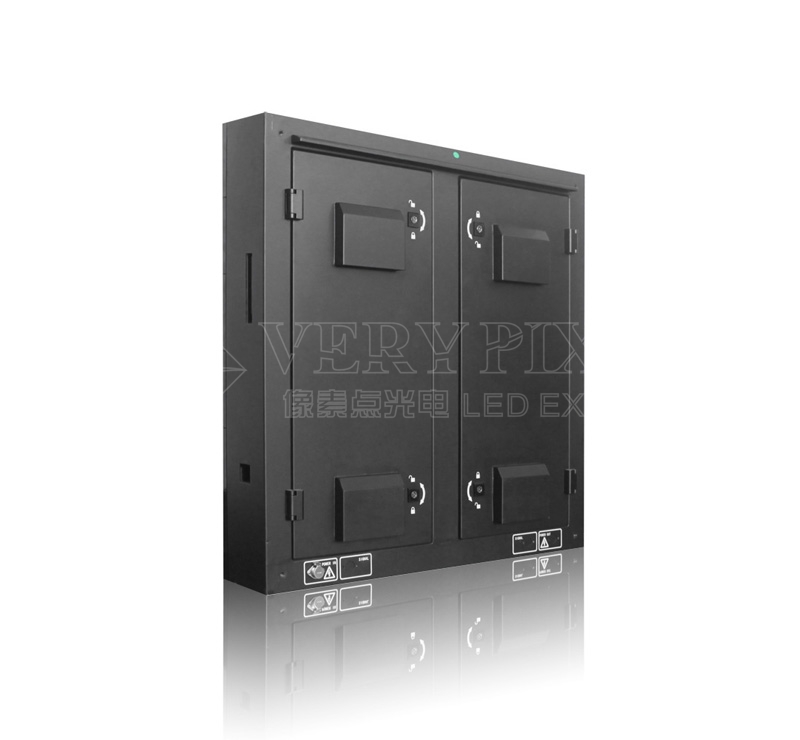

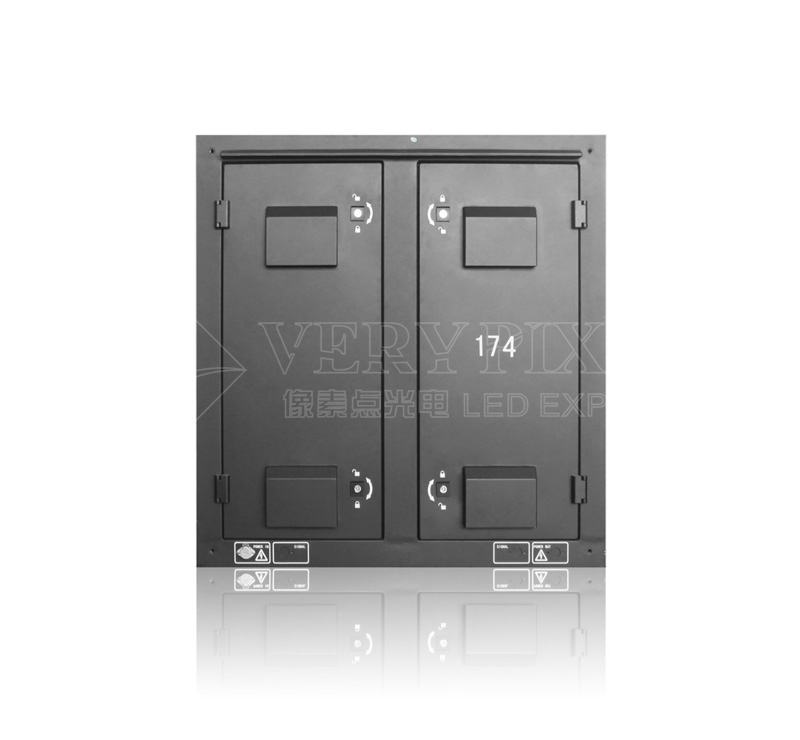

Cabinet Parameters
|
Cabinet Size(W*H*D)
|
1024*1024*160(mm)
|
|
|
Cabinet Resolution
|
128dot*128dot for real
|
|
Module Quantity
|
32 pcs
|
|
Cabinet Pixels
|
9216 dots
|
|
Pixel Density
|
16384 dot/sqm
|
|
Avg. Power Consumption
|
250W/sqm
|
|
Max. Power Consumption
|
750W/sqm
|
|
Material
|
Iron or Aluminum
|
|
Cabinet Weight
|
60KG for iron cabinet;
40KG for aluminum cabinet
|
Screen Parameters
|
Brightness
|
≥6000cd/sqm
|
|
Contrasts (Max. /Min.)
|
1.1:1
|
|
Driving Method
|
1/4 scan
|
|
View Angle
|
Horizontal 120° Vertical 120°
|
|
Optimal Viewing Distance
|
8m to 100m
|
|
Brightness Control
|
Red, Green and Blue 256 Grade/Each
|
|
Fresh Frequency
|
≥600Hz
|
|
Frame Frequency
|
50 - 60Hz
|
|
Input Voltage
|
AC220V/50Hz or AC110V/60Hz
|
|
Defects Rate
|
≤0.00001
|
|
Screen Weight
|
≤65kg/sqm for Iron cabinet /45kg/sqm for Aluminum cabinet
|
|
MTBF
|
>10,000 hours
|
|
Life Span
|
≥100,000 hours
|
|
Brightness Uniformity
|
<3%
|
|
Earth Leakage Current
|
<3mA
|
|
Protective Grade
|
IP65
|
|
Temperature-operating
|
﹣40°C to 60°C
|
|
Humidity-operating
|
10% to 90%
|
|
Operating System
|
Windows98/me/2000/NT/XP/win7
|
