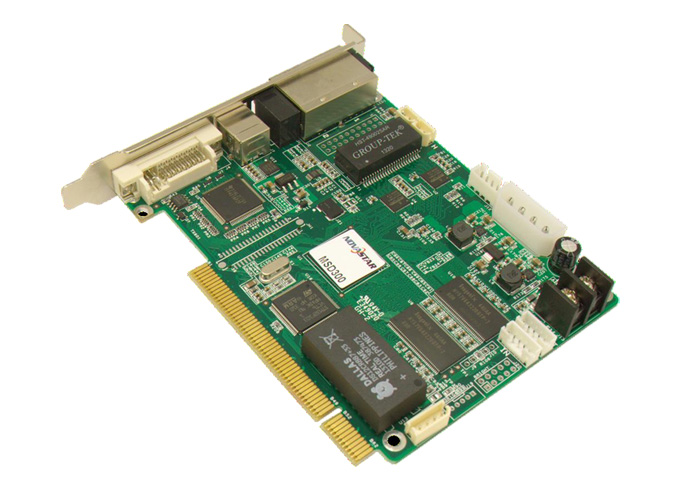

Nova M3 MSD300 Sending Card Specifications



Nova-M3-MSD300-Sending-Card



1. Functions

Nova M3 MSD300 is standard model of Nova sending card. It has the following characteristics:


1) 1 DVI video input;
2) 1 audio input;
3) 2 Ethernet port output;

4) USB control interface. Can be cascaded for uniform control;
5) Single sending card supports resolution of 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668;
6) 1 light sensor interface;

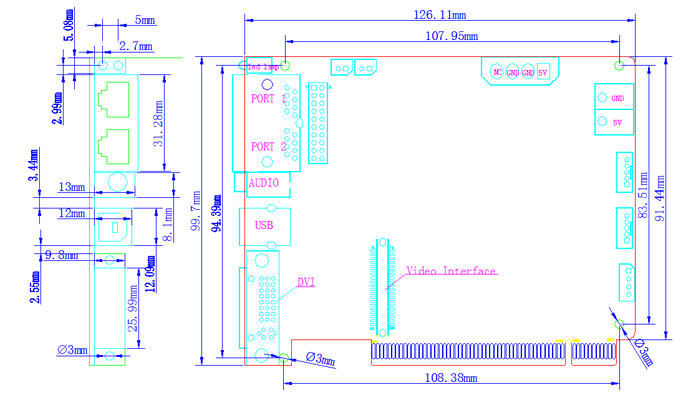

2. Dimensions and interface

MSD300-Dimensions-and-interface



MSD300 Dimensions and interface

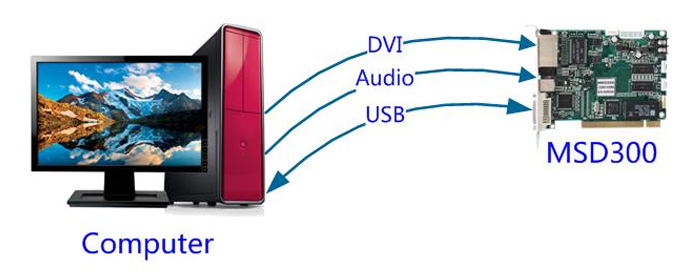

 3. Connection



MSD300-Connection-diagram

MSD300 Connection diagram

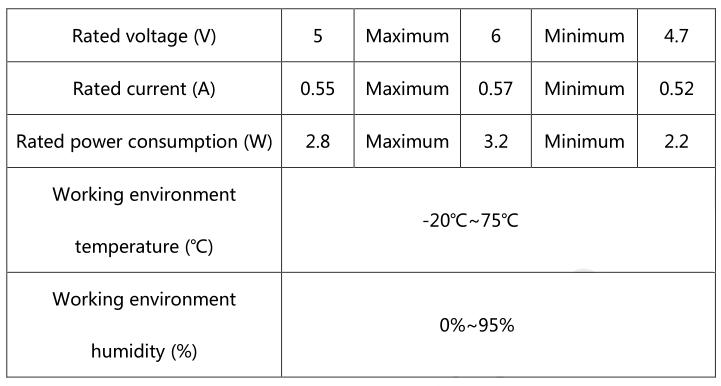

4. Working Conditions
