• VP-Wonderful Outdoor Series
  • Type:Rental LED Display
  • Model:VP-Rental screen Series
  • Hits:2218
  • Available applications:
    outdoor rental screen, information display
    stage background and side screen.

Tag: outdoor rental led display, rental screen outdoor, die-casting cabinet led display outdoor

Product Features





Light weight: Large unit and light weight. The cabinet can be as light as 13KG.
Wide viewing angle: The specially designed masks can make the horizontal viewing angle up to 150 degrees
Seamless connection: The aluminum die-casting technology, together with the high-precision CNC procession, makes the precision reach ±0.05mm so as to achieve seamless assembly.
Easy to maintain: No need to disassemble the whole screen for maintenance. Each component can be detach individually for that purpose.
Noiseless: The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
Ghost canceling: Exquisite and clear picture quality with no ghost. Both upstream and downstream ghosts can be automatically canceled.
High refresh rate: Over 2880Hz refresh rate to ensure the picture wrinkle-less, line-less and stable.
Low brightness and High gray scale: 14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.

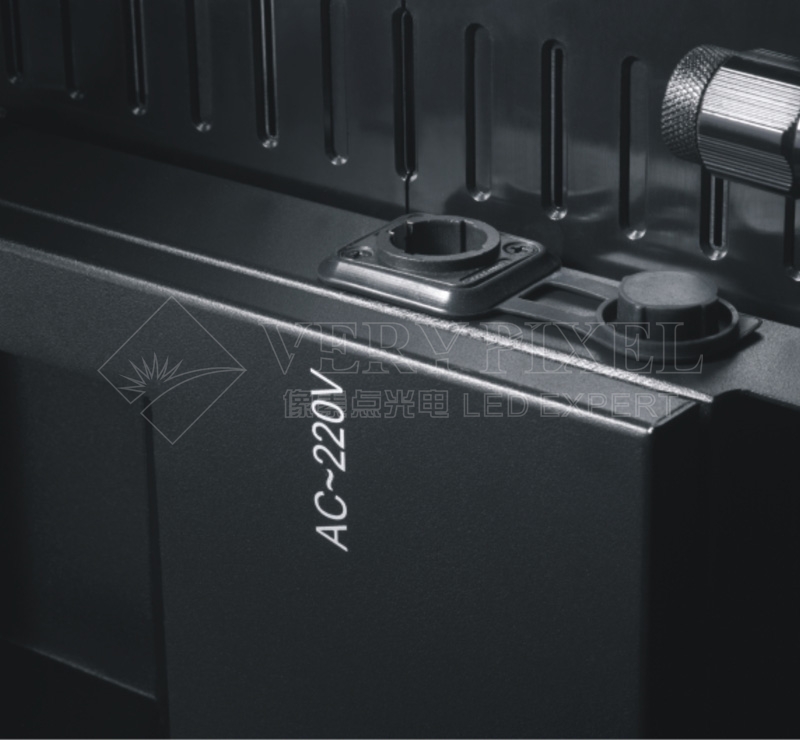

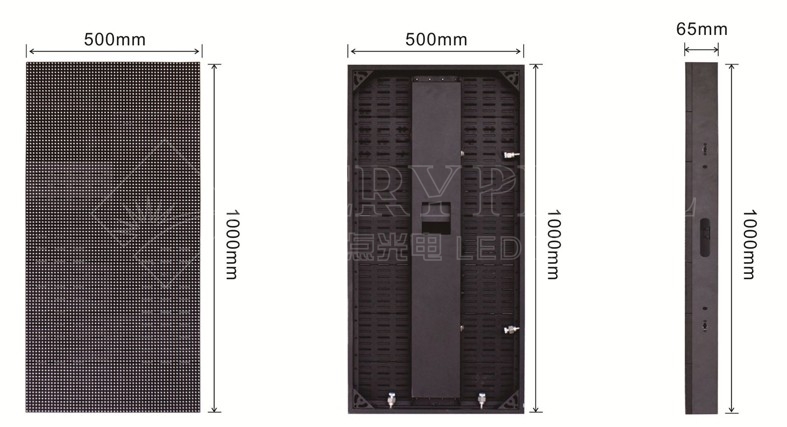

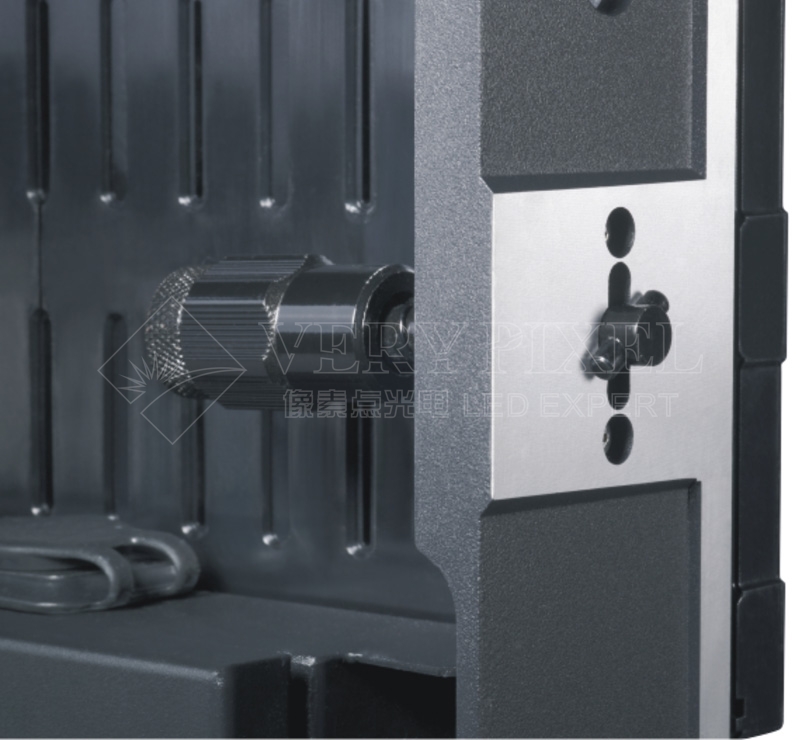

Cabinet Structure


outdoor high-end die -casting led display

led rental screen cabinet structure


Product Parameters

 Items

 Parameter

 LED Encapsulation

 SMD 3535(outdoor)

 Pixel Pitch

 8.925mm

 Module Resolution(W*H)

 56* 122

 Pixel Configuration

 1R1G1B(3 in1)

 Pixel Density

 12544 pixel/sqm

 Driving Method

 1/4 Scan

 Refresh Frequency

 >2880Hz(Supporting high refresh rate and depending on system configuration)

 Driving IC

 Special constant current IC with high refresh rate and high gray scale

 Grey Scale

 >14BIT(According to system and IC equipped)

 Module Size

 500mm*1000mm

 White Balance Brightness

 >5000cd/sqm

 Color Temperature

 8000K ± 500(adjustable)

 Viewing  Angle

 Horizontal  Angle 140°     Vertical  Angle 120°

 Optimal Viewing Distance

 >9m

 Working Voltage

 AC 220V±10%

 Max Power Consumption

 250W/pcs(White Balance)

 Avg Power Consumption

 130W/pcs(Normal Working)

 Lifetime

 50000 Hours

 Operating Temperature

 -10°C to 50°C
