• Ultra HD LED TV
  • Type:Small Pitch LED Display
  • Model:VP-HD-TV
  • Hits:1928
  • Available applications:
    Ultra HD video player,4K display

    rental business and so on.

    Project Case>>>

Tag: Ultra HD LED TV, LED TV full HD 3D, Panel-slim LED TV


Product Features






high grayscale small pitch led display

large viewing angle small pitch HD led display


Ultra-slim LED TV with Really good heat dissipation
Truly seamless and Easy way to assemble
High refresh rate, Long service time without blinking and Wide color gamut
Save screen space, Wide angle high brightness adjustable energy-efficient

Cabinet Structure

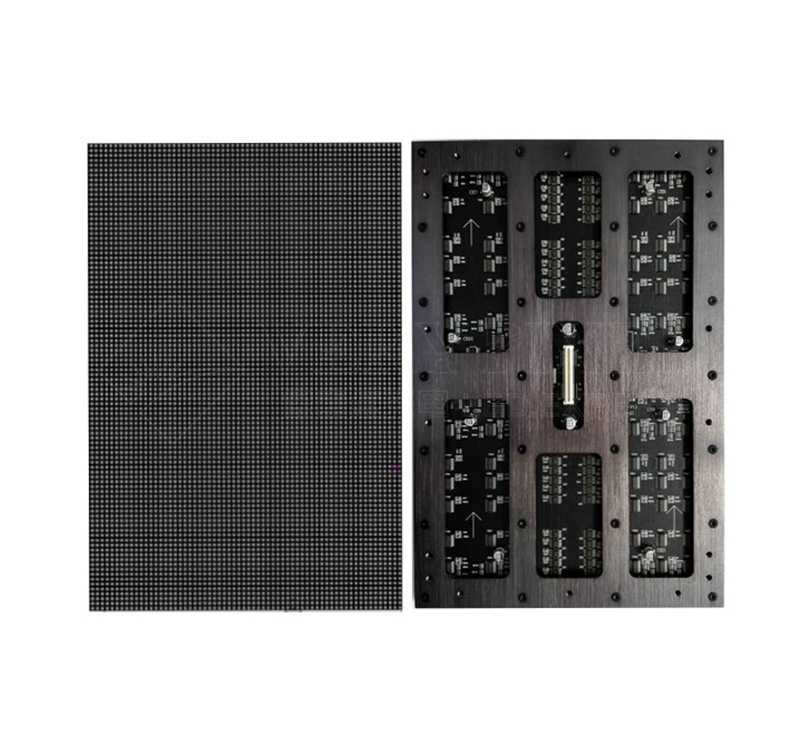

Ultra HD LED TV modules

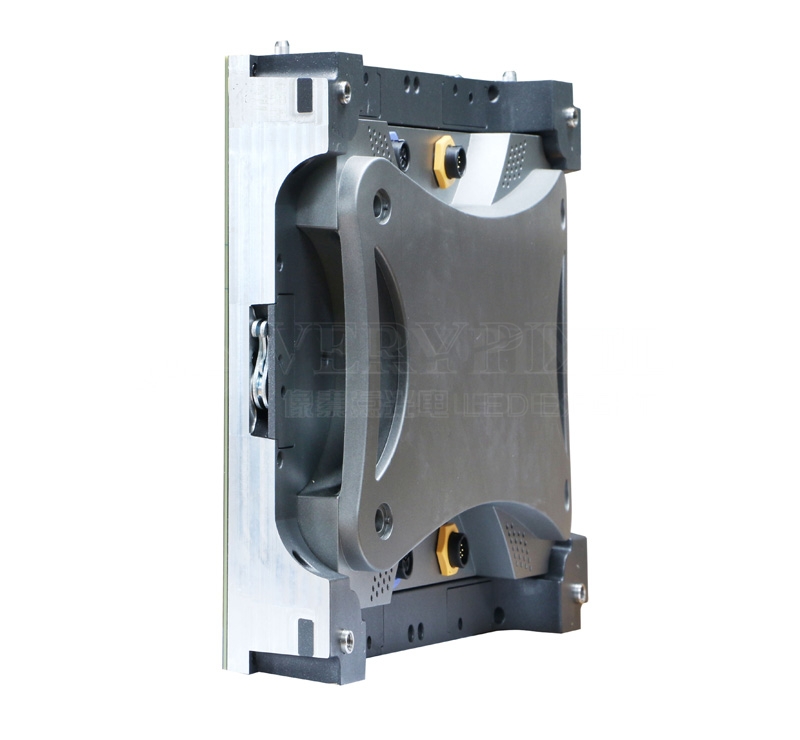

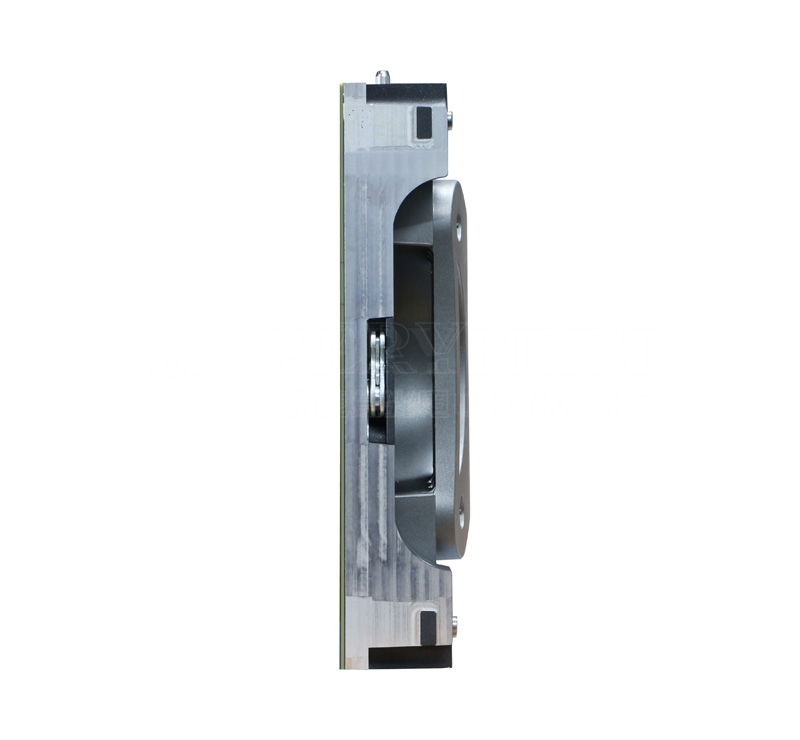

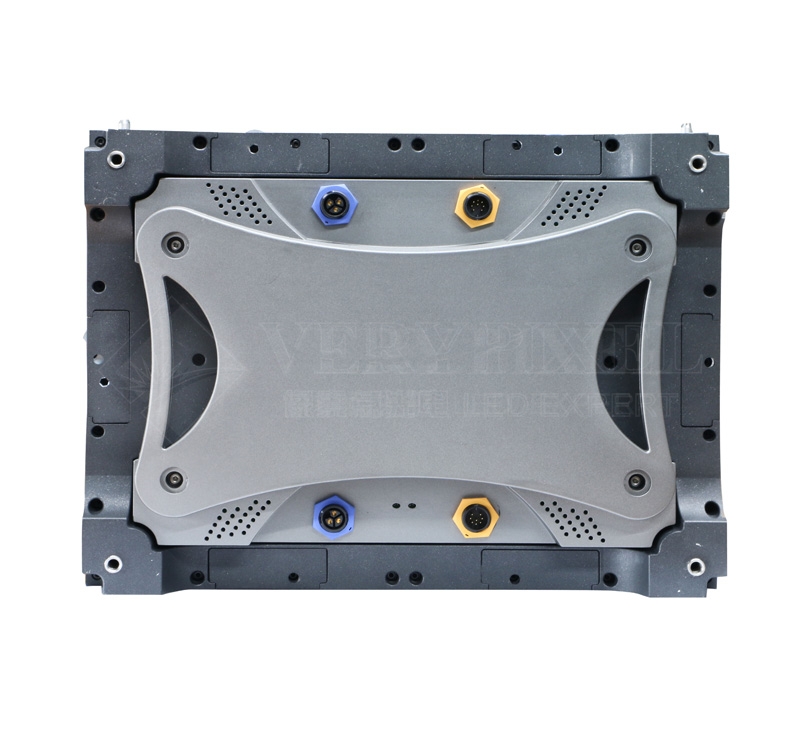

Ultra HD LED TV cabinets


Product Parameters


Item

Specification

module

Led type

SMD 3 IN 1

Pixel pitch (mm)

1.667

Module resolution (W X H)

120× 180

Module dimensionmm

200W×300H

Module weightkg

0.4

Module power consumptionW

70

cabinet

Module quantityW×H

2 ×1

Cabinet resolutionW×H

240× 180

Cabinet dimensionmm

400W×300H×66D

Cabinet aream2

0.12

Cabinet weightkg

4.6

Pixel densitydot/m2

360000

Cabinet flatnessmm

≤ 0.2

Maintenance

Back Access

Cabinet material

Die- casting Aluminum

Optical parameters

Single-point brightness correction

available

Single-point color correction

available

Brightnessnits

≥1000color temperature 6500K

Color temperatureK

3200 —9300 adjustable

Viewing angle (Horizontal/Vertical)

160/160

Luminous point center distance deviation

<3%

Color uniformity

≥ 97%

Contrast ratio

4000:1

Electrical parameters

Max power consumption

150 W/cabinet;  1200 W/m2

Average power consumption

35 W/cabinet;  300 W/m2

Voltage range

AC90~264V47-63Hz

Security Features

GB4943/EN60950

Processing performance

Frame RateHz

50/60 Hz

Drive mode

Constant Current Driver1/30 scanning

Gray levels

16384

Refresh rateHz

≥2000

processing

16 bit

Module comes with power failure

Save luminance, Color correction, module data

Video playback capability

2K, 4K Ultra-high-definition video

Use parameter

Life timehrs

50,000H

Operating temperature / humidity

-10 – 40 / 10%-80%RHnon-condensing

Storage temperature / humidity

-20 – 60 / 10%-85%RHnon-condensing

Certification

CCCTUV-CEETL, etc
