Tag: P25x25 Building LED strip display, P25x25 DIP Gaint LED curtain display, P25x25 LED media facade
VP-MEGA is a new kind of display screen which integrated the advantages of the traditional screen-high resolution, high quality, and high Grey level. Abandoned the disadvantages of the transmission issue cause by the signal interruption. It is the best choice for indoor and outdoor application.
VP-MEGA Characteristic
|
>> Good quality VP-MEGA , green products with low consumption.
|
|
>> Constant currency, long lifespan. >> Anti-static, thunder proof.
|
|
>> Working environment：-30°C to 60°C
|
|
>> Standard IP67 protective design, meet requirements for severe circumstance.
|

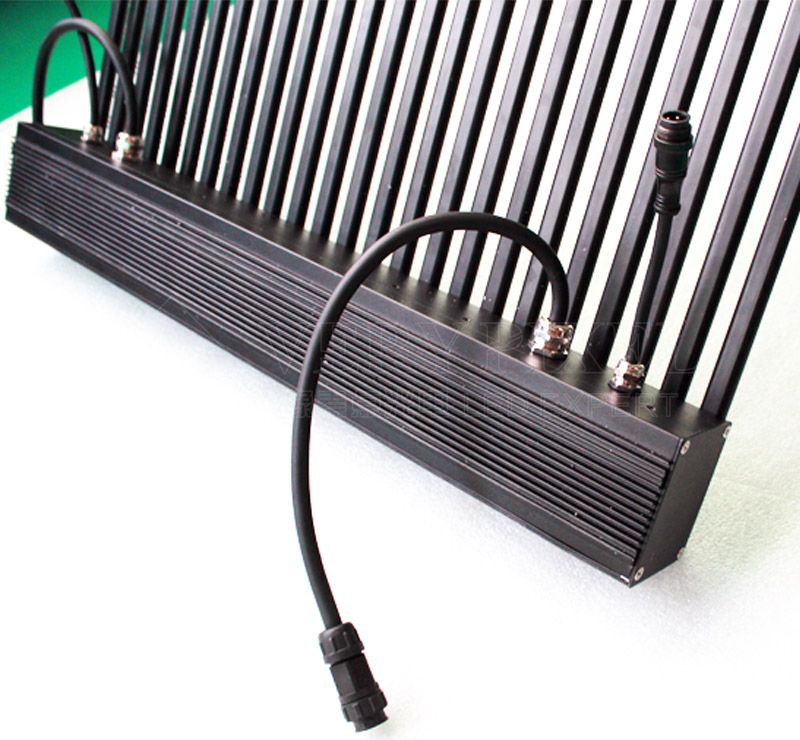

VP-MEGA Material
|
>> Adopt good quality aluminum for the body，two times oxidation treatments.
|
|
>> Connector plated by gold, lowest electric resistance, high antioxidant ability.
|
|
>> High ability of water proof and air corrosion, the adaptability of high temperature is strong.
|
|
>> Fixed by stainless screw with beautiful appearance and, rust proof.
|

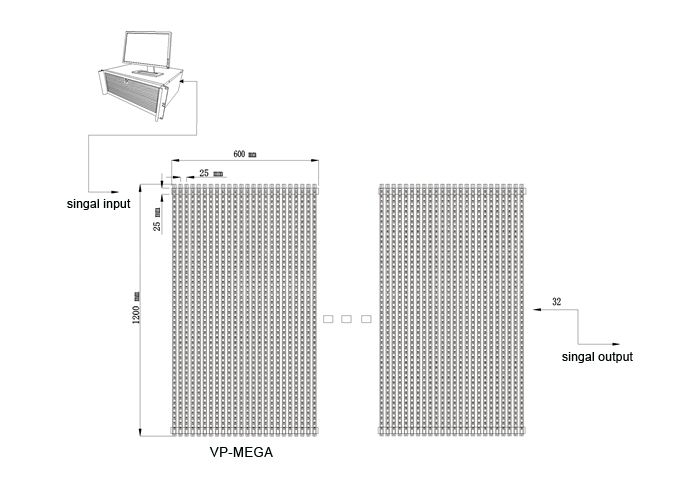

VP-MEGA Topology
VP-MEGA Installation
Screen Parameters
|
Name
|
VP-MEGA 25*25
|
|
Unit size
|
1200mm*600mm
|
|
Pixel pitch
|
25*25mm
|
|
Light color
|
1R1G1B
|
|
Density
|
1600Pix/ m2
|
|
Driving IC
|
MBI5041
|
|
Seal IC
|
Epistar
|
|
Control
|
Online real time display system
|
|
Weight
|
9.5kg/ m2
|
|
Unit area
|
0.72 m2
|
|
Max power
|
350W/ m2
|
|
Brightness
|
≥8000cd
|
|
Resolution
|
1152pix/ pcs
|
|
Unit pixel
|
48pix*24pix/unit
|
|
Driving mode
|
Static, constant currency
|
|
Frame rate
|
15 to 75Hz
|
|
Refresh rate
|
≥5000Hz
|
|
Grey Level
|
16bits*16bits*16bits
|
|
Color change
|
16777216
|
|
Lifespan
|
≥50,000h
|
|
Voltage
|
AC220V
|
|
Protective level
|
IP67
|
|
Humidity
|
≥20%-95%RH
|
|
Light transmission rate
|
≥58%
|
|
Working temperature
|
-20°C to +70°C
|
