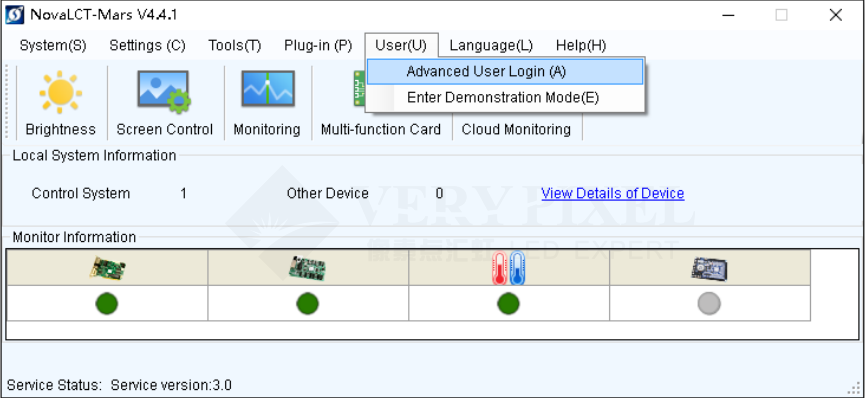

1.  Run NovaLCT-Mars, move the cursor over the  Advanced User Login (A) and click the button.

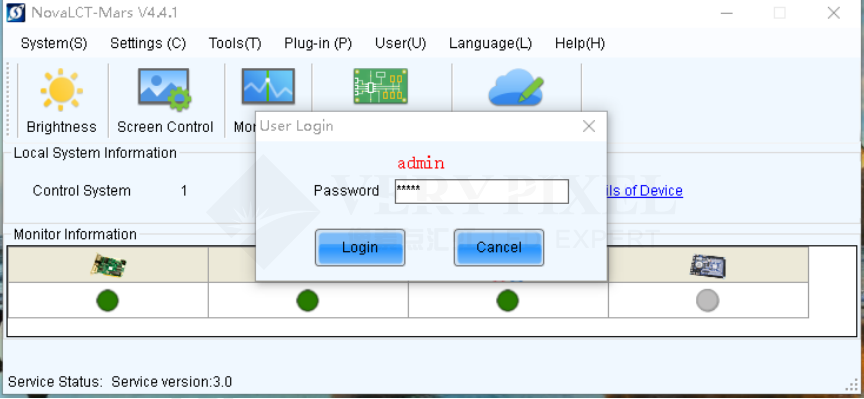

2. Login with the password “admin”.

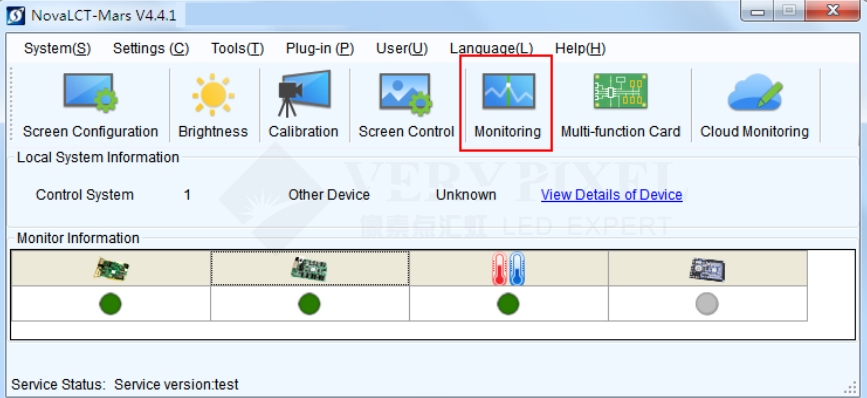

3. Click on the  Monitoring  button.

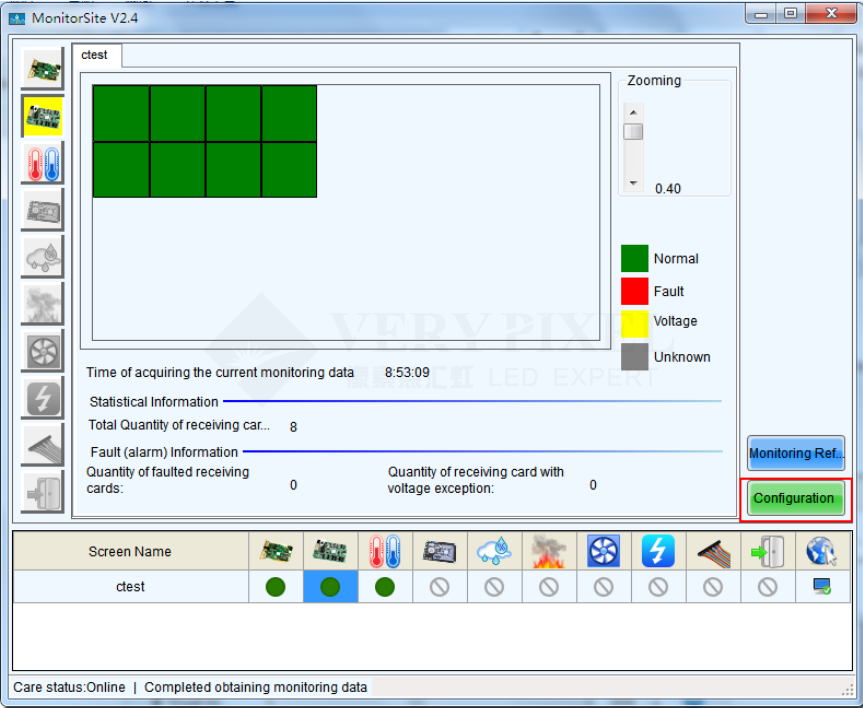

4. Click to select the  Configuration  button.

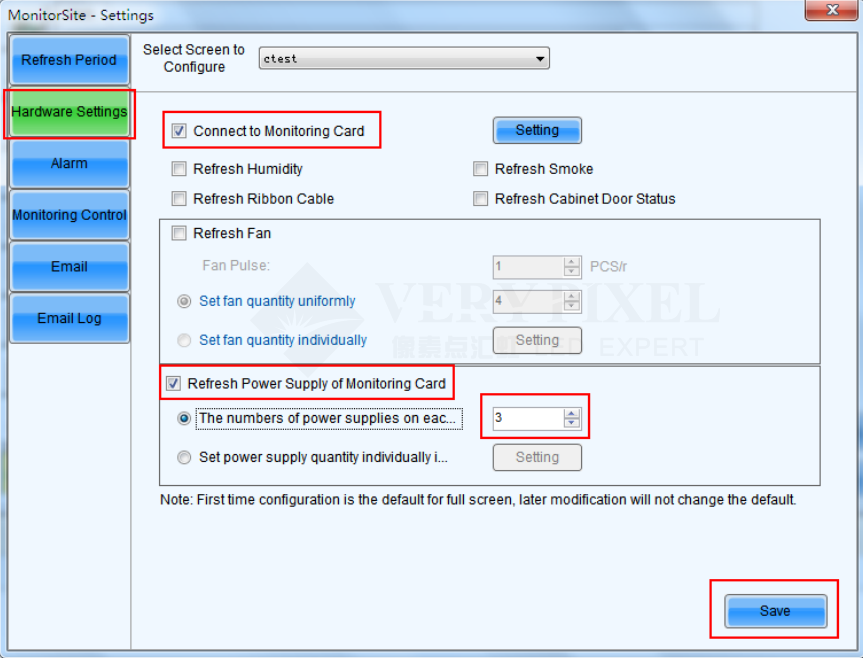

5. Choose the  Hardware Settings , and click the  Connect to Monitoring Card , and Refresh Power

   Supply of Monitoring Card.  Please also adjust the quantity of the power supply on one monitoring

   card. At last, click  Save.

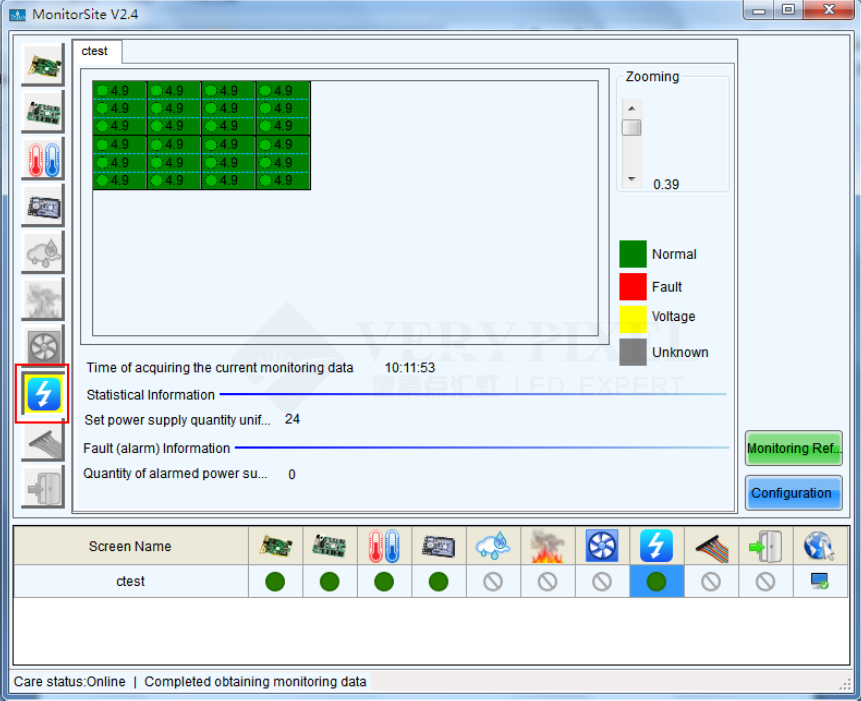

6. Then you can go back to the monitor interface, you can check the check the power supply status.
