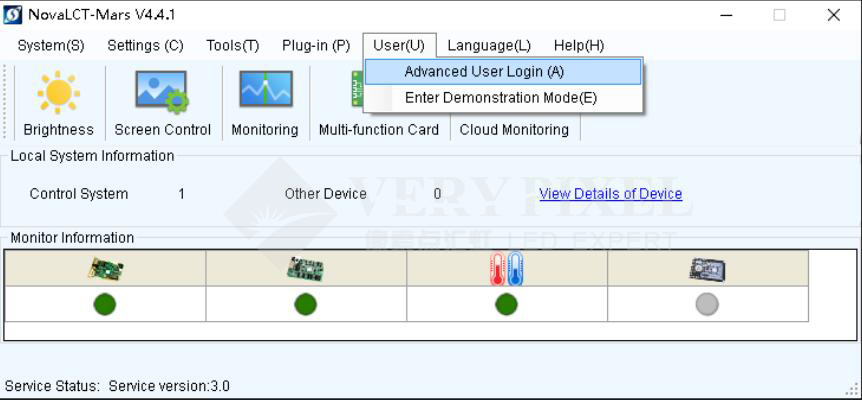

1. Run NovaLCT-Mars, move the cursor over the  Advanced User Login (A) and click the button.

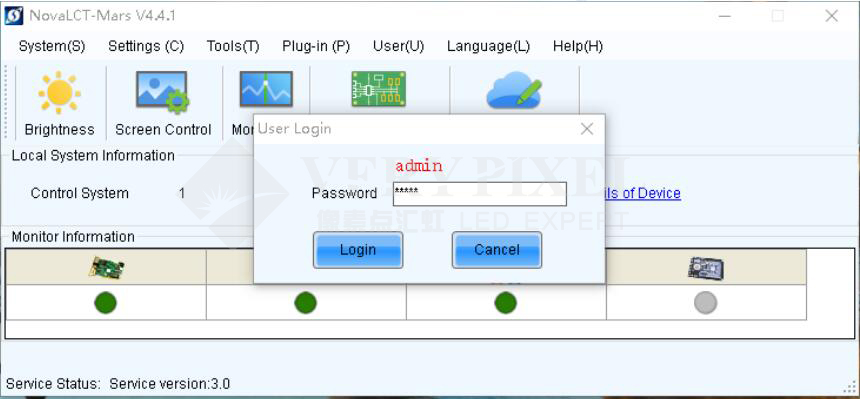

2. Login with the password “admin”.

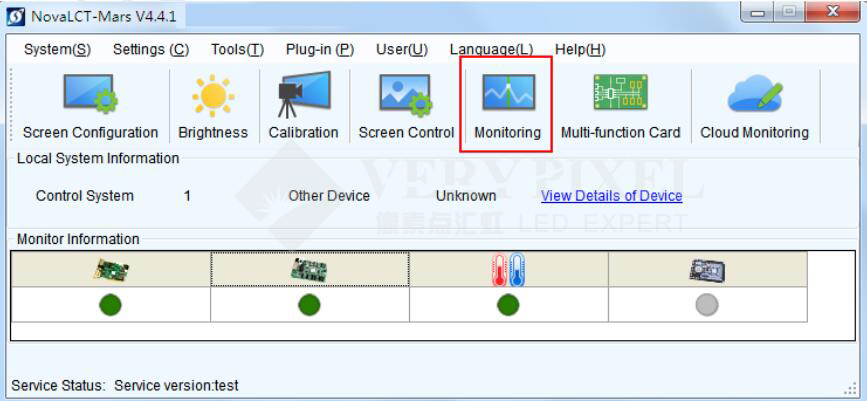

3. Click on the  Monitoring  button.

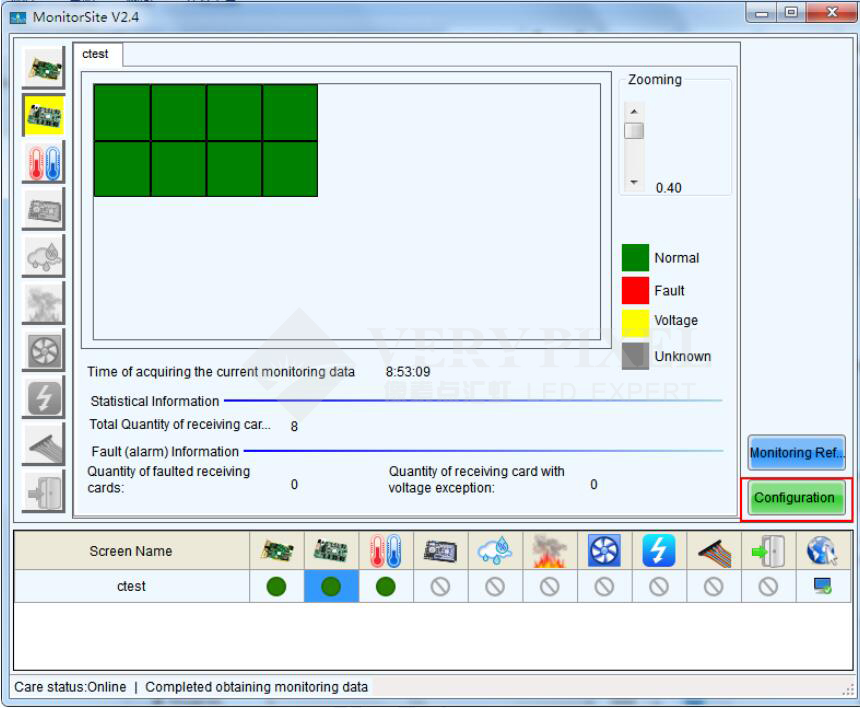

4. Click to select the  Configuration  button.

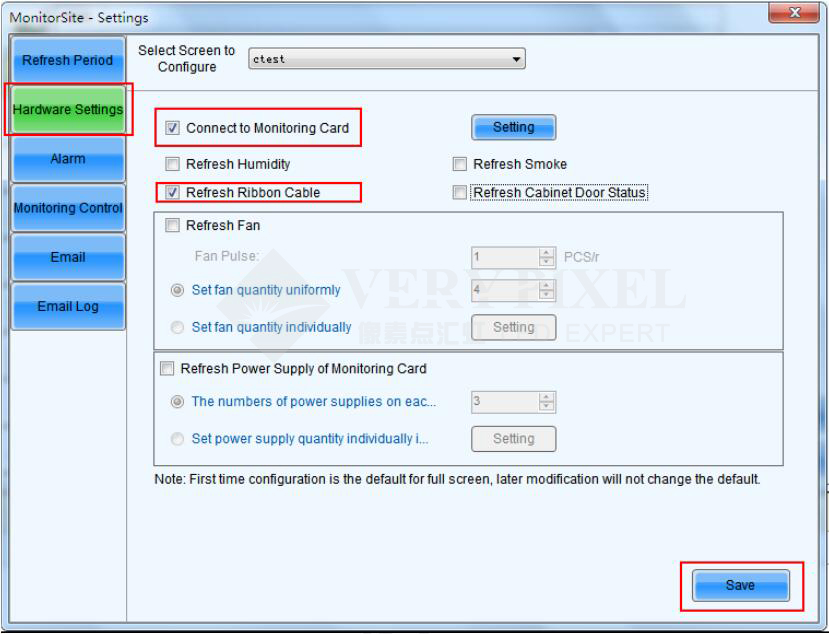

5. Choose the  Hardware Settings , and click the  Connect to Monitoring Card , and Refresh Ribbon Cable.  At last,

    click  Save

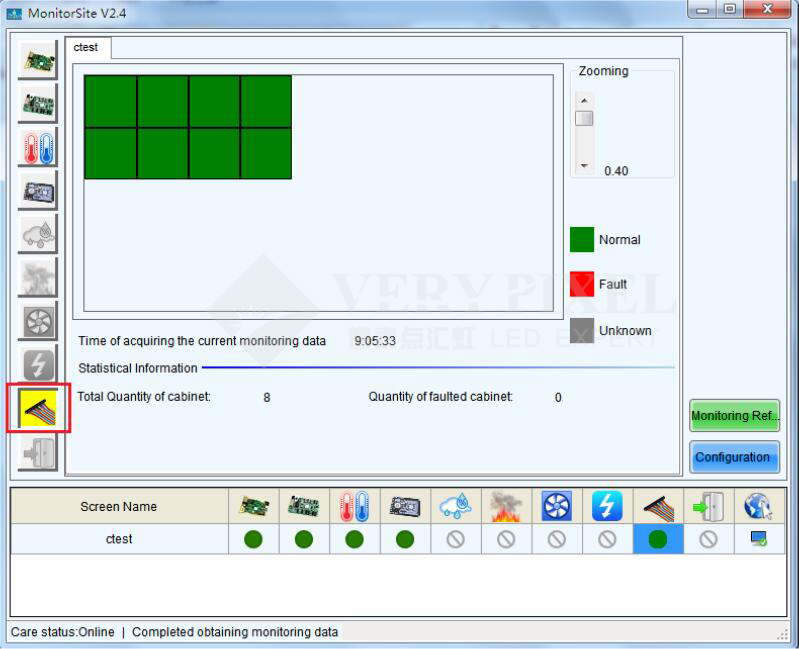

6. Then you can go back to the monitor interface, you can check the ribbon cable status.
