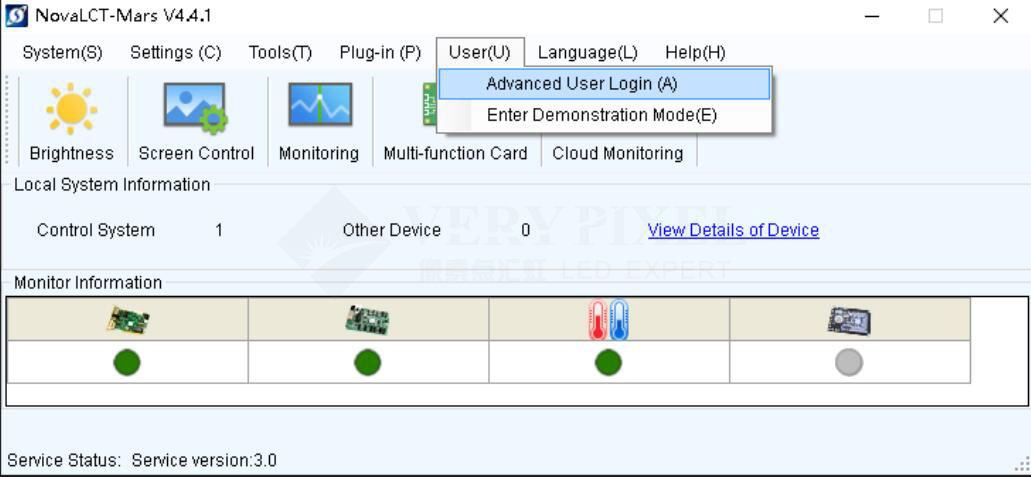

1.  Run NovaLCT-Mars, move the cursor over the  Advanced User Login (A) and click the button.

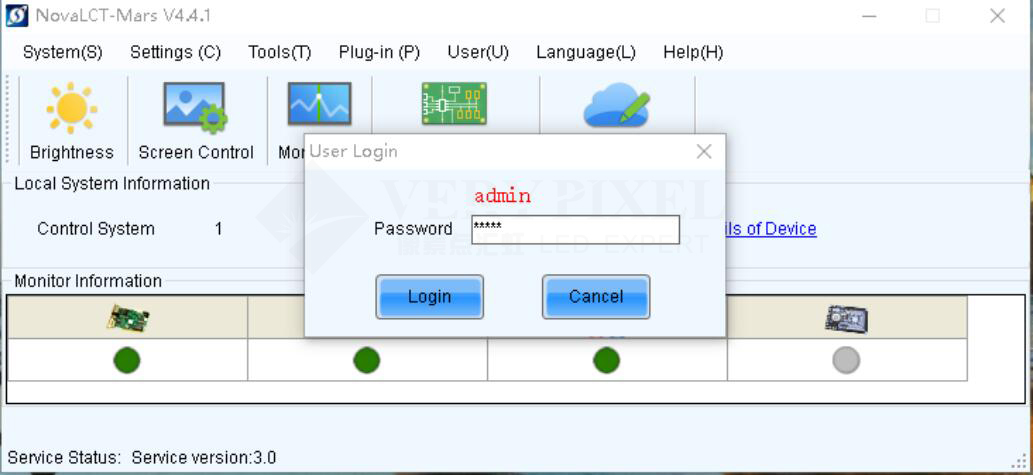

2. Login with the password “admin”.

3. Click on the  Monitoring  button.

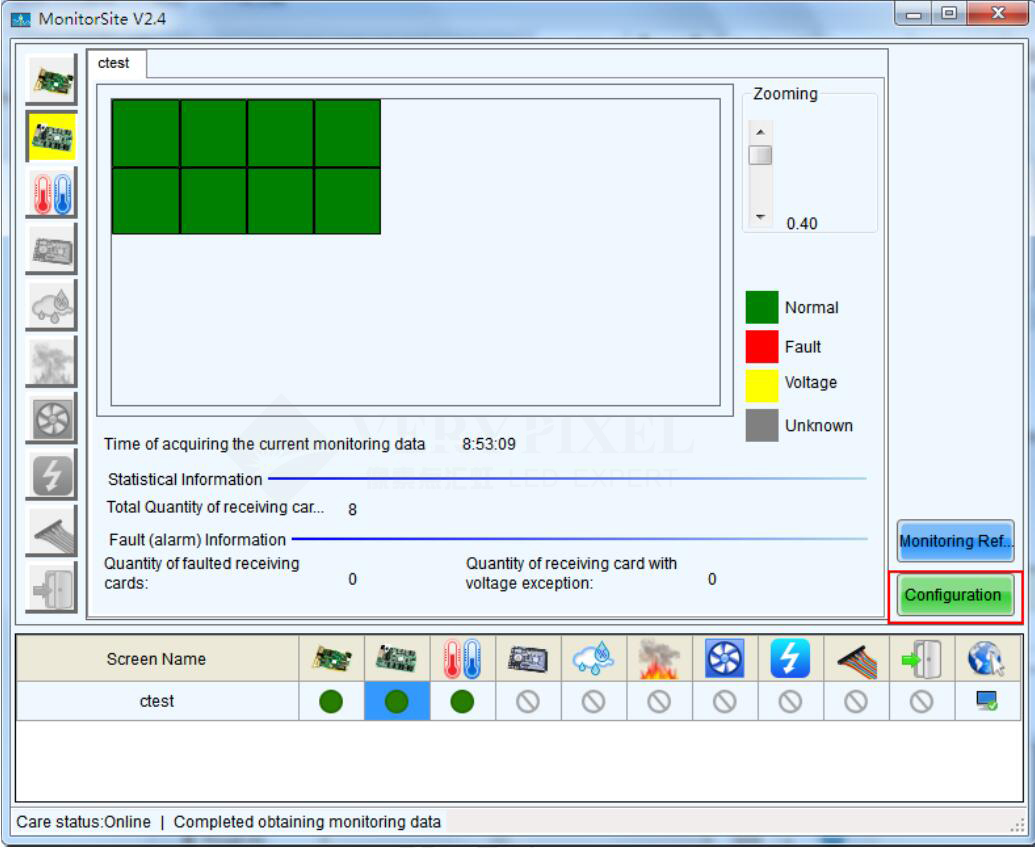

4. Click to select the  Configuration  button.

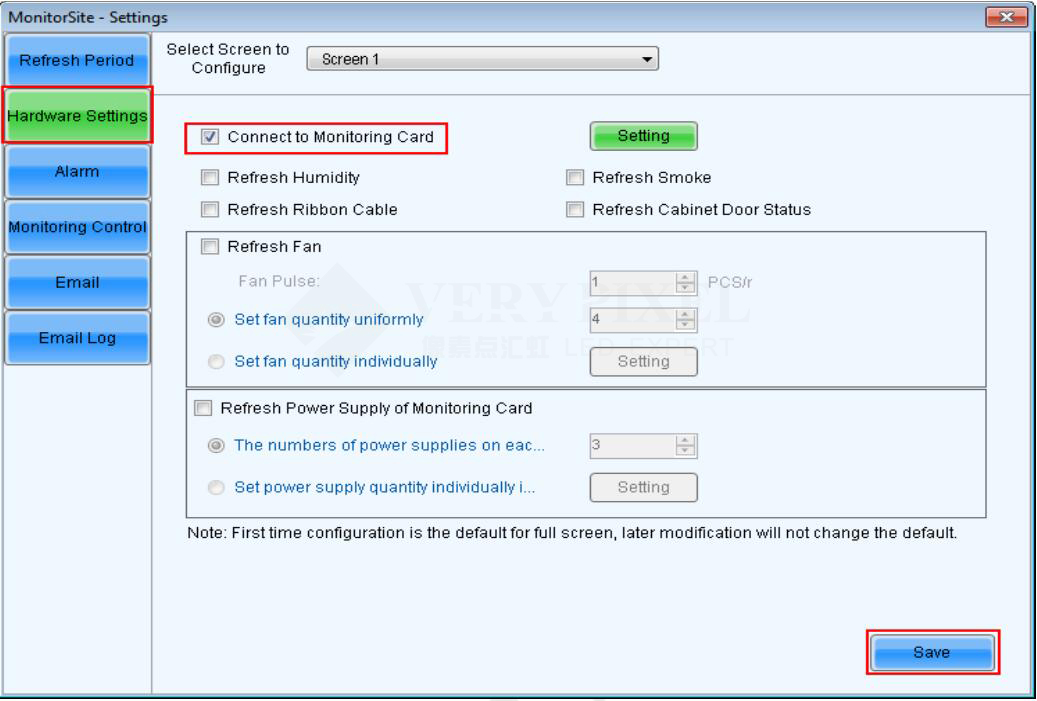

5. Choose the  Hardware Settings , and click the  Connect to Monitoring Card.At last, click  Save .

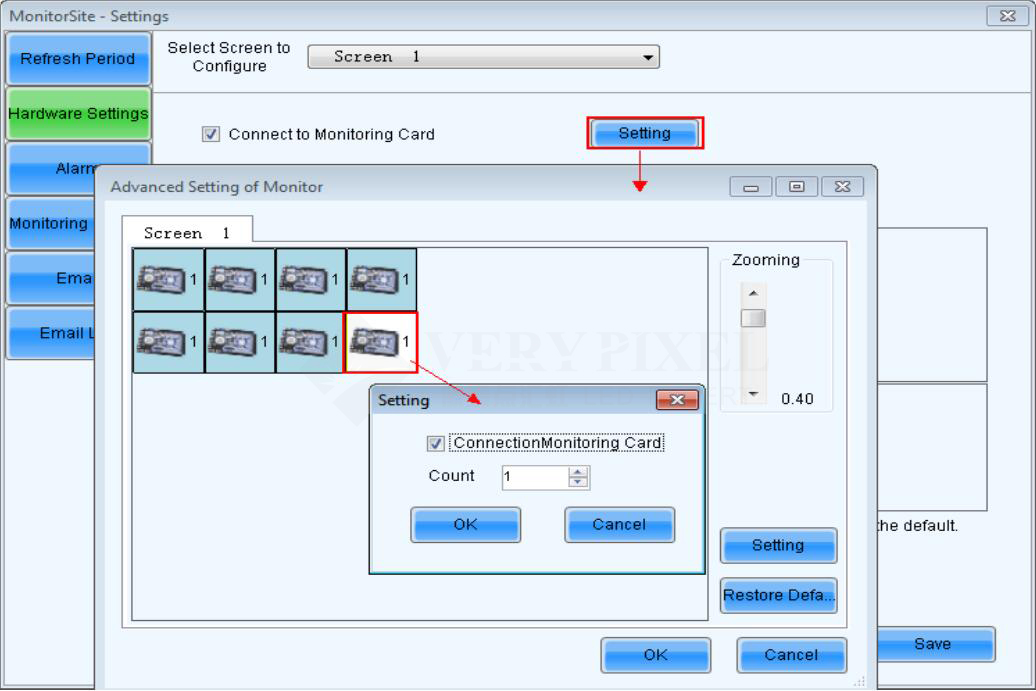

 6. If the quantity of Monitoring Card is different in each cabinet, please go to the  Setting , choose specific cabinet by

double clicking in topology, then set actual Monitoring quantity of each cabinet.

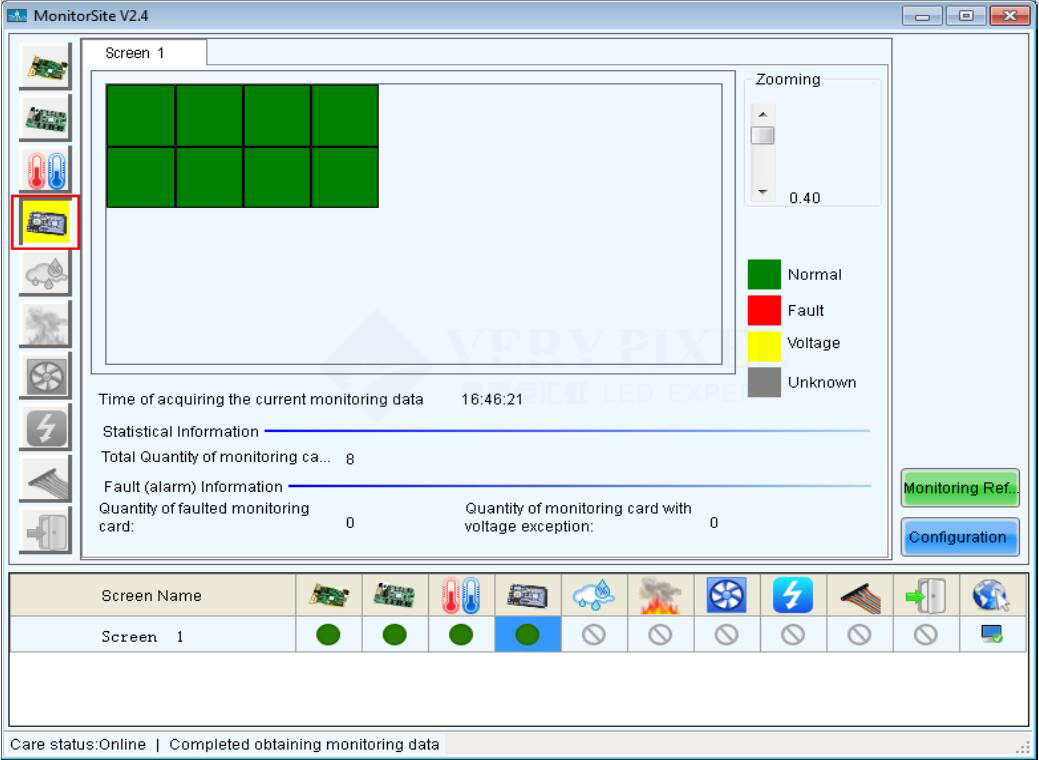

7. Then you can go back to the monitor interface, you can check the Monitoring Card status.

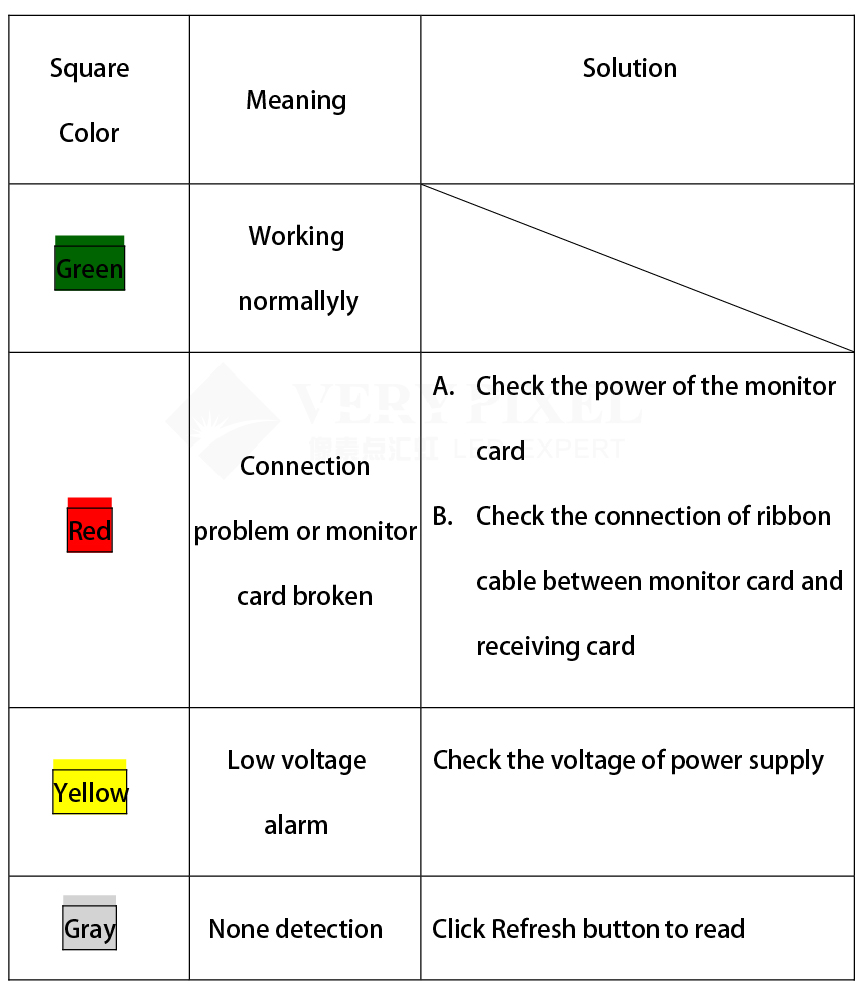

8. Status illustration

  Note: The voltage threshold value can be set in Monitor setting
