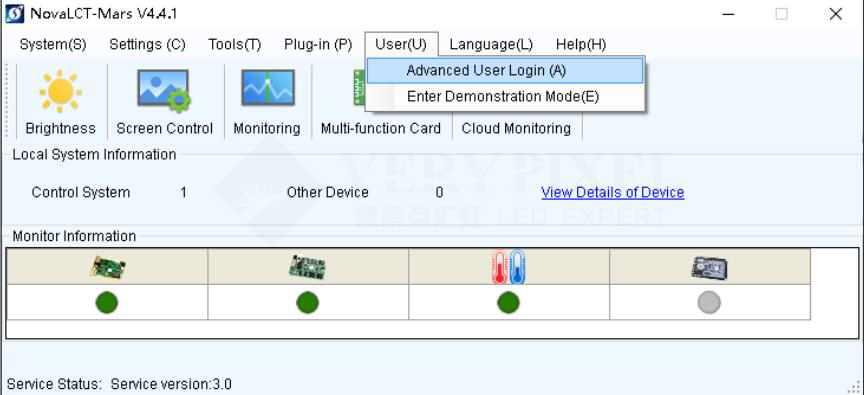

1.  Run NovaLCT-Mars, select  User(U)  in main menu and click  Advanced User Login (A) button.

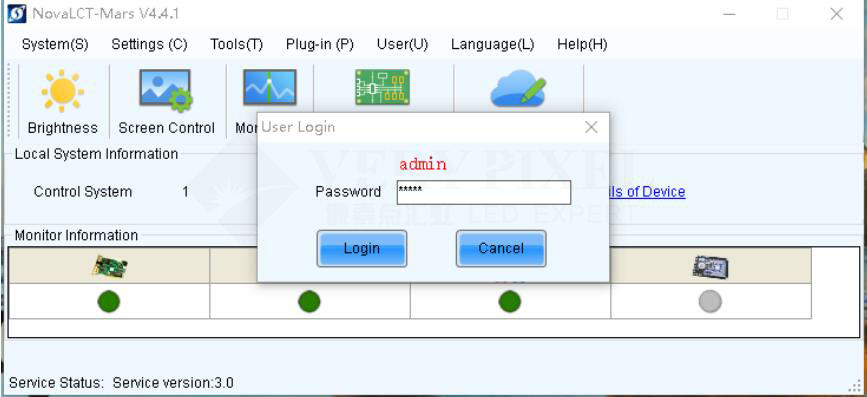

2. Login with the password “admin”.

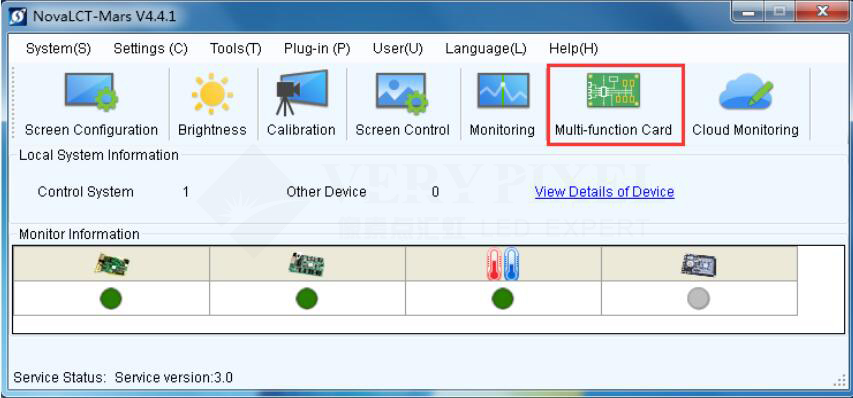

3. Click the  Multi-function Card button.

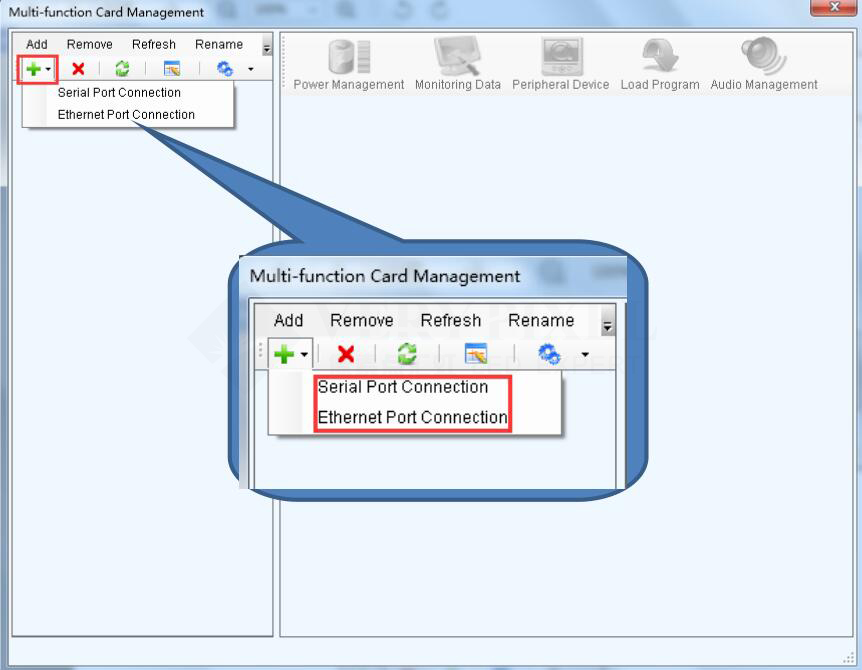

4. Enter into the Multi-function Card management window, click  Add  to add a new multifunction device such as MFN300

or MFN300B. (If the screen already configured this item and here a device should exist, skip and jump to step 5).

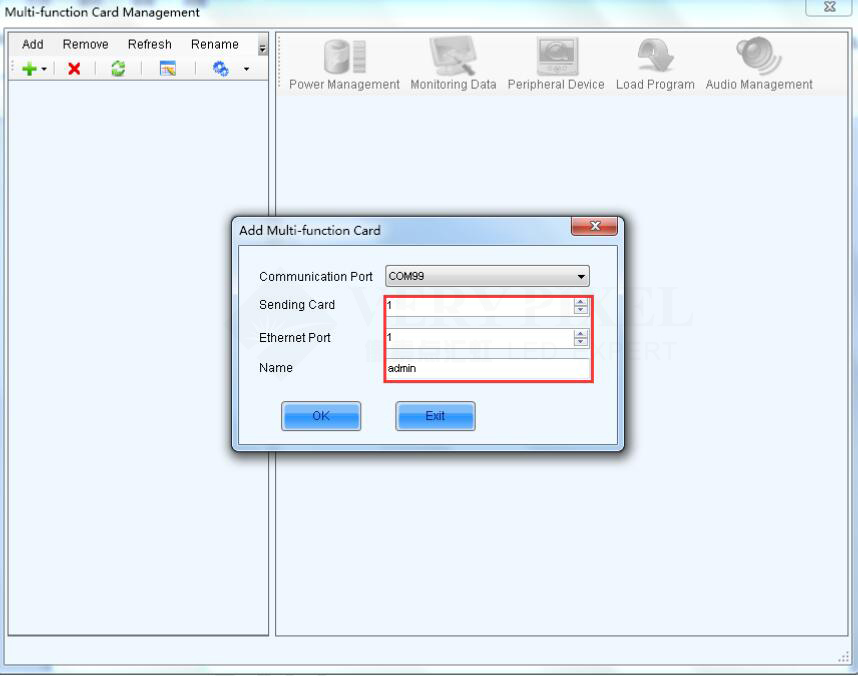

5. In the pop-up dialogue, input  Sending card number,  Ethernet Port number and  Name according to correct settings,

then click  OK .Then, a new MFN device should be added. Note: More than one MFN devices could be added into one screen.

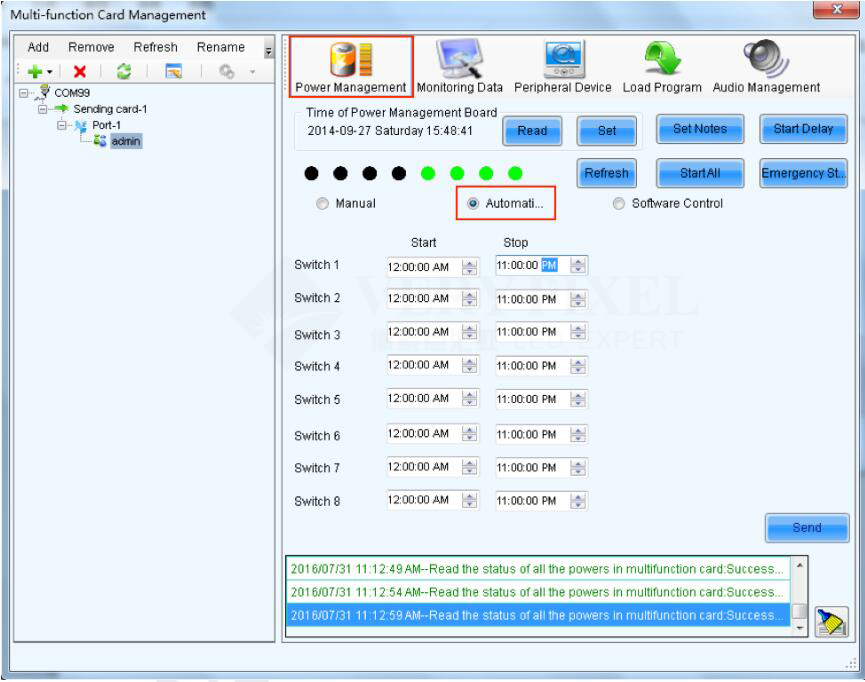

6. Select a MFN device which you intend to operate, click  Power Management icon in right part of the window. In this

window, select Automatic , and then could set start/stop time for each power supply. After done the settings, click  Send

to send the settings to particular MFN device.
